Switch brake lightsocket trailer towing — Mk1 Golf Lighting (1981)

Factory title: Volkswagen Golf (1981) - Brake, turn signal and taillights

Generation: Mk1 1981 (RDW) Group: Lighting Parts: 20 Primary OEM: 357 972 752, 000 979 133, N 101 397 01

Switch brake lightsocket trailer towing for the Volkswagen Golf Mk1 (1981): factory exploded diagram 224000 from the Volkswagen ETKA parts catalogue, group 19 Lighting, listing 20 OEM part numbers including 357 972 752, 000 979 133 and N 101 397 01. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 20 OEM part numbers across 20 numbered positions.

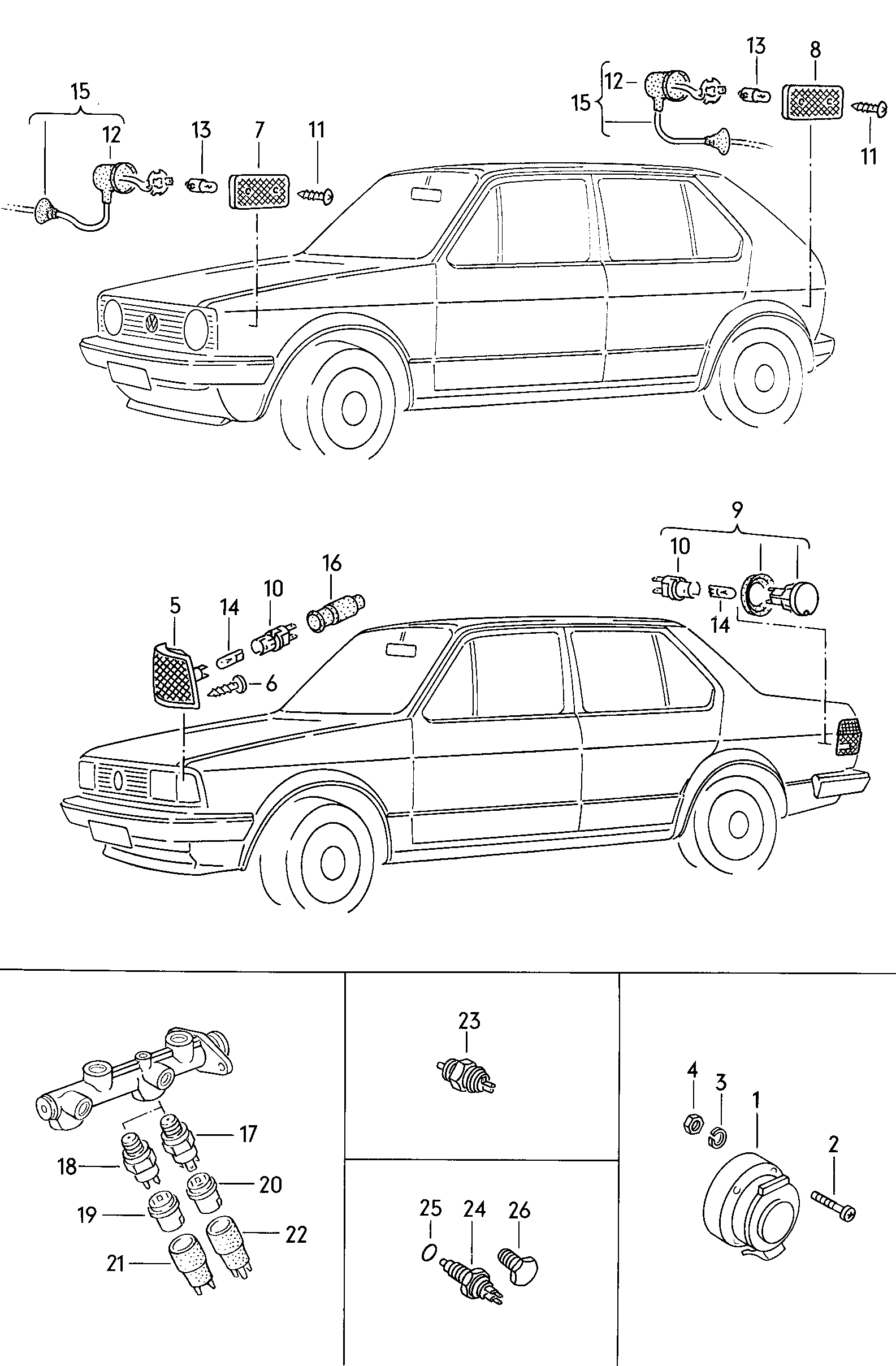

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
-	flat contact housing withgasket Possible single wire: 000 979 126000 979 126 A 000 979 217 1,01,02,5 000 979 126000 979 126 A 000 979 217	357 972 752
-	1 set single wires each with 2 contacts,in bag of 5'Order qty. 5'flat contact 1,02,8 1,02,8	000 979 133
(1)	socket for trailertowing	N 101 397 01
1	socket for trailertowing	443 945 505 A
17	brake light switch withwarning contact	113 945 515 G
18	switch - brake light	113 945 515 H
19	Flat contact housing	111 945 525
2	fillister hd. bolt M 5 X 30 M 5 X 30	N 014 156 5
2	fillister hd. bolt M 5 X 30 M 5 X 30	N 014 156 3
20	Flat contact housing	113 945 525
21	Protective sleeve	111 945 521
22	Protective sleeve	171 957 911
23	switch for reversing lightfor reversing lightfor manual gearbox	084 941 521
24	Switchfor reversing lightfor manual gearbox	020 941 521 A
24	switch for reversing lightfor reversing lightfor manual gearbox also use: 357 972 752000 979 133 357 972 752000 979 133	020 945 415 A
25	seal ringfor manual gearbox	020 301 244
26	sealing plugfor manual gearbox M 12 X 1,5 M 12 X 1,5	171 941 550
3	spring ring 5 5	N 012 005 3
4	Hexagon nut M 5 M 5	N 011 005 17
4	Hexagon nut M 5 M 5	N 011 005 4

From the Type 19 workshop

Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these lighting diagrams are drawn from.

Volkswagen OEM Parts Catalogues and Torque reference manuals! Get amongst it. Volkswagen OEM Parts Catalogues and Torque reference manuals from Type 19 Specialists — the printed editions the free catalogue pages are drawn from.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk1
Model years: 1981
Generation region: RDW
Generation code: 026
Factory group: 19 Lighting
Factory subgroup: 224000
