Turn signal indicator front — Mk1 Golf Lighting (1979 - 1980)

Factory title: Volkswagen Golf (1979 - 1980) - Turn signal indicator

Generation: Mk1 1979 - 1980 (RDW) Group: Lighting Parts: 26 Primary OEM: 161 971 976 A, 531 953 049 D, 531 953 050 C

Turn signal indicator front for the Volkswagen Golf Mk1 (1979 - 1980): factory exploded diagram 148000 from the Volkswagen ETKA parts catalogue, group 19 Lighting, listing 26 OEM part numbers including 161 971 976 A, 531 953 049 D and 531 953 050 C. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 26 OEM part numbers across 26 numbered positions.

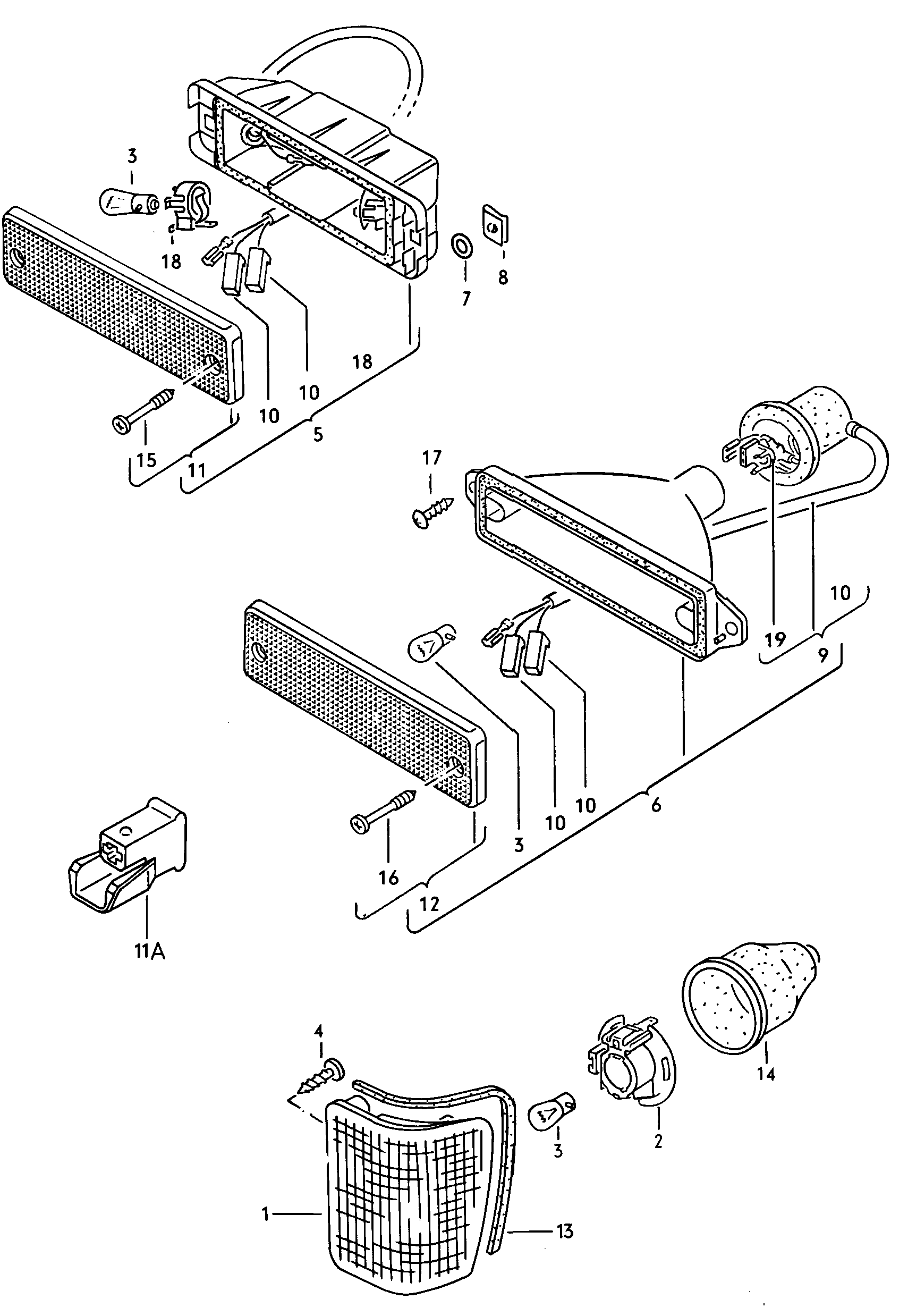

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
-
flat connector housing
 161 971 976 A
(1)
Flashing parking light "J..":SCIR.
 531 953 049 D
(1)
Turn signal indicator SCIR.
 531 953 050 C
(1)
Flashing parking light "J..":SCIR.
 531 953 050 D
(1)
Turn signal indicator JETTA
 161 953 081
(1)
Turn signal indicator JETTA
 161 953 082
(10)
Flat contact housing also use: 161 971 976 A
161 971 976 A
 161 971 990 A
(11)
Window ULO,RUHLA/FER GOLF
ULO,RUHLA/FER
 171 953 141 C
(13)
seal for turn signal SCIR.
 531 953 154
(3)
bulb P 21/5 W 12 V 21/5 W "J.."
P 21/5 W 12 V 21/5 W
 N 017 738 2
(4)
oval head panel screw 4,2 X 9,5 JETTA
4,2 X 9,5
 N 013 965 5
(4)
oval head panel screw 5,5 X 19 SCIR.
5,5 X 19
 N 013 974 1
(5)
Flashing parking light GOLF
 171 953 055 C
1
Turn signal indicator SCIR.
 531 953 049 C
11
Window HELLA/SIDELER/ZIZALA GOLF
HELLA/SIDELER/ZIZALA
 171 953 141
13
seal for turn signal SCIR.
 531 953 153
14
Cover cap SCIR.:JETTA
 171 953 175 A
15
oval head panel screw GOLF
 331 945 185
18
Bulb holder GOLF
 111 945 265
2
Bulb holder SCIR.;JETTA
 171 953 053
2A
Bulb holder "J..":SCIR.
 171 953 053 A
3
bulb P 21 W-12 V 21 W
P 21 W-12 V 21 W
 N 017 732 2
4
oval head panel screw 5,5 X 13 SCIR.
5,5 X 13
 N 013 973 4
5
Turn signal indicator GOLF
 171 953 055
7
Washer 5,5 GOLF
5,5
 N 011 540 2
8
Speed nut 3,5 X 16,75 X 11,3 GOLF
3,5 X 16,75 X 11,3
 N 015 438 1

From the Type 19 workshop

Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these lighting diagrams are drawn from.

Volkswagen OEM Parts Catalogues and Torque reference manuals! Get amongst it. Volkswagen OEM Parts Catalogues and Torque reference manuals from Type 19 Specialists — the printed editions the free catalogue pages are drawn from.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle
Volkswagen Golf Mk1
Model years
1979 - 1980
Generation region
RDW
Generation code
027
Factory group
19 Lighting
Factory subgroup
148000

Related factory diagrams

Other published lighting plates for the Mk1 Golf in this catalogue.

The complete Mk1 Golf parts catalogue in print

Questions about this diagram

Which VW part numbers are on the turn signal indicator front diagram for the Mk1 Golf?
This diagram lists 26 OEM part numbers for the Mk1 Golf. The first three are 161 971 976 A, 531 953 049 D and 531 953 050 C.
Which Mk1 Golf years and engines does this diagram cover?
This plate is from the Mk1 Golf 1979 - 1980 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.
Where is the complete Mk1 Golf factory parts catalogue?
The Mk1 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk1-hatch-full/. It carries every plate in this catalogue, not just this one.
