Which VW part numbers are on the twin headlamps f 53 b 200 001 scirocco gt gti gte diagram for the Mk1 Golf?

This diagram lists 20 OEM part numbers for the Mk1 Golf. The first three are 533 941 046, 533 941 653 A and 437 941 663 A.

Which Mk1 Golf years and engines does this diagram cover?

This plate is from the Mk1 Golf 1981 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.

Where is the complete Mk1 Golf factory parts catalogue?

The Mk1 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk1-hatch-full/. It carries every plate in this catalogue, not just this one.

Twin headlamps f 53 b 200 001 scirocco gt gti gte — Mk1 Golf Lighting (1981)

Factory title: Volkswagen Golf (1981) - Headlights

Generation: Mk1 1981 (RDW) Group: Lighting Parts: 22 Primary OEM: 533 941 046, 533 941 653 A, 437 941 663 A

Twin headlamps f 53 b 200 001 scirocco gt gti gte for the Volkswagen Golf Mk1 (1981): factory exploded diagram 218010 from the Volkswagen ETKA parts catalogue, group 19 Lighting, listing 20 OEM part numbers across 22 catalogued positions including 533 941 046, 533 941 653 A and 437 941 663 A. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 20 OEM part numbers across 22 numbered positions.

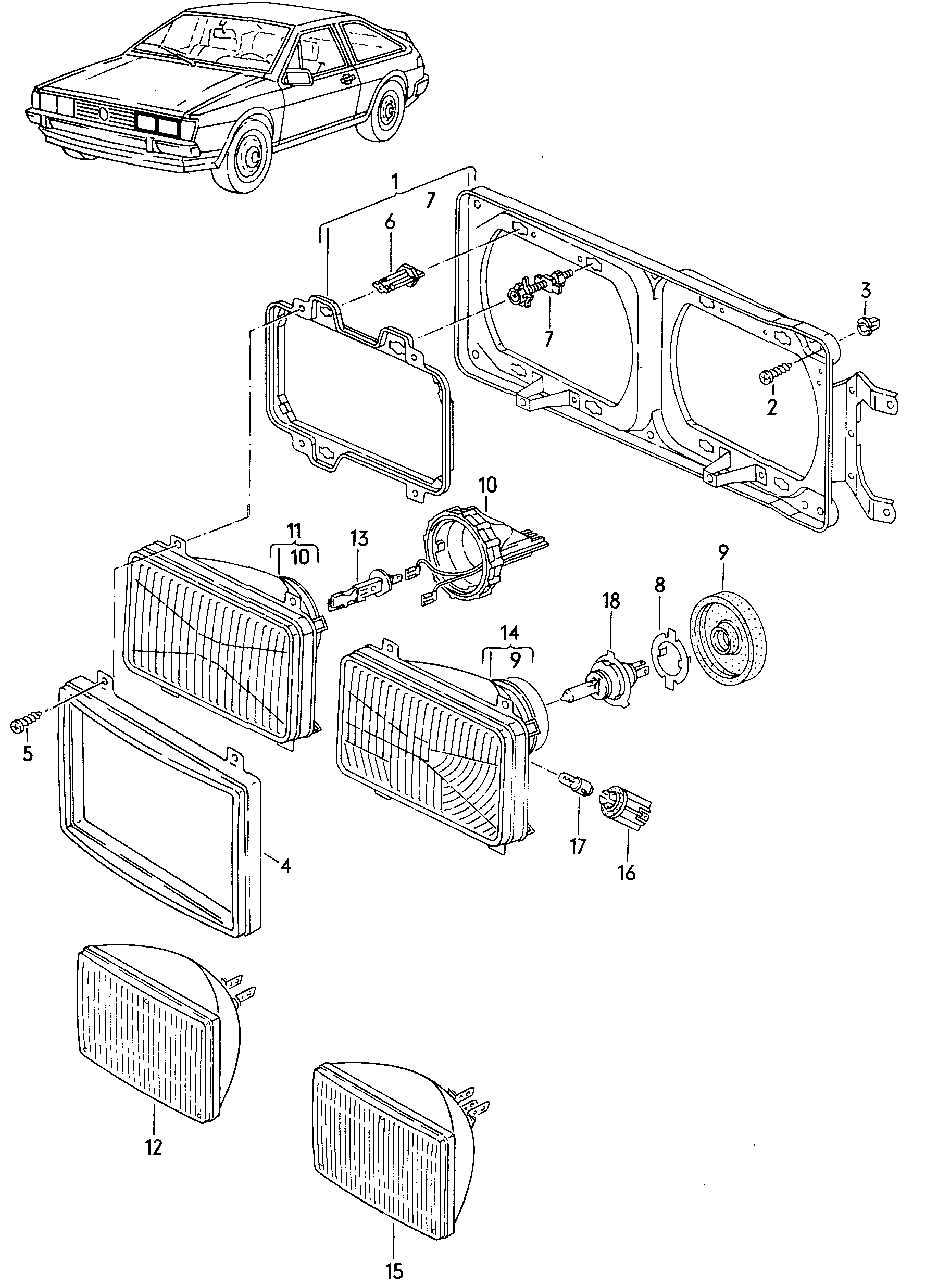

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	twin headlamps F 53-B-200 001>> SCIROCCO GT,GTI,GTE	—
(1)	retaining frame	533 941 046
(11)	Headlight insert (halogen)main beam light, yellow light "F.."	533 941 653 A
(14)	Headlight insertdipped beam, yellow light(right-hand traffic only) "F.."	437 941 663 A
1	retaining frame	533 941 045
10	Cap	533 941 607
11	Headlight insert (halogen)main beam light	533 941 653
13	Halogen bulb H 1-12 V-55 W H 1-12 V-55 W	N 017 761 2
14	Headlight insert,dipped beam(right-hand traffic only)	437 941 663
16	Bulb holder	533 941 669
17	bulb T 4 W-12 V 4 W T 4 W-12 V 4 W	N 017 717 2
18	Halogen bulb H 4-12 V-60/55 W H 4-12 V-60/55 W	N 017 763 2
2	oval head panel screw ST 4,2 X 13-C ST 4,2 X 13-C	N 013 966 12
2	oval head panel screw 4,2 X 13 4,2 X 13	N 013 966 26
3	insert nut	811 807 577 C
4	Retaining frame	161 941 047
4	No longer available	—
5	oval head panel screw 3,9 X 9,5 3,9 X 9,5	N 013 960 5
6	Joint	113 941 133
7	adjusting screw	161 941 141 B
8	spring forhalogen bulb	111 941 160 A
9	sealing cap	111 941 605 A

From the Type 19 workshop

Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these lighting diagrams are drawn from.

Volkswagen OEM Parts Catalogues and Torque reference manuals! Get amongst it. Volkswagen OEM Parts Catalogues and Torque reference manuals from Type 19 Specialists — the printed editions the free catalogue pages are drawn from.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk1
Model years: 1981
Generation region: RDW
Generation code: 026
Variant tags: petrol_8v_gti_or_gl
Factory group: 19 Lighting
Factory subgroup: 218010
