Harness electric window scir — Mk1 Golf Wiring Looms (1982 - 1983)

Factory title: Volkswagen Golf (1982 - 1984) - Rear wiring set

Generation: Mk1 1982 - 1983 (RDW) Group: Wiring looms Parts: 21 Primary OEM: 161 971 989 C, 161 971 976 A, 533 971 160 A

Harness electric window scir for the Volkswagen Golf Mk1 (1982 - 1983): factory exploded diagram 249000 from the Volkswagen ETKA parts catalogue, group 06 Wiring looms, listing 18 OEM part numbers across 21 catalogued positions including 161 971 989 C, 161 971 976 A and 533 971 160 A. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 18 OEM part numbers across 21 numbered positions.

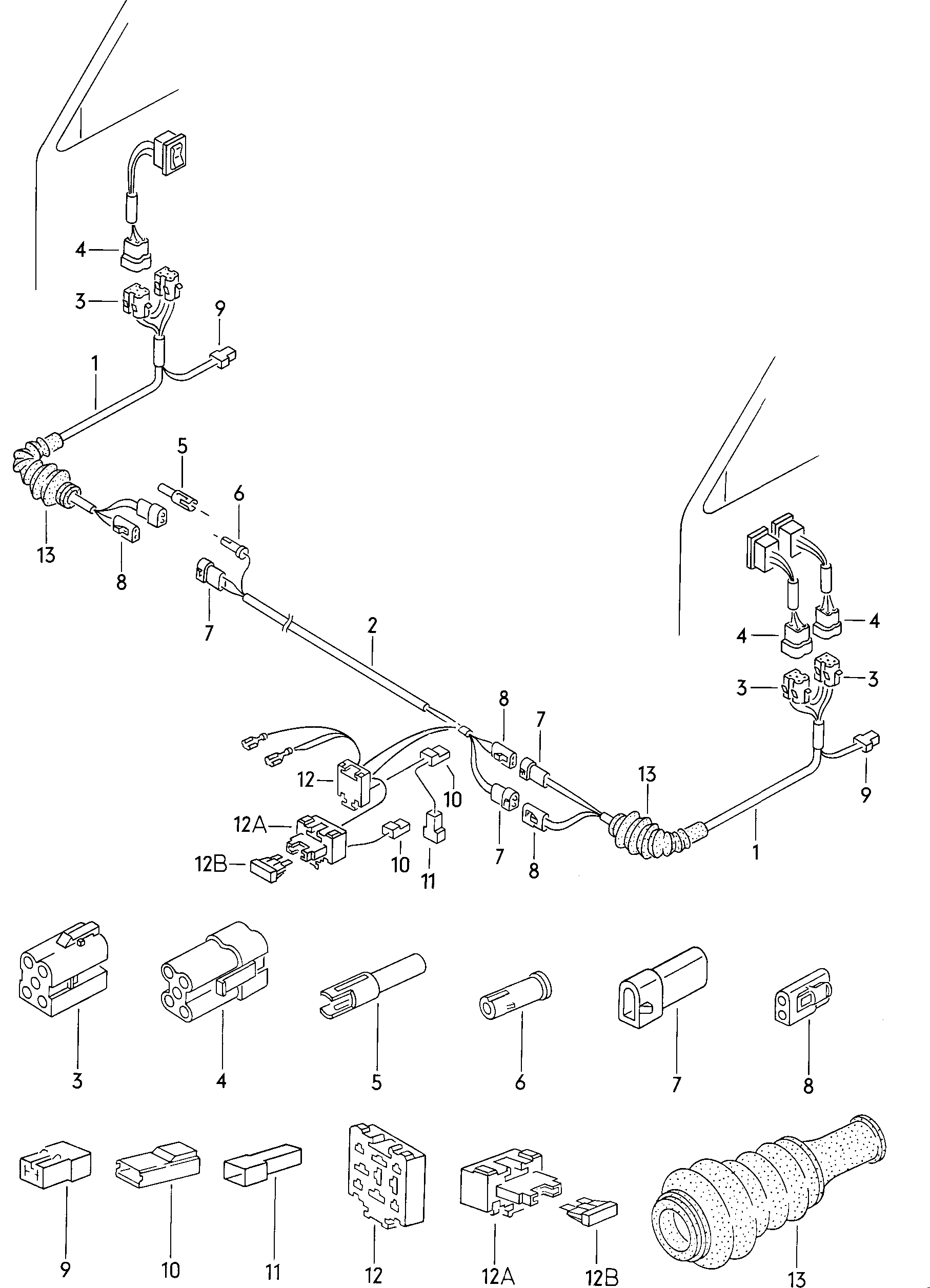

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	harness for electric window SCIR.	—
-	Flat contact housing	161 971 989 C
(11)	flat connector housing also use: 161 971 990 A 161 971 990 A	161 971 976 A
(2)	harness for electric window use if required: 161 971 976 A 161 971 976 A	533 971 160 A
(2)	Discont. / replace:	—
(5)	flat connector housing also use: 161 971 990 A 161 971 990 A	161 971 976 A
(6)	Flat contact housing also use: 161 971 976 A 161 971 976 A	161 971 990 A
(9)	flat connector housing also use: 161 971 989 C 161 971 989 C	161 971 988 C
1	harness for electric window also use: 161 971 976 A 161 971 990 A 161 971 976 A 161 971 990 A	533 971 159
10	Flat contact housing 6,3 6,3	111 971 921 B
12	relay plate	135 937 501 A
12A	fuse box forflat fuses F 53-D-000 001>>	1H0 937 530
12A	fuse box forflat fuses F 53-D-000 001>>	161 937 501
12B	flat fuse 19/2 x 5 F 53-D-000 001>>	N 017 131 15
12B	flat fuse 19/2 x 5 F 53-D-000 001>>	N 017 131 9
13	Bellows 30/23/30 30/23/30	433 959 845
2	Discont. / replace:	—
3	rd. connector sleeve housing 3,5 3,5	533 972 523
4	round connector housing 3,5 3,5	533 972 524
7	round connector housing 3,5 3,5	811 972 575
8	rd. connector sleeve housing 3,5 3,5	811 972 577
