Harness lambda probe transistorized ignition system wiring — Mk1 Golf Wiring Looms (1982 - 1983)

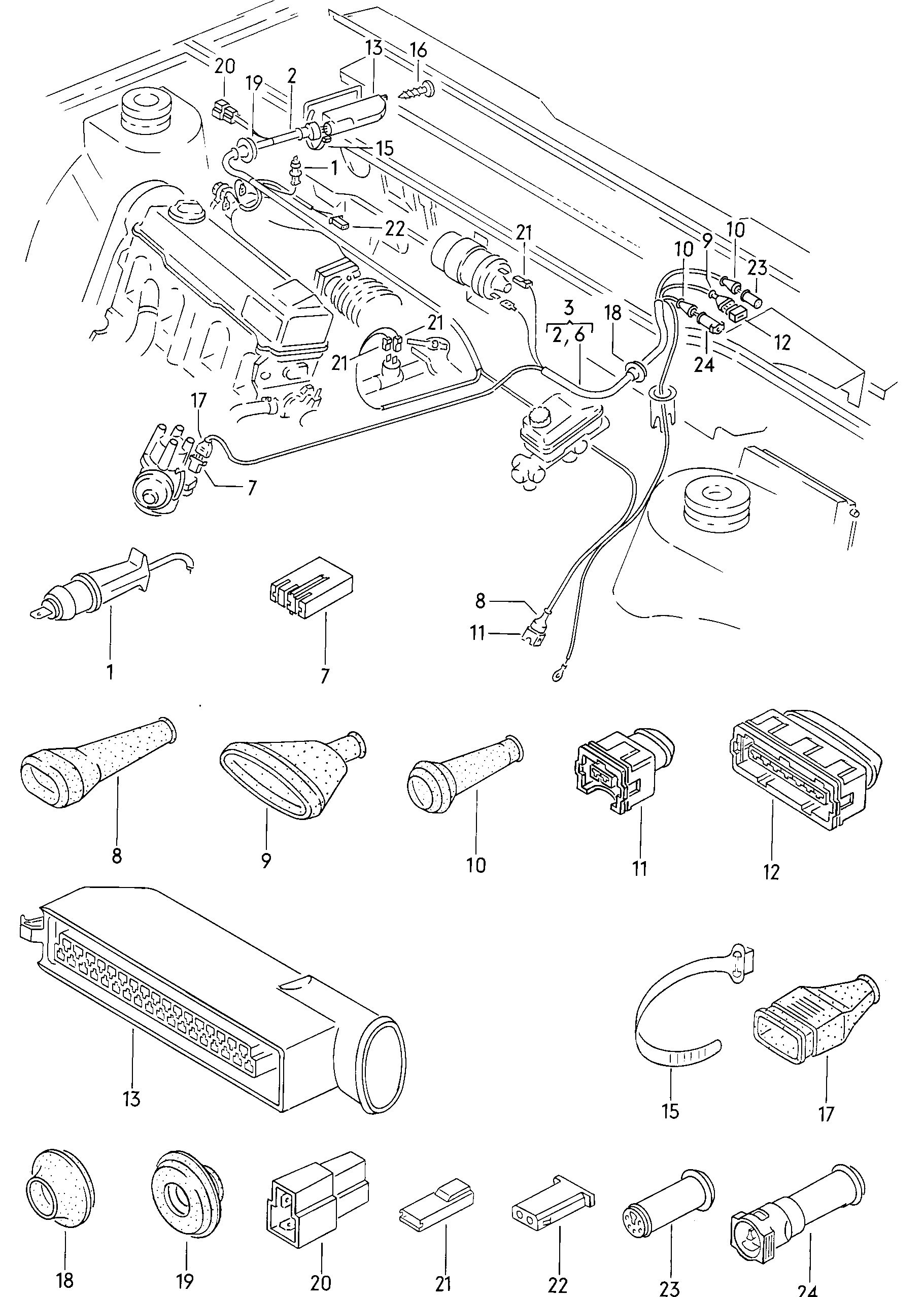

Factory title: Volkswagen Golf (1982 - 1984) - Rear wiring set
Harness lambda probe transistorized ignition system wiring for the Volkswagen Golf Mk1 (1982 - 1983): factory exploded diagram 247000 from the Volkswagen ETKA parts catalogue, group 06 Wiring looms, listing 24 OEM part numbers across 28 catalogued positions including 443 971 108 A, 191 906 102 and 037 906 240. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.
Parts on this diagram
This Mk1 Golf plate lists 24 OEM part numbers across 28 numbered positions.
| № | Description | Part number |
|---|---|---|
| harness for lambda probe andtransistorized ignition system Wiring set for cycle relay K-JETRONIC | — | |
| (1) | harness for lambda probe | 443 971 108 A |
| (10) | Protective cap | 191 906 102 |
| (11) | flat contact housing withgasket also use: 357 972 741 A 357 972 741 A | 037 906 240 |
| (17) | Protective cap | 281 919 141 A |
| (18) | Grommet 28/6,4 28/6,4 | 357 957 861 |
| (18) | Grommet 33/9 33/9 | 021 971 907 A |
| (20) | Discont. / replace: 161 971 988 C 161 971 989 C 161 971 988 C 161 971 989 C | — |
| (23) | rd. connector sleeve housing | 171 906 232 A |
| (24) | round connector housing | 171 906 234 A |
| (6) | wiring harness fortransistorized ignition system F >> 15-C-050 000 F >> 16-C-999 999 F >> 17-C-999 999 F >> 53-C-100 000 | 533 971 131 A |
| (6) | No longer available F >> 15-C-050 000 F >> 16-C-999 999 F >> 17-C-999 999 F >> 53-C-100 000 | — |
| (6) | wiring harness fortransistorized ignition system F ..-D-000 001>> | 192 971 131 |
| (8) | Grommet SCIR. | 810 972 525 |
| (9) | Protective cap | 037 906 102 A |
| 12 | Flat contact housing | 071 906 233 |
| 13 | flat contact housing withgasket | 191 906 370 A |
| 13 | Cover cap | 022 906 239 |
| 15 | Cable ties 4,6 X 200 4,6 X 200 | N 906 661 01 |
| 15 | Cable ties 175 175 | N 900 603 01 |
| 16 | oval head panel screw B 2,9 X 9,5 B 2,9 X 9,5 | N 013 953 2 |
| 19 | Grommet 33/9 33/9 | 021 971 907 A |
| 2 | No longer available "J..":GOLF,JETTA | — |
| 2 | harness for lambda probe "J..":GOLF,JETTA | 155 971 129 |
| 21 | Flat contact housing | 111 971 921 B |
| 22 | rd. connector sleeve housing | 171 971 999 A |
| 7 | Flat contact housing | 211 905 327 |
| 8 | Protective cap 39 X 7,5 GOLF,JETTA 39 X 7,5 | 022 906 102 |
From the Type 19 workshop
Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these wiring looms diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk1
- Model years
- 1982 - 1983
- Generation region
- RDW
- Generation code
- 007
- Factory group
- 06 Wiring looms
- Factory subgroup
- 247000
Related factory diagrams
Other published wiring looms plates for the Mk1 Golf in this catalogue.
The complete Mk1 Golf parts catalogue in print
Questions about this diagram
- Which VW part numbers are on the harness lambda probe transistorized ignition system wiring diagram for the Mk1 Golf?
- This diagram lists 24 OEM part numbers for the Mk1 Golf. The first three are 443 971 108 A, 191 906 102 and 037 906 240.
- Which Mk1 Golf years and engines does this diagram cover?
- This plate is from the Mk1 Golf 1982 - 1983 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.
- Where is the complete Mk1 Golf factory parts catalogue?
- The Mk1 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk1-hatch-full/. It carries every plate in this catalogue, not just this one.
