Harness lambda probe transistorized ignition system — Mk1 Golf Wiring Looms (1981)

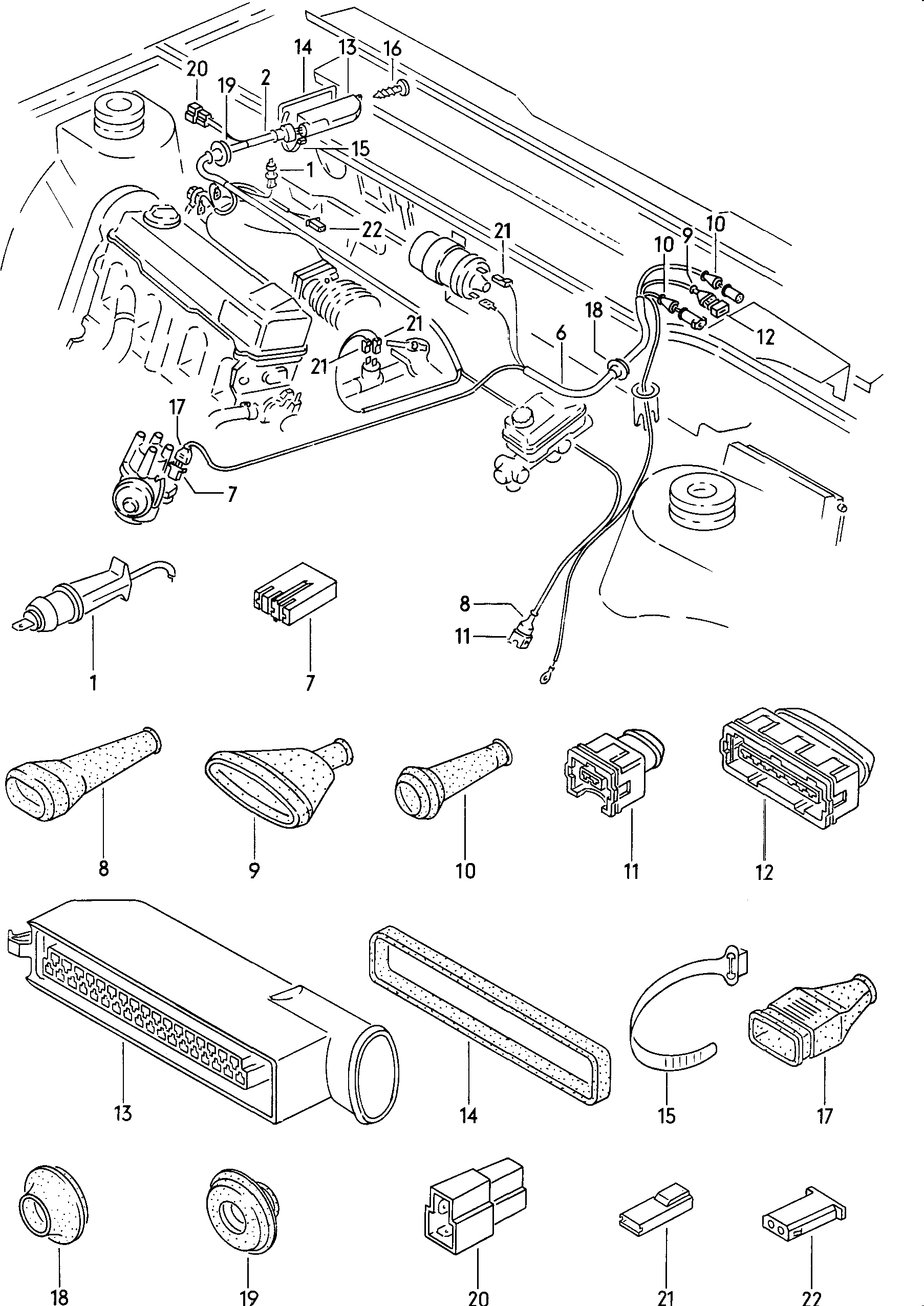

Factory title: Volkswagen Golf (1981) - Rear wiring set
Harness lambda probe transistorized ignition system for the Volkswagen Golf Mk1 (1981): factory exploded diagram 247000 from the Volkswagen ETKA parts catalogue, group 06 Wiring looms, listing 25 OEM part numbers across 28 catalogued positions including 533 971 130 A, 192 971 131 and 533 971 131 A. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.
Parts on this diagram
This Mk1 Golf plate lists 25 OEM part numbers across 28 numbered positions.
| № | Description | Part number |
|---|---|---|
| - | No longer available F 53-B-200 001>> SCIR. | — |
| - | harness for lambda probe andtransistorized ignition system F 53-B-200 001>> SCIR. | 533 971 130 A |
| - | wiring harness fortransistorized ignition system also use: 211 905 327281 919 141 A 211 905 327281 919 141 A | 192 971 131 |
| - | wiring harness fortransistorized ignition system F 53-B-200 001>> SCIR. | 533 971 131 A |
| - | harness for lambda probe andtransistorized ignition system F >> 53-B-050 000 "J..":SCIR. | 531 971 130 A |
| (1) | harness for lambda probe | 443 971 108 A |
| (10) | Protective cap | 191 906 102 |
| (11) | flat contact housing withgasket also use: 357 972 741 A 357 972 741 A | 037 906 240 |
| (17) | Protective cap | 281 919 141 A |
| (18) | Grommet 28/6,4 28/6,4 | 357 957 861 |
| (20) | flat connector housing also use: 161 971 989 C 161 971 989 C | 161 971 988 C |
| (9) | Protective cap | 037 906 102 A |
| 12 | Flat contact housing | 071 906 233 |
| 13 | Cover cap | 022 906 239 |
| 13 | flat contact housing withgasket | 191 906 370 A |
| 14 | No longer available | — |
| 15 | Cable ties 6,5 X 175 6,5 X 175 | N 900 603 01 |
| 15 | Cable ties 4,6 X 200 4,6 X 200 | N 906 661 01 |
| 16 | oval head panel screw 2,9 X 9,5 2,9 X 9,5 | N 013 953 7 |
| 16 | oval head panel screw B 2,9 X 9,5 B 2,9 X 9,5 | N 013 953 2 |
| 19 | Grommet 33/9 33/9 | 021 971 907 A |
| 2 | harness for lambda probe "J..":GOLF,JETTA | 155 971 129 |
| 21 | Flat contact housing | 111 971 921 B |
| 22 | rd. connector sleeve housing | 171 971 999 A |
| 6 | No longer available F >> 53-B-050 000 SCIR. | — |
| 6 | wiring harness fortransistorized ignition system F >> 53-B-050 000 SCIR. | 531 971 131 |
| 7 | Flat contact housing | 211 905 327 |
| 8 | Protective cap 39 X 7,5 39 X 7,5 | 022 906 102 |
From the Type 19 workshop
Volkswagen Golf Mk1 work in the Type 19 workshop — the same cars these wiring looms diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk1
- Model years
- 1981
- Generation region
- RDW
- Generation code
- 026
- Factory group
- 06 Wiring looms
- Factory subgroup
- 247000
