Wiring harness seat belt warning system golf jetta — Mk1 Golf Wiring Looms (1982 - 1983)

Factory title: Volkswagen Golf (1982 - 1984) - Rear wiring set

Generation: Mk1 1982 - 1983 (RDW) Group: Wiring looms Parts: 10 Primary OEM: 161 971 990 A, 161 971 976 A, 171 971 998 A

Wiring harness seat belt warning system golf jetta for the Volkswagen Golf Mk1 (1982 - 1983): factory exploded diagram 246000 from the Volkswagen ETKA parts catalogue, group 06 Wiring looms, listing 8 OEM part numbers across 10 catalogued positions including 161 971 990 A, 161 971 976 A and 171 971 998 A. Published by Type 19 Specialists; the complete Mk1 Golf catalogue is in print as the Mk1 Golf Master Parts Catalogue.

Parts on this diagram

This Mk1 Golf plate lists 8 OEM part numbers across 10 numbered positions.

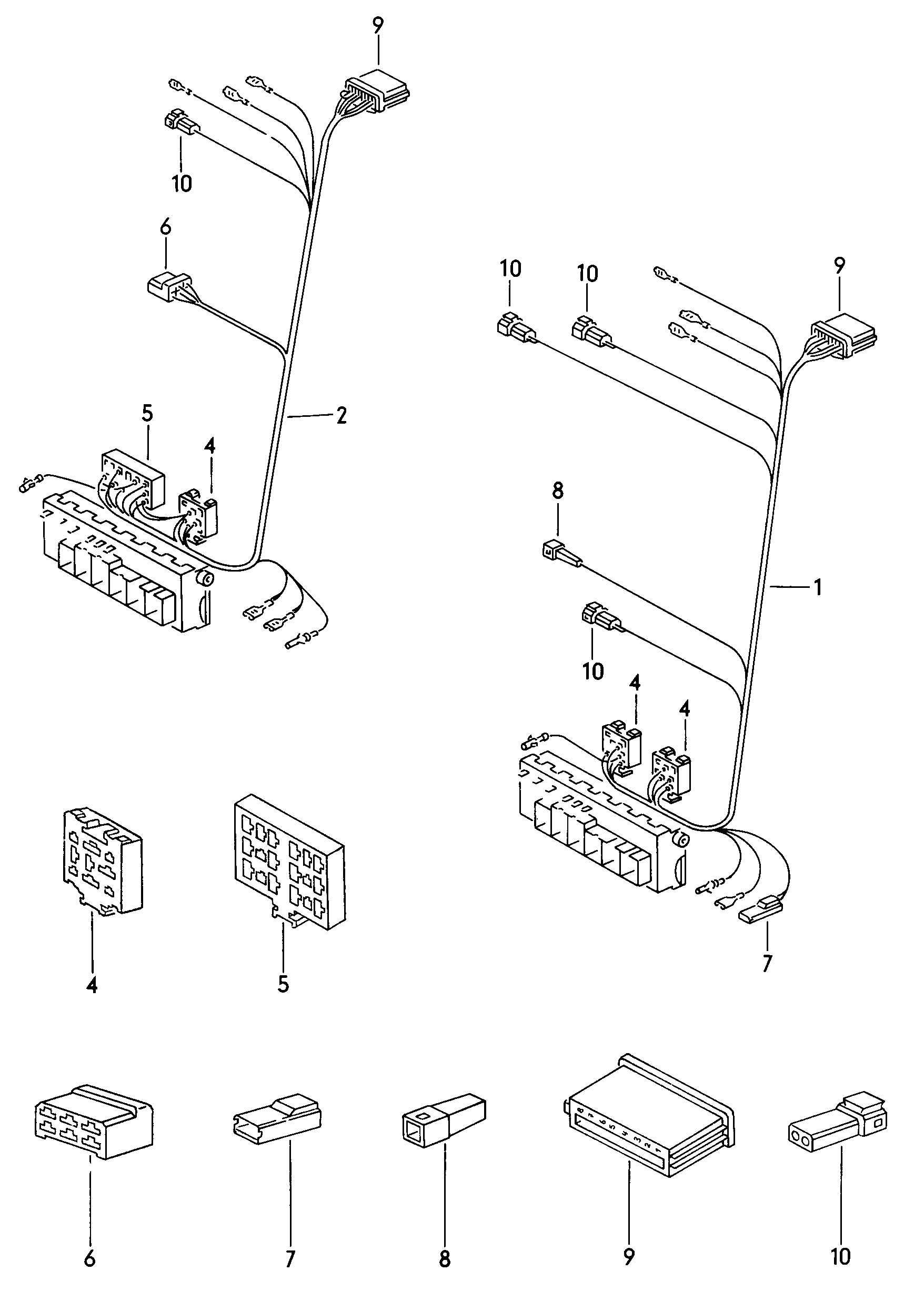

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	wiring harness forseat belt warning system GOLF,JETTA	—
-	Flat contact housing	161 971 990 A
(8)	flat connector housing also use: 161 971 990 A 161 971 990 A	161 971 976 A
1	Discont. / replace:	—
10	round connector housing 1,6 1,6	171 971 998 A
4	relay plate	135 937 501 A
5	relay plate	531 941 845
6	Flat contact housing 6,3 6,3	803 971 831
7	Flat contact housing 6,3 6,3	111 971 921 B
9	Spring contact housing	113 971 998 B
