Which VW part numbers are on the control unit absspeed sensor diagram for the Mk3 Golf?

This diagram lists 20 OEM part numbers for the Mk3 Golf. The first three are 1H0 907 379 E, 1H0 927 808 and 1J0 927 804.

Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1994 - 1997 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Control unit absspeed sensor — Mk3 Golf Control Units (1994 - 1997)

Factory title: Volkswagen Golf Cabriolet (1994 - 1998) - Speed sensor. Control unit for ABS

Generation: Mk3 1994 - 1997 (RDW) Group: Control units Parts: 20 Primary OEM: 1H0 907 379 E, 1H0 927 808, 1J0 927 804

Control unit absspeed sensor for the Volkswagen Golf Mk3 (1994 - 1997): factory exploded diagram 927000 from the Volkswagen ETKA parts catalogue, group 35 Control units, listing 20 OEM part numbers including 1H0 907 379 E, 1H0 927 808 and 1J0 927 804. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 20 OEM part numbers across 20 numbered positions.

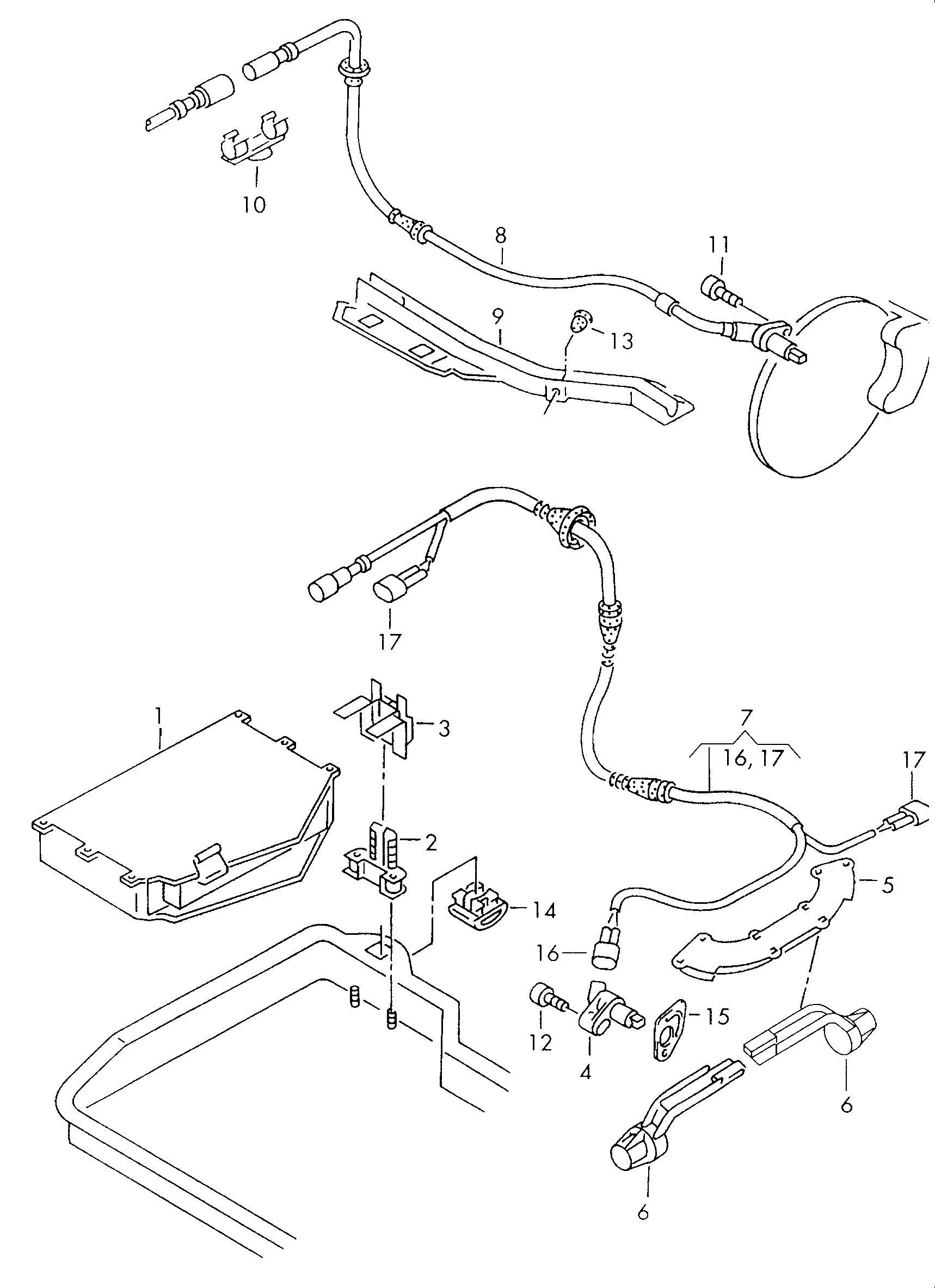

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
(1)	Control unit for ABSfor vehicles with electronicdifferential lock -edl-	1H0 907 379 E
(4)	speed sensor	1H0 927 808
(4)	speed sensor	1J0 927 804
(9)	Cable guide F >> 1 E-S-005 031	535 971 852
(9)	Cable guide F 1 E-S-005 032>>	535 971 852 B
(9)	Cable guide F 1 E-S-005 032>>	535 971 851 B
1	Control unit for ABS	1H0 907 379 D
10	Cable holder 6,5 X 14,5 X 20,5 6,5 X 14,5 X 20,5	811 971 848 E
11	Socket head bolt withhexagon socket head M 6 X 18 M 6 X 18	N 014 703 5
12	Socket head bolt withhexagon socket head M 6 X 22 M 6 X 22	N 014 734 6
13	Bungs 7 X 1,5 X 10,5 7 X 1,5 X 10,5	N 020 028 1
16	flat contact housing withgasket	357 973 202
17	flat connector housing	357 973 332
4	speed sensor	1H0 927 807
4	speed sensor	1J0 927 803
5	Bracket	1H0 971 852 A
6	Bracket	1H0 907 303
7	wiring harness for speedsensor and/or brake pad wearindicator	1H2 927 903
8	speed sensor	1H0 927 807 A
9	Cable guide F >> 1 E-S-005 031	535 971 851

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these control units diagrams are drawn from.

Volkswagen OEM Parts Catalogues and Torque reference manuals! Get amongst it. Volkswagen OEM Parts Catalogues and Torque reference manuals from Type 19 Specialists — the printed editions the free catalogue pages are drawn from.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1994 - 1997
Generation region: RDW
Generation code: 146
Factory group: 35 Control units
Factory subgroup: 927000
