Control unit fully elec tronic ignition lambda probe knock — Mk3 Golf Control Units (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Lambda probe. Knock sensor. Control unit for glow plug. Control unit for fully elec- tronic ignition. accelerator pedal sender. impulse sender

Generation: Mk3 1997 (RDW) Group: Control units Parts: 90 Primary OEM: 3A0 907 311 A, 3A0 997 311 AX, 028 906 021 FJ

Control unit fully elec tronic ignition lambda probe knock for the Volkswagen Golf Mk3 (1997): factory exploded diagram 906010 from the Volkswagen ETKA parts catalogue, group 35 Control units, listing 90 OEM part numbers including 3A0 907 311 A, 3A0 997 311 AX and 028 906 021 FJ. Parts on this plate carry the engine codes 1Z, AAA, AAM, AAZ, ABF, ACC, ADY and ADZ. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 90 OEM part numbers across 90 numbered positions.

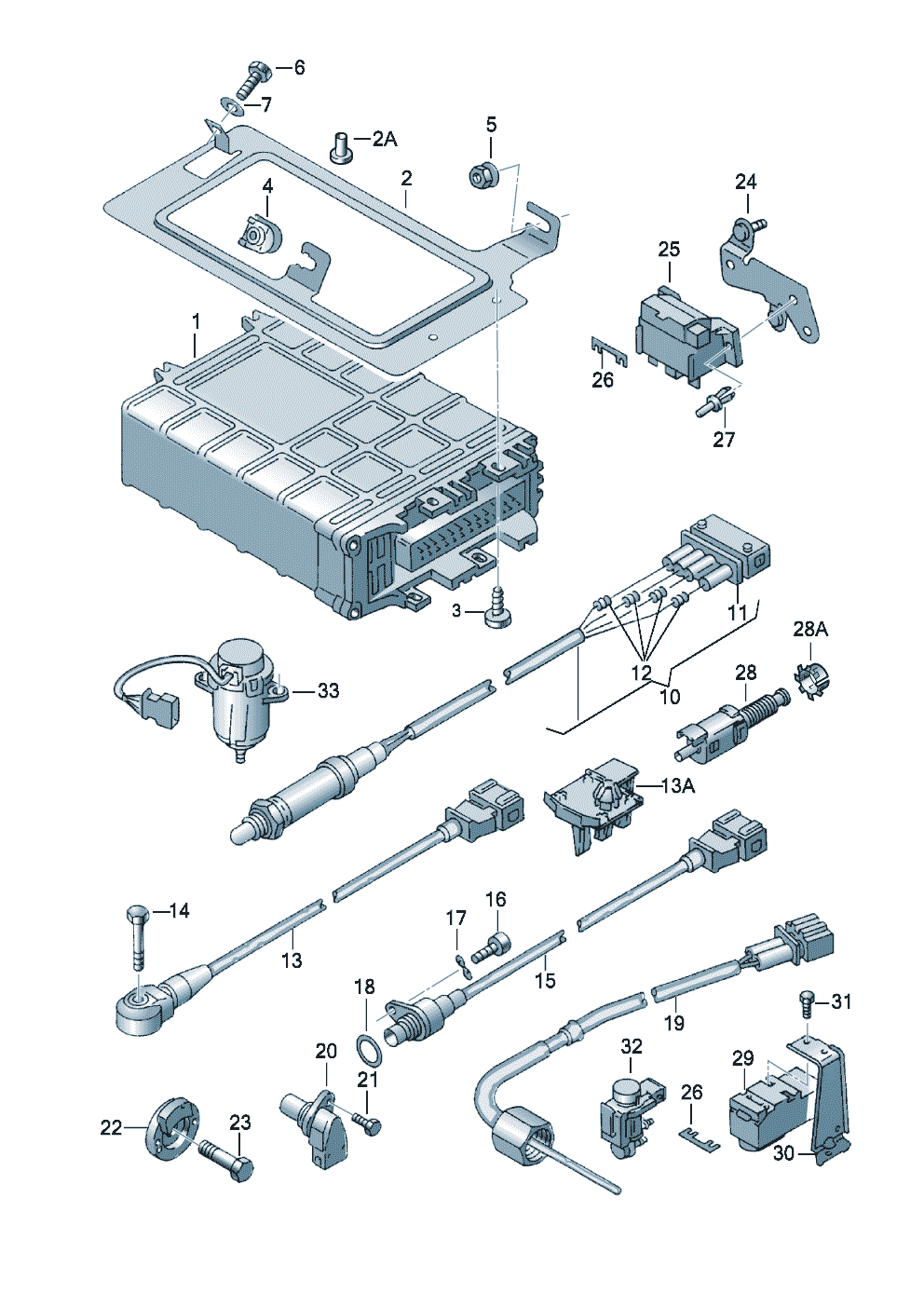

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
(1)	Control unit for petrol engine 'MONO-MOTRONIC' AAM,ANN 'MONO-MOTRONIC' AAMANN	3A0 907 311 A
(1)	Control unit for petrol engine only to be used for: 'MONO-MOTRONIC'3 A 0 907 311 A AAM,ANN 'MONO-MOTRONIC'3 A 0 907 311 A AAMANN	3A0 997 311 AX
(1)	Control unit 'SDI' AEY 'SDI' AEY	028 906 021 FJ
(1)	Control unit 'DIGIFANT' ABF 'DIGIFANT' ABF	037 906 024 BE
(1)	Control unit for petrol engine 'SIMOS' AKR 'SIMOS' AKR	037 906 025 AC
(1)	Control unit only to be used for: 'MONO-MOTRONIC'8 A 0 907 311 AP ACC 'MONO-MOTRONIC'8 A 0 907 311 AP ACC	8A0 997 311 SX
(1)	Control unit 'TDI' AFN 'TDI' AFN	028 906 021 DF
(1)	Control unit 'MPI' AEX 'MPI' AEX	030 906 027 T
(1)	Control unit 'MOTRONIC' AAA 'MOTRONIC' AAA	021 906 256
(1)	Control unit 'SIMOS' AEP 'SIMOS' AEP	037 906 025 E
(1)	Control unit only to be used for: 'DIGIFANT'037 906 024 BE ABF 'DIGIFANT'037 906 024 BE ABF	037 997 024 DX
(1)	Control unit 'TDI' 1 Z,AHU 'TDI' 1ZAHU	028 906 021 BF
(1)	Control unit 'MOTRONIC' "GUS","CN.":AAA 'MOTRONIC'	021 906 256 D
(1)	Control unit for petrol engine 'SIMOS' AFT,AKS 'SIMOS' AFTAKS	037 906 025 T
(1)	Control unit 'TDI' AHU 'TDI' AHU	028 906 021 GG
(1)	Control unit 'MONO-MOTRONIC' ACC 'MONO-MOTRONIC' ACC	8A0 907 311 AP
(1)	Control unit 'SDI' AEY 'SDI' AEY	028 906 021 BP
(1)	Control unit F >> 1 H-V-120 000 'SIMOS' AFT 'SIMOS' AFT	037 906 025 J
(1)	Control unit 'MPI' AEE 'MPI' AEE	032 906 030 AA
(1)	Control unit only to be used for: 'MOTRONIC'021 906 256 D "GUS","CN.":AAA 'MOTRONIC'021 906 256 D	021 997 256 CX
(1)	Control unit for petrol engine only to be used for: 'MONOMOTRONIC'1 H 0 907 311 P ADZ,ANP 'MONOMOTRONIC'1 H 0 907 311 P ADZANP	1H0 997 311 BX
(1)	Control unit only to be used for: 'MOTRONIC'021 906 256 AAA 'MOTRONIC'021 906 256 AAA	021 997 256 BX
(1)	Control unit for petrol engine 'MONO-MOTRONIC' ADZ,ANP 'MONO-MOTRONIC' ADZANP	1H0 907 311 P
(1)	Control unit 'MPI' AEE 'MPI' AEE	032 906 030 N
(1)	Control unit only to be used for: 'MPI'030 906 027 T AEX 'MPI'030 906 027 T AEX	030 997 027 FX
(1)	Control unit 'TDI' AFN 'TDI' AFN	028 906 021 JG
(1)	Control unit 'TDI' ALE 'TDI' ALE	028 906 021 HD
(1)	Control unit for petrol engine 'SIMOS' AGG 'SIMOS' AGG	037 906 025 R
(10)	Lambda probe AEX AEX	021 906 265 AC
(10)	Lambda probe AFT,AKS AFTAKS	021 906 265 AB
(10)	Lambda probefor models with catalyst For vehicles without catalyticconverter AAM,ADZ,ACC AAMACCADZ	030 906 265 BH
(10)	Lambda probe AGG,AKR AGGAKR	030 906 265 AP
(10)	Lambda probe AGG,AKR AGGAKR	021 906 265 R
(10)	Lambda probe For vehicles without catalyticconverter ADY,AEP,AGG ADYAEPAGG	030 906 265 BF
(10)	Lambda probe AAA AAA	021 906 265 T
(10)	Lambda probefor models with catalyst For vehicles without catalyticconverter AAM,ADZ,ACC AAMACCADZ	030 906 265 AE
(10)	Lambda probe AAA AAA	021 906 265 AK
(10)	Lambda probe ABF ABF	037 906 265 S
(10)	Lambda probe For vehicles without catalyticconverter ADY,AEP,AGG ADYAEPAGG	023 906 265 D
(10)	Lambda probe AEX AEX	030 906 265 BC
(10)	Lambda probe AEE AEE	030 906 265 AD
(13)	knock sensor withwiring harness 340 MM ABFAAA,ADY,AEP,AGG 340 MM ADYAEPAGG	037 905 377 A
(13)	Knock sensor AEE,AEX AEEAEX	030 905 377 A
(13)	knock sensor withwiring harness 520 MM AFT,AKS 520 MM AFTAKS	054 905 377
(13)	knock sensor withwiring harness 535 MM AFT,AKS 535 MM AFTAKS	054 905 377 G
(15)	impulse sender AFT,AKS AFTAKS	037 906 433 B
(15)	impulse sender ABF,ADY,AEP,AGG,AKR ABFADYAEPAGGAKR	037 906 433 A
(16)	Socket head bolt withhexagon socket head M 6 X 12 AAA M 6 X 12 AAA	N 014 701 8
(2)	Retainer for control unit	1H2 906 329 B
(20)	impulse sender 1 Z,AEY,AFN,AHU,ALE 1ZAEYAFNAHUALE	028 907 319 B
(24)	Bracketfor vehicles with glow plugheater ecomatic:	1H0 906 285 A
(28)	Switchbrake pedal AEY.AFN,AHU AHU	1H0 927 189 C
(28)	Switchclutch lever AEY AEY	1H0 927 189 A
(28)	Switch Clutch pedal AEY AEY	1H0 927 189 D
(28)	Switch 1 Z,AHU,AFN 1ZAFNAHU	1H0 927 189
(30)	Retaining plate ecomatic:AEY AEY	1H0 906 483 C
(32)	Solenoid valve air condit.	191 906 283 A
(32)	Solenoid valve AAZ AAZ	191 906 283 A
(33)	accelerator pedal sender Automatic+AEY,1 Z,AFN,AHU 1ZAFNAHU	028 907 475 C
(33)	accelerator pedal sender Manualgearbox+AEY,1 Z,AFN,AHU,ALE 1ZAFNAHUALE	028 907 475 B
11	flat connector housing	357 972 764 K
12	single wiring seal for wire cross section: 5,6 X 7,81,5 5,6 X 7,81,5	357 972 741 A
13	knock sensor withwiring harness 500 MM AAA 500 MM AAA	021 905 377
13A	Bracket ADY,AGG ADYAGG	1HM 971 845
14	Hexagon bolt M 8 X 28 AAA,ABF M 8 X 28 AAAABF	N 010 233 6
15	Engine speed sender AAA AAA	021 906 433 C
16	Socket head bolt withhexagon socket head M 6 X 15 ABF,ADY,AEP,AGG,AFT,AKS M 6 X 15 ABFADYAEPAFTAGGAKS	N 014 702 10
17	Spring washer 6 6	N 012 226 5
18	seal ring AAA AAA	021 906 445
19	Temperature sensor "J..","BR."	1H0 906 088 A
2	Retainer for control unit	1H1 906 329 B
20	impulse sender AAA AAA	021 907 601 A
21	Hexagon bolt M 6 X 15 AAA M 6 X 15 AAA	N 010 215 27
22	Position sensor wheel forcamshaft AAA AAA	021 905 163
23	Hexagon bolt M 12 X 1,50 X 40 AAA M 12 X 1,50 X 40 AAA	N 102 038 03
23	Hexagon bolt M 12 X 1,5 X 40 AAA M 12 X 1,5 X 40 AAA	N 102 038 01
25	Control unit for glow plug 1 Z,AHU,AFN,AEY 1ZAEYAFNAHU	191 911 261 B
26	fuse 50 A 1 Z,AHU,AFN,AEY 50 A 1ZAEYAFNAHU	N 017 125 1
27	Clip 1 Z,AHU,AFN,AEY 1ZAEYAFNAHU	357 911 269
28A	Clip 1 Z,AHU,AFN 1ZAFNAHU	431 721 283 B
29	Control unitfor power steering ecomatic	1H0 907 707
2A	t-bolt 5 X 10 AEY 5 X 10 AEY	N 901 495 02
3	oval head panel screw 4,8 X 9,5 4,8 X 9,5	N 013 970 5
30	Retainer for control unit ecomatic	1H0 907 711
31	Hexagon bolt M 6 X 12 M 6 X 12	N 010 212 26
32	Solenoid valve ecomatic	1H0 906 283 B
4	Clip	1H0 906 276
5	hex. nut, self-locking withwasher M 6 M 6	N 902 867 03
6	bolt, hex. hd. with shoulder,self-locking M 6 X 18 M 6 X 18	N 014 344 1
7	Washer 6,4 X 12,5 X 1,6 6,4 X 12,5 X 1,6	N 011 524 23
