Diagnosis pump fuel system — Mk3 Golf Control Units (1993 - 1996)

Factory title: Volkswagen Golf (1993 - 1996) - Lambda probe. Knock sensor. Control unit for fully elec- tronic ignition. impulse sender

Generation: Mk3 1993 - 1996 (MEX) Group: Control units Parts: 5 Primary OEM: 021 906 201, 1H0 906 621, 021 906 272

Diagnosis pump fuel system for the Volkswagen Golf Mk3 (1993 - 1996): factory exploded diagram 906015 from the Volkswagen ETKA parts catalogue, group 35 Control units, listing 5 OEM part numbers including 021 906 201, 1H0 906 621 and 021 906 272. Parts on this plate carry the engine code ABA. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 5 OEM part numbers across 5 numbered positions.

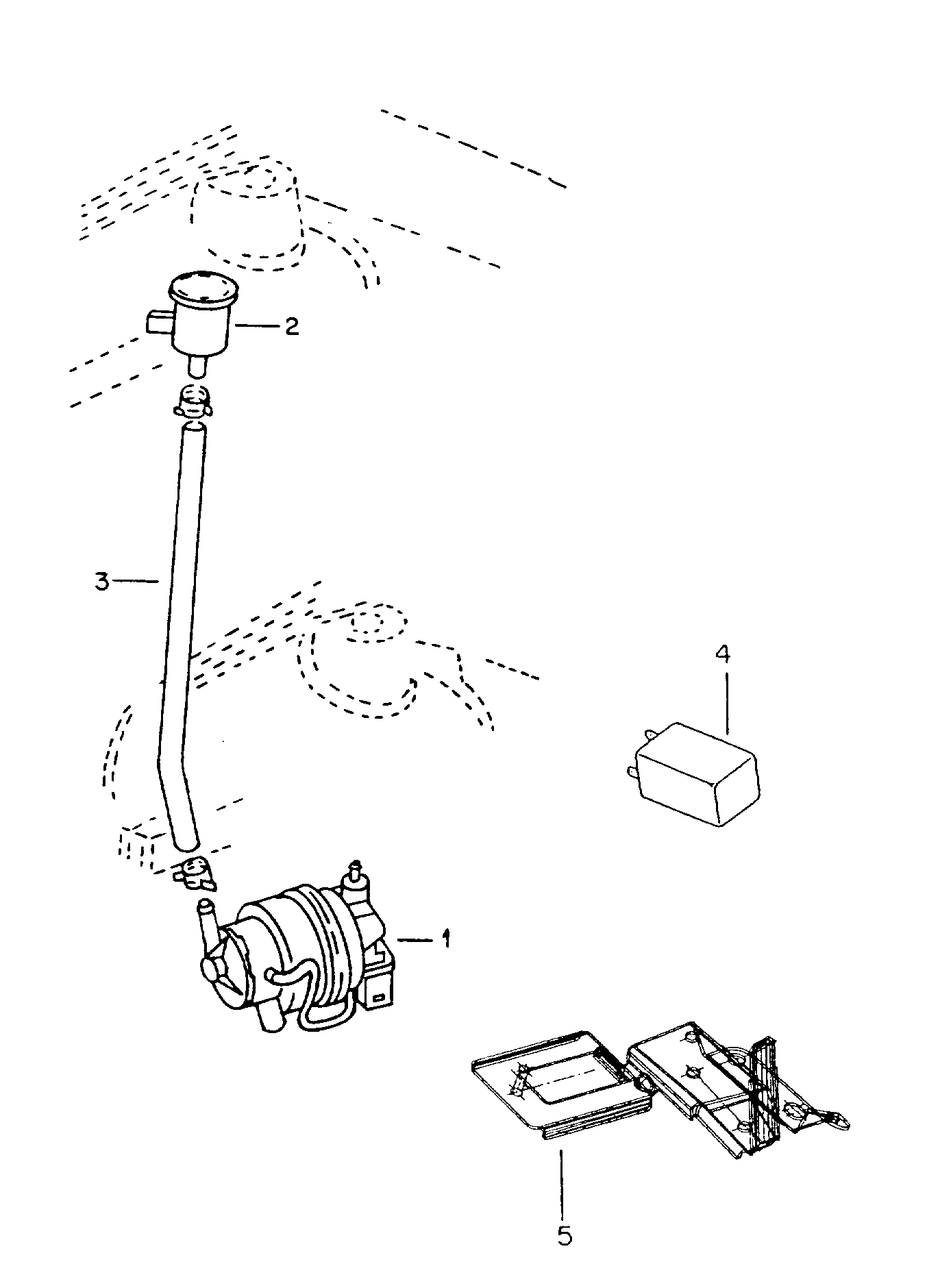

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
1	diagnosis pump for fuelsystem -LDP- ABA -LDP- ABA	021 906 201
2	Air filter ABA ABA	1H0 906 621
3	Pressure hose	021 906 272
4	Relay ABA ABA	1H0 906 383
5	Retainer for air filter ABA ABA	021 906 279 A
