Cruise control system — Mk3 Golf Control Units (1997)

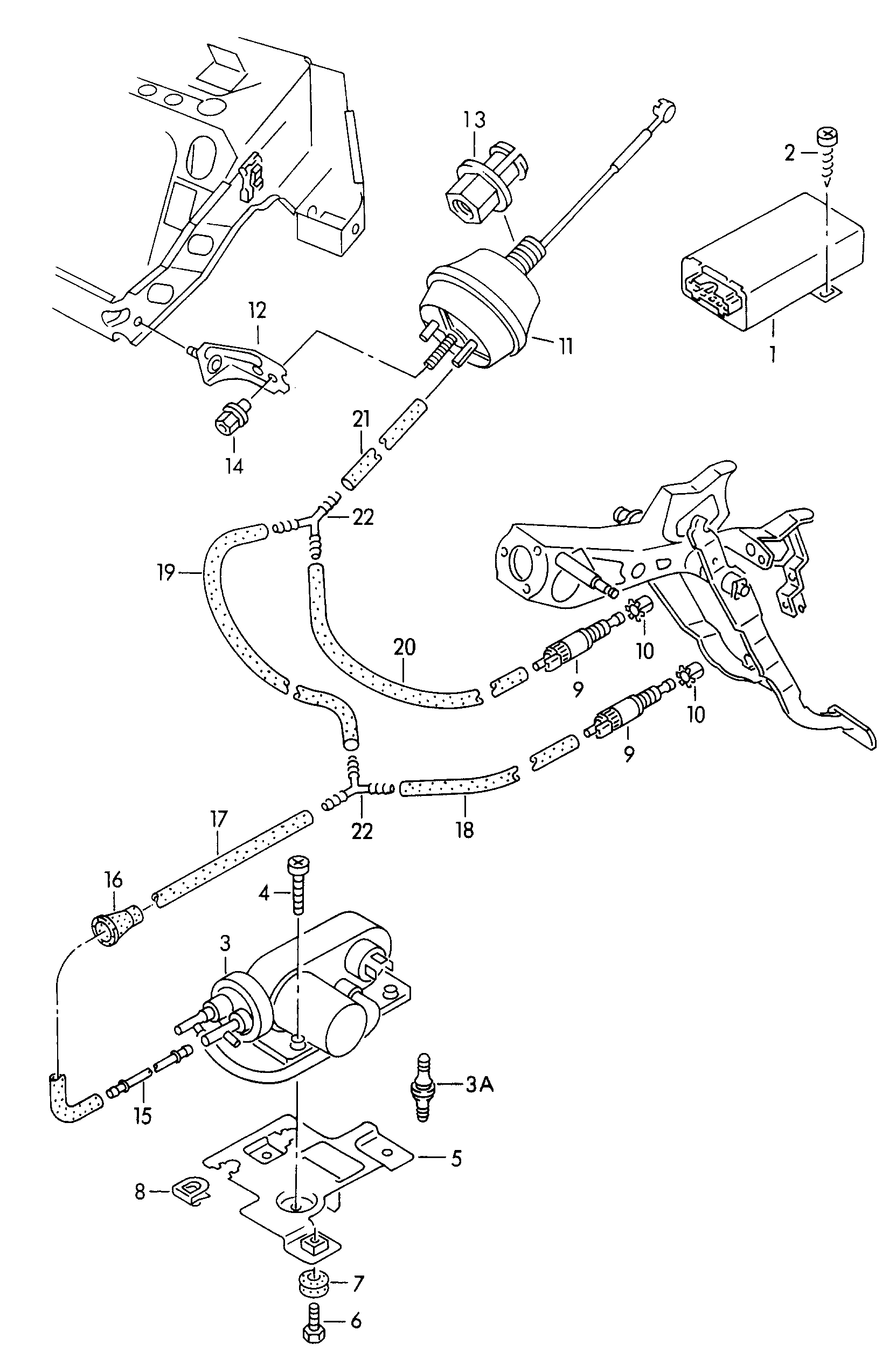

Factory title: Volkswagen Golf (1997 - 1998) - Cruise-control system
Cruise control system for the Volkswagen Golf Mk3 (1997): factory exploded diagram 907010 from the Volkswagen ETKA parts catalogue, group 35 Control units, listing 20 OEM part numbers across 34 catalogued positions including N 018 046 3, 1H0 998 527 and 1H0 907 327. Parts on this plate carry the engine codes 1Z, AFN and AHU. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.
Parts on this diagram
This Mk3 Golf plate lists 20 OEM part numbers across 34 numbered positions.
| № | Description | Part number |
|---|---|---|
| - | hose in coils of 5 m'order unit 5' 5 X 2,5 5 X 2,5 | N 018 046 3 |
| - | retrofit kit for cruisecontrol system 1 Z,AHU,AFN 1ZAFNAHU | 1H0 998 527 |
| (11) | throttle control element | 1H0 907 327 |
| (15) | pipe from pump to connectingpiece 600 MM 600 MM | 1H0 907 961 |
| (17) | shorten to: 660 MM automatic 660 MM | — |
| (17) | shorten to: 1300 MM 1300 MM | — |
| (17) | shorten to: 1300 MM automatic 1300 MM | — |
| (19) | shorten to: 40 MM 40 MM | — |
| (20) | shorten to: 270 MM automatic 270 MM | — |
| (20) | shorten to: 200 MM 200 MM | — |
| (20) | shorten to: 120 MM automatic 120 MM | — |
| (21) | shorten to: 40 MM 40 MM | — |
| (3) | Vacuum pump | 701 907 325 A |
| 1 | speed regulator | 1H0 907 305 |
| 10 | Clip 13 manualgearboxautomatic 13 | 431 721 283 B |
| 11 | throttle control element | 1H6 907 327 |
| 12 | see illustration: 721-060 721-060 | — |
| 13 | adjusting nut | 357 907 519 |
| 14 | Hexagon collar nutthrottle control element | 535 907 519 |
| 16 | Grommet 20/4 20/4 | 411 941 189 |
| 17 | shorten to: 550 MM 550 MM | — |
| 18 | shorten to: 120 MM 120 MM | — |
| 19 | shorten to: 120 MM 120 MM | — |
| 2 | oval head panel screw 4,8 X 13 4,8 X 13 | N 013 968 1 |
| 20 | shorten to: 120 MM 120 MM | — |
| 21 | shorten to: 150 MM 150 MM | — |
| 22 | t-piece 6/6/6 6/6/6 | 811 907 428 |
| 3A | Damper | 1H0 907 349 |
| 4 | fillister hd. bolt M 4 X 20 M 4 X 20 | N 014 119 1 |
| 5 | Retainer for vacuum pump | 1H0 907 341 B |
| 6 | Hexagon bolt M 6 X 15 M 6 X 15 | N 010 215 27 |
| 7 | Grommet 13/9 13/9 | 331 955 754 |
| 8 | Clip | 1H0 906 276 |
| 9 | ventilation valve manualgearboxautomatic | 811 907 343 B |
From the Type 19 workshop
Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these control units diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk3
- Model years
- 1997
- Generation region
- RDW
- Generation code
- 184
- Engine codes on this plate
- 1Z, AFN, AHU
- Factory group
- 35 Control units
- Factory subgroup
- 907010
