Control unit automatic gearboxvalve body switch 4 speed — Mk3 Golf Control Units (1994 - 1997)
Factory title: Volkswagen Golf Cabriolet (1994 - 1998) - Speed sensor. Control unit for ABS

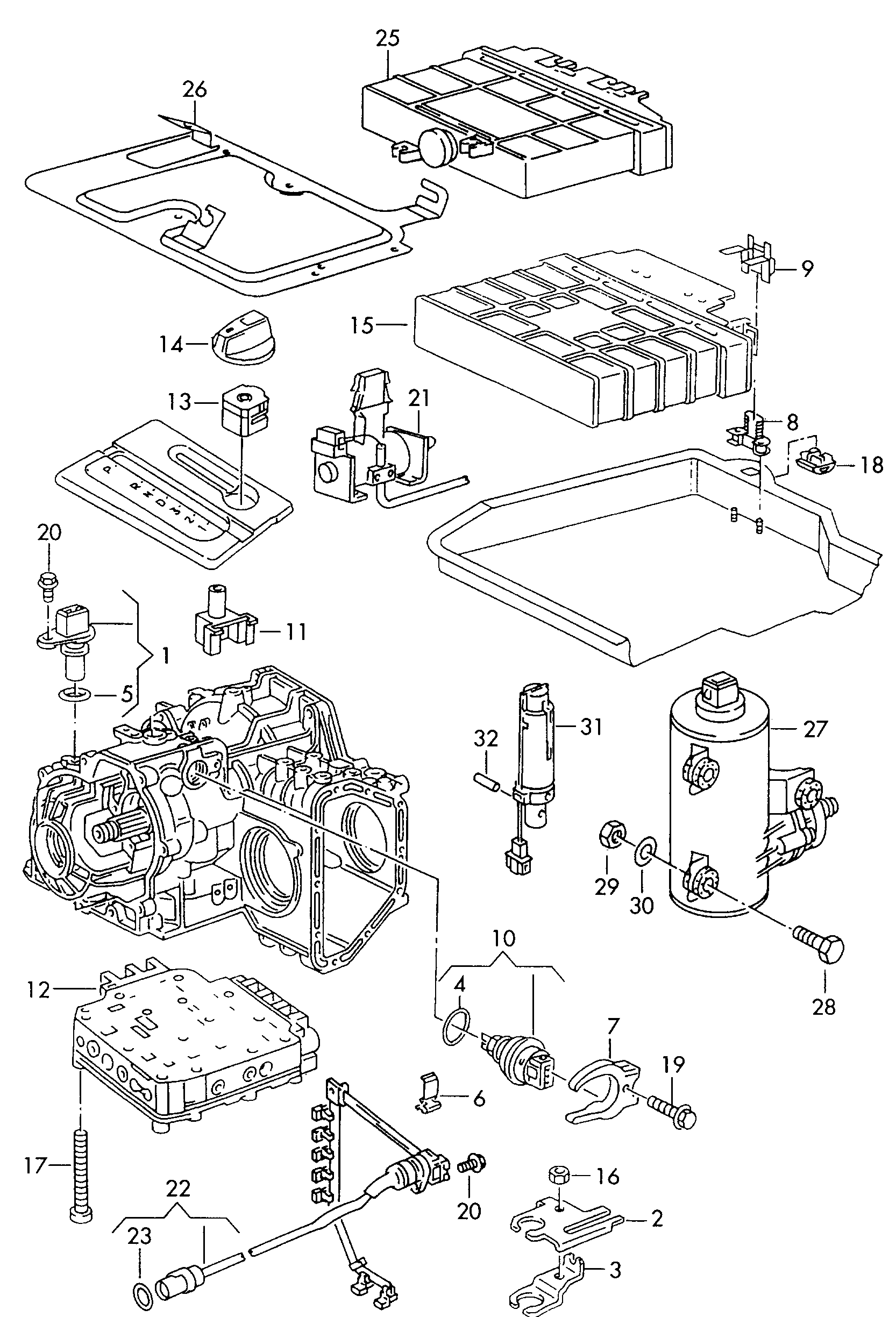

Control unit automatic gearboxvalve body switch 4 speed for the Volkswagen Golf Mk3 (1994 - 1997): factory exploded diagram 927050 from the Volkswagen ETKA parts catalogue, group 35 Control units, listing 46 OEM part numbers across 48 catalogued positions including 1H2 927 149 K 25, 1H0 927 149 L 55 and 095 919 823 F. Parts on this plate carry the engine codes 1Z, 2E, ABS, ADY, ADZ, AEK, AFN and AFT. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.
Parts on this diagram
This Mk3 Golf plate lists 46 OEM part numbers across 48 numbered positions.
| № | Description | Part number |
|---|---|---|
| Control unit for automaticgearboxvalve body Switch 4-speedautomatic | — | |
| green | 1H2 927 149 K 25 | |
| red | 1H0 927 149 L 55 | |
| (10) | multi-function switch forautomatic gearbox F 1 E-T-000 001>>* | 095 919 823 F |
| (11) | Bulb carrier with bulb | 1H2 927 149 |
| (11) | Bulb carrier with bulb | 1H2 927 149 |
| (15) | Control unit for 4-speedautomatic gearbox F 1 E-S-020 893>> 1 E-V-060 000* ABS,ADZ ABSADZ | 01M 927 733 A |
| (15) | Control unit for 4-speedautomatic gearbox F 1 E-V-024 001>>* VW/A 3 1,8 LTR. ADZDLV VW/A 3 1,8 LTR. | 01M 927 733 GH |
| (15) | Control unit for 4-speedautomatic gearbox F 1 E-V-024 001>>* VW/A 3 2,0 LTR. AGG,AKRDLZ VW/A 3 2,0 LTR. AGG | 01M 927 733 GL |
| (15) | Control unit for 4-speedautomatic gearbox F 1 E-V-024 001>>* VW/A 3 1,6 LTR. AFT,AKSDLV VW/A 3 1,6 LTR. AFT | 01M 927 733 CQ |
| (15) | Control unit for 4-speedautomatic gearbox F 1 E-T-024 001>> 1 E-V-024 000* AGG AGG | 01M 927 733 BF |
| (15) | Control unit for 4-speedautomatic gearbox F >> 1 E-T-024 000* AGG AGG | 01M 927 733 CC |
| (15) | Control unit for 4-speedautomatic gearbox F 1 E-V-006 001>> 1 E-V-024 001* ADZ ADZ | 01M 927 733 EK |
| (15) | Control unit for 4-speedautomatic gearbox F 1 E-S-020 893>> 1 E-V-060 000* A 3/B 5 1,8 L ABS,ADZ A 3/B 5 1,8 L ABSADZ | 01M 927 733 GG |
| (15) | Control unit for 4-speedautomatic gearbox F 1 E-S-020 433>>* ADY ADY | 01M 927 733 C |
| (15) | Control unit for 4-speedautomatic gearbox F 1 E-S-020 433>>* A 3/B 5 2,0 LTR. ADY A 3/B 5 2,0 LTR. ADY | 01M 927 733 GJ |
| (15) | Control unit for 4-speedautomatic gearbox F >> 1 E-S-009 000* 66 KW ABS 66 KW ABS | 096 927 731 BL |
| (15) | Control unit for 4-speedautomatic gearbox F 1 E-V-006 001>> 1 E-V-024 001* ADZ ADZ | 01M 927 733 GG |
| (15) | Control unit for 4-speedautomatic gearbox F 1 E-S-009 001>> 1 E-S-020 892 66 KW ABS 66 KW ABS | 096 927 733 R |
| (15) | Control unit for 4-speedautomatic gearbox F >> 1 E-V-024 000* AFN AFN | 01M 927 733 BN |
| (15) | Control unit for 4-speedautomatic gearbox F >> 1 E-V-024 000* 1 Z,AHU 1ZAHU | 01M 927 733 BJ |
| (15) | Control unit for 4-speedautomatic gearbox F >> 1 E-V-024 000* A 3/B 5 2,0 LTR. AGG A 3/B 5 2,0 LTR. AGG | 01M 927 733 GK |
| (15) | Control unit for 4-speedautomatic gearbox F 1 E-S-008 942>> 1 E-S-020 432 A 3 85 KW/2,0 LT ADY A 3 85 KW/2,0 LT ADY | 096 927 733 AS |
| (15) | Control unit for 4-speedautomatic gearbox F >> 1 E-V-024 000* A 3/B 5 1,6 LTR. AEK,AFT A 3/B 5 1,6 LTR. AEKAFT | 01M 927 733 B |
| (21) | Electromagnet | 1H2 927 353 |
| 1 | Speedometer G 38/G 68 G 38/G 68 | 095 927 321 C |
| 1 | Speedometer | 095 927 321 A |
| 10 | multi-function switch forautomatic gearbox F >> 1 E-S-040 000* | 095 919 823 B |
| 11 | Bulb carrier with bulb | 1H0 927 149 |
| 12 | see illustration: 325-050 325-050 | — |
| 15 | Control unit for 4-speedautomatic gearbox F >> 1 E-S-008 941* 2 E 2E | 096 927 731 BH |
| 16 | Hexagon nut M 8.0 M 8.0 | N 011 008 30 |
| 16 | Hexagon nut M 8 M 8 | N 011 008 18 |
| 17 | Round-head screw M 6 X 55 M 6 X 55 | N 101 943 02 |
| 19 | hexagon head bolt (combi) M 6 X 20 M 6 X 20 | N 905 330 02 |
| 19 | Hex collared bolt M 6 X 20 M 6 X 20 | N 902 803 02 |
| 2 | Bracket | 095 321 424 E |
| 20 | Hexagon bolt M 6 X 15 M 6 X 15 | N 904 407 01 |
| 21 | Electromagnet | 1H1 927 353 |
| 22 | Conductor foilvalve body | 096 927 365 |
| 23 | O-ring 19 X 3 19 X 3 | 095 325 381 A |
| 3 | Bracket | 095 321 425 A |
| 4 | O-ring 22 X 3 22 X 3 | 095 321 529 |
| 5 | O-ring 11 X 3 11 X 3 | 095 321 559 |
| 6 | Retaining clip | 01M 321 395 A |
| 6 | Retaining clip | 01M 321 395 |
| 6 | Retaining clip | 096 321 395 |
| 7 | Bracket | 097 321 527 |
