Alternator single parts — Mk3 Golf Engine Electrics (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Alternator versions

Generation: Mk3 1997 (RDW) Group: Engine electrics Rebuild step 4 Parts: 9 Primary OEM: 030 903 023 FX, 037 903 023 QX, 037 903 023 GX

Alternator single parts for the Volkswagen Golf Mk3 (1997): factory exploded diagram 903025 from the Volkswagen ETKA parts catalogue, group 44 Engine electrics, listing 9 OEM part numbers including 030 903 023 FX, 037 903 023 QX and 037 903 023 GX. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 9 OEM part numbers across 9 numbered positions.

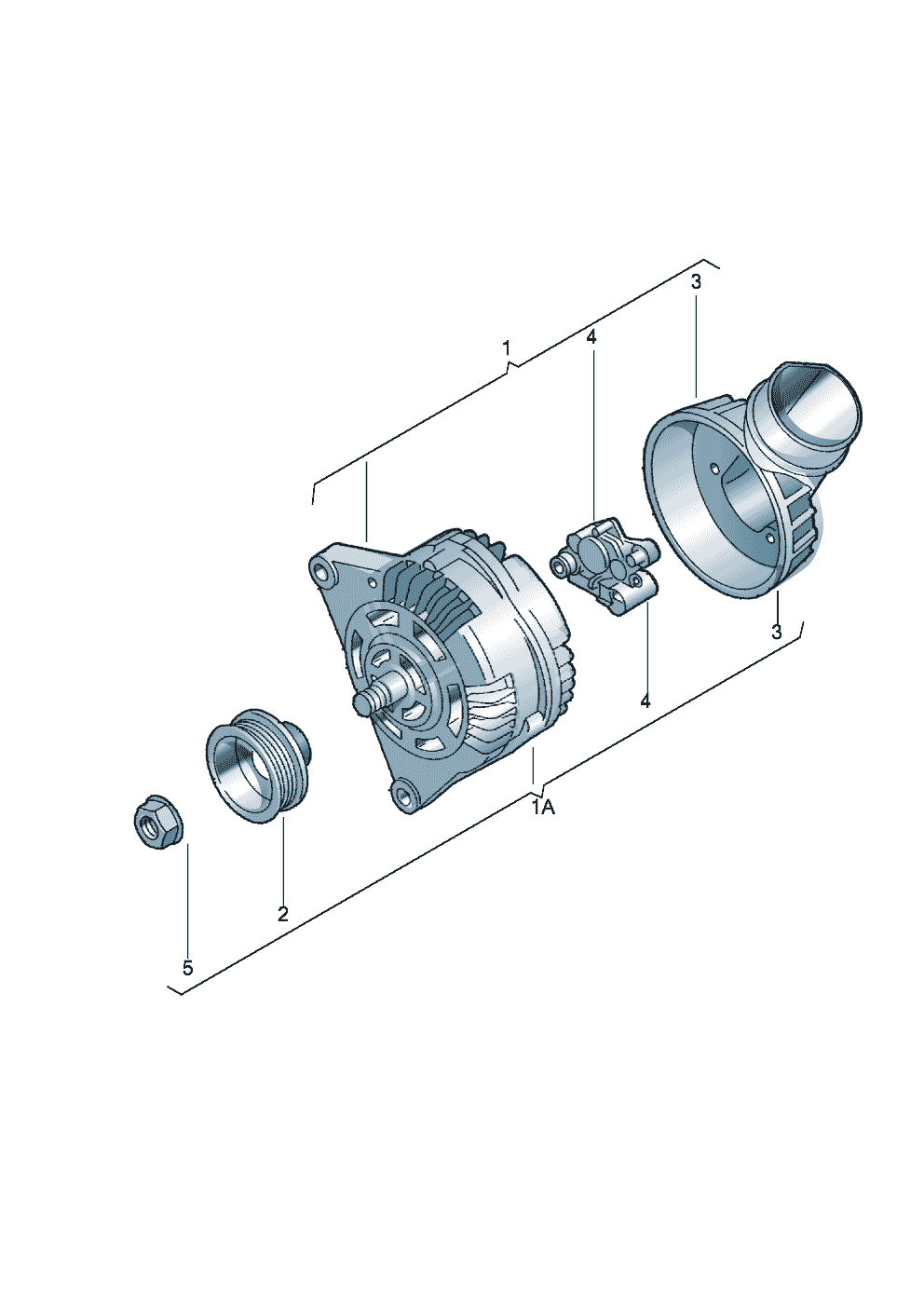

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
(1)	Alternator 90 A 90 A	030 903 023 FX
(1)	Alternator 70 A 70 A	037 903 023 QX
(1)	Alternator 90 A 90 A	037 903 023 GX
(2)	Poly V-belt pulley for alternator: 1,2,3,4 1,2,3,4	030 903 119 C
1	Alternator 70 A 70 A	030 903 023 EX
2	Poly V-belt pulley for alternator: 11 11	028 903 119 N
3	Protective cap	030 903 193
4	Voltage regulator	028 903 803 F
5	Collar nut M 16 X 1,5 M 16 X 1,5	030 903 181
