Connecting mounting parts alternator poly v belt — Mk3 Golf Engine Electrics (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Alternator versions

Generation: Mk3 1997 (RDW) Group: Engine electrics Rebuild step 4 Parts: 25 Primary OEM: G 052 735 A2, 026 903 245 A, N 101 208 03

Connecting mounting parts alternator poly v belt for the Volkswagen Golf Mk3 (1997): factory exploded diagram 903035 from the Volkswagen ETKA parts catalogue, group 44 Engine electrics, listing 24 OEM part numbers across 25 catalogued positions including G 052 735 A2, 026 903 245 A and N 101 208 03. Parts on this plate carry the engine codes ACC, ADZ, AFT, AGG, AKR and AKS. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 24 OEM part numbers across 25 numbered positions.

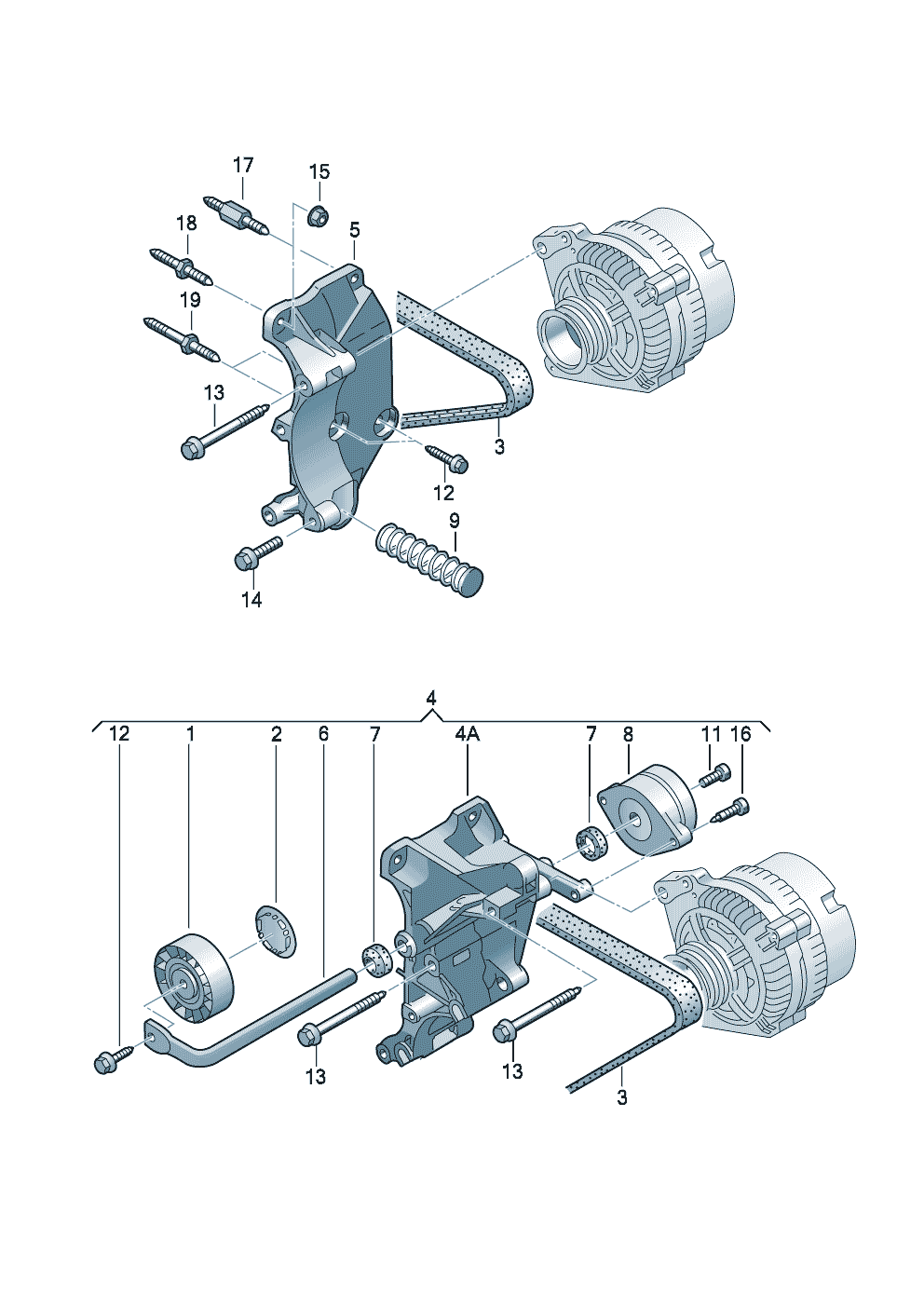

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	connecting and mounting partsfor alternator Poly-V-belt 1.6-2.0 litres 4-cylinder+AAM,ADZ,AEPABF,ACC,AFT,AGG,AKR,AKS 1.6-2.0 litres ACCADZAFTAGGAKRAKS	—
-	universal grease 120 G 120 G	G 052 735 A2
-	Bracket	026 903 245 A
(14)	Hex collared bolt for alternator: M 8 X 853,4,6,8-16 M 8 X 853,4,6,8-16	N 101 208 03
(3)	Poly-V-belt for alternator: 21,36 X 1033 MM 120 A 21,36 X 1033 MM 120 A	037 903 137 H
(3)	Poly-V-belt 21,36 X 1033 MM 21,36 X 1033 MM	037 903 137 H
1	idler pulleywith threaded bush 78 MMM 8 78 MMM 8	028 145 278 E
11	Socket head bolt withhexagon socket head M 6 X 16 M 6 X 16	N 014 740 4
12	Hex collared bolt M 8 X 22 M 8 X 22	N 019 526 5
12	Hex collared bolt M 8 X 20 M 8 X 20	N 019 533 4
13	Hex collared bolt M 8 X 85 M 8 X 85	N 101 208 03
14	hexagon head bolt (combi) for alternator: M 8 X 391,2,5,7 M 8 X 391,2,5,7	N 905 649 01
15	Hexagon collar nut M 8 M 8	N 902 291 02
16	Socket head bolt withhexagon socket head M 8 X 22 M 8 X 22	N 014 709 1
17	stud with shoulder M 8 X 17 X 24 M 8 X 17 X 24	028 260 821 C
18	Stud M 8 X 34 X 24 M 8 X 34 X 24	028 260 821
19	Stud M 8 X 55 X 31 M 8 X 55 X 31	028 260 821 A
2	Protective cap	028 145 291 B
3	Poly-V-belt 21,36 X 894 MM 21,36 X 894 MM	037 903 137 E
4	bracket for alternatorfor vehicles with air condit.and/or for alternator: 120 A 120 A	037 903 139 M
5	bracket for alternator	028 903 143 AD
6	Clamping lever	028 903 308 C
7	dust cap	028 903 310
8	tensioner	037 903 315 C
9	Tensioning spring	028 903 329
