List v belts — Mk3 Golf Engine Electrics (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Alternator versions

Generation: Mk3 1997 (RDW) Group: Engine electrics Rebuild step 4 Parts: 31 Primary OEM: 030 903 137 T, 030 145 933 T, 030 145 933 L

List v belts for the Volkswagen Golf Mk3 (1997): factory exploded diagram 903095 from the Volkswagen ETKA parts catalogue, group 44 Engine electrics, listing 21 OEM part numbers across 31 catalogued positions including 030 903 137 T, 030 145 933 T and 030 145 933 L. Parts on this plate carry the engine codes 1Y, 1Z, AAA, AAM, AAZ, ABF, ACC and ADZ. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 21 OEM part numbers across 31 numbered positions.

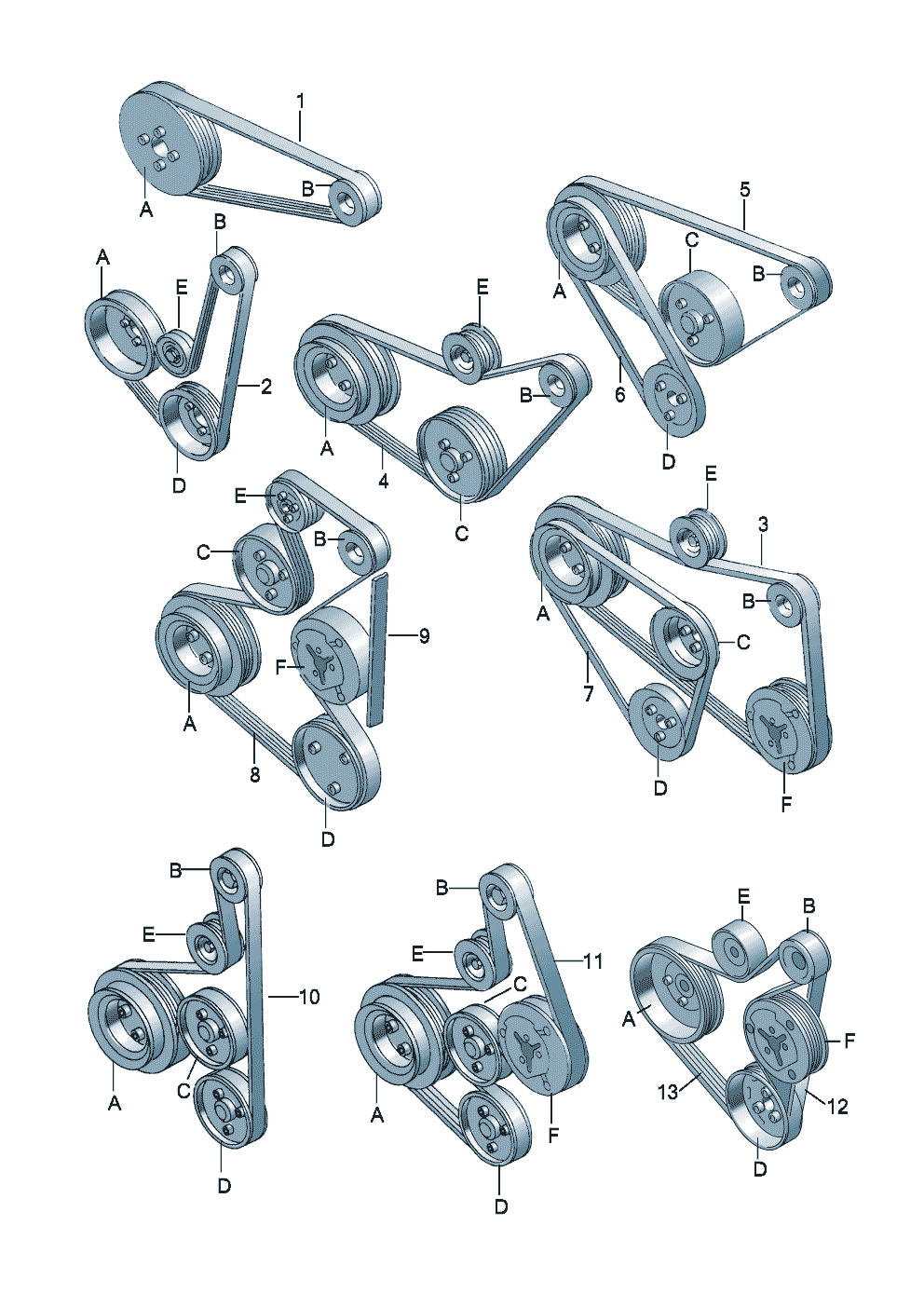

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	list of 'v' belts 4-cylinder	—
	list of 'v' belts diesel eng.	—
	list of 'v' belts 6-cylinder	—
(1)	Poly-V-belt 21,36 X 751 MM AEX 21,36 X 751 MM AEX	030 903 137 T
(2)	Poly-V-beltfor models with powersteering 21,18 X 1070 MM AEX,AEE 21,18 X 1070 MM AEEAEX	030 145 933 T
(2)	Poly-V-beltfor models with powersteering 21,18 X 1070 MM AEX,AEE 21,18 X 1070 MM AEEAEX	030 145 933 L
(2)	Poly-V-beltfor models with powersteering 21,36 X 1068 MM AEX,AEE 21,36 X 1068 MM AEEAEX	030 145 933 E
(3)	Poly-V-beltfor vehicles with air condit. 21,36 X 1145 MM 1 Z,AAZ,AFN,AHU,AEY,ALE 21,36 X 1145 MM 1ZAAZAEYAFNAHUALE	028 260 849 D
(3)	Poly-V-beltfor vehicles with air condit. 21,18 X 1145 MM 1 Z,AAZ,AFN,AHU,AEY,ALE 21,18 X 1145 MM 1ZAAZAEYAFNAHUALE	028 260 849 L
(4)	Poly-V-belt for alternator: 21,36 X 1045 MM 120 A 1 Z,AHU,AFN,AEY,ALEAAZ 21,36 X 1045 MM 120 A 1ZAEYAFNAHU	028 903 137 BB
(4)	Poly-V-belt for alternator: 21,36 X 1045 MM 120 A 1 Z,AHU,AFN,AEY,ALEAAZ 21,36 X 1045 MM 120 A 1ZAEYAFNAHU	028 903 137 T
(4)	Poly-V-belt 21,36 X 1033 MM ABF,AFT,AKF 21,36 X 1033 MM ABFAFTAKF	037 903 137 H
(5)	Poly-V-belt 21,36 X 923 MM AAZ,1 Y 21,36 X 923 MM 1YAAZ	028 903 137 AM
(6)	v-beltfor power steering AVX 10 X 730 MM 1 Z,AHU,AAZ,1 Y,AFN,AEY,ALE AVX 10 X 730 MM 1Y1ZAAZAEYAFNAHUALE	028 145 271 K
(6)	v-beltfor power steering AVX 10 X 730 MM 1 Z,AHU,AAZ,1 Y,AFN,AEY,ALE AVX 10 X 730 MM 1Y1ZAAZAEYAFNAHUALE	028 145 271 G
(7)	v-belt For vehicles with airconditioning + power steering 11,5 X 790 MM 1 Z,AAZ,AFN,AHU,AEY 11,5 X 790 MM 1ZAAZAEYAFNAHU	028 145 271 H
(7)	v-belt For vehicles with airconditioning + power steering 10,5 X 790 MM 1 Z,AAZ,AFN,AHU,AEY,ALE 10,5 X 790 MM 1ZAAZAEYAFNAHUALE	028 145 271 L
3	Poly-V-beltfor vehicles with air condit. 21,36 X 1148 MM AAM,AEP,AGG,ABF,ADZ,AFT,ACC,AEE,AKS,AKR 21,36 X 1148 MM AAMABFACCADZAEEAEPAFTAGGAKRAKS	037 260 849 C
4	Poly-V-belt for alternator: 21,36 X 1033 MM 120 A AAM,AGG,ADZ,ACC,AKR 21,36 X 1033 MM 120 A AAMACCADZAGGAKR	037 903 137 H
5	Poly-V-belt 21,36 X 894 MM AAM,AEP,ACC,ADZ,AGG,AKR,AFT 21,36 X 894 MM AAMACCADZAEPAFTAGGAKR	037 903 137 E
6	v-beltfor power steering 11,5 X 685 MM AAM,AEP,AGG,ABF,ADZ,ACC,AFT,AKS,AKR 11,5 X 685 MM AAMABFACCADZAEPAFTAGGAKRAKS	037 145 271 E
7	v-belt For vehicles with airconditioning + power steering 11,5 X 755 MM AAM,AEP,AGG,ABF,ADZ,ACC,AFT,AKS,AKR 11,5 X 755 MM AAMABFACCADZAEPAFTAGGAKRAKS	037 145 271 F
8	Double poly V-beltfor vehicles with air condit. 24,92 X 1360 MM AAA 24,92 X 1360 MM AAA	021 145 933 H
9	Poly-V-belt 24,92 X 1290 MM AAA 24,92 X 1290 MM AAA	021 145 933 C
A	Crankshaft	—
B	Alternator	—
C	Coolant pump	—
D	Power steering	—
E	Belt tensioner damper	—
F	A/C compressor	—
G	idler pulley	—
