Connecting mounting parts alternator poly v belt 4 cylinder — Mk3 Golf Engine Electrics (1995)

Factory title: Volkswagen Golf (1995) - Alternator versions

Generation: Mk3 1995 (RDW) Group: Engine electrics Rebuild step 4 Parts: 25 Primary OEM: 030 145 299 C, 030 145 299 F, 030 145 933 R

Connecting mounting parts alternator poly v belt 4 cylinder for the Volkswagen Golf Mk3 (1995): factory exploded diagram 903030 from the Volkswagen ETKA parts catalogue, group 44 Engine electrics, listing 22 OEM part numbers across 25 catalogued positions including 030 145 299 C, 030 145 299 F and 030 145 933 R. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 22 OEM part numbers across 25 numbered positions.

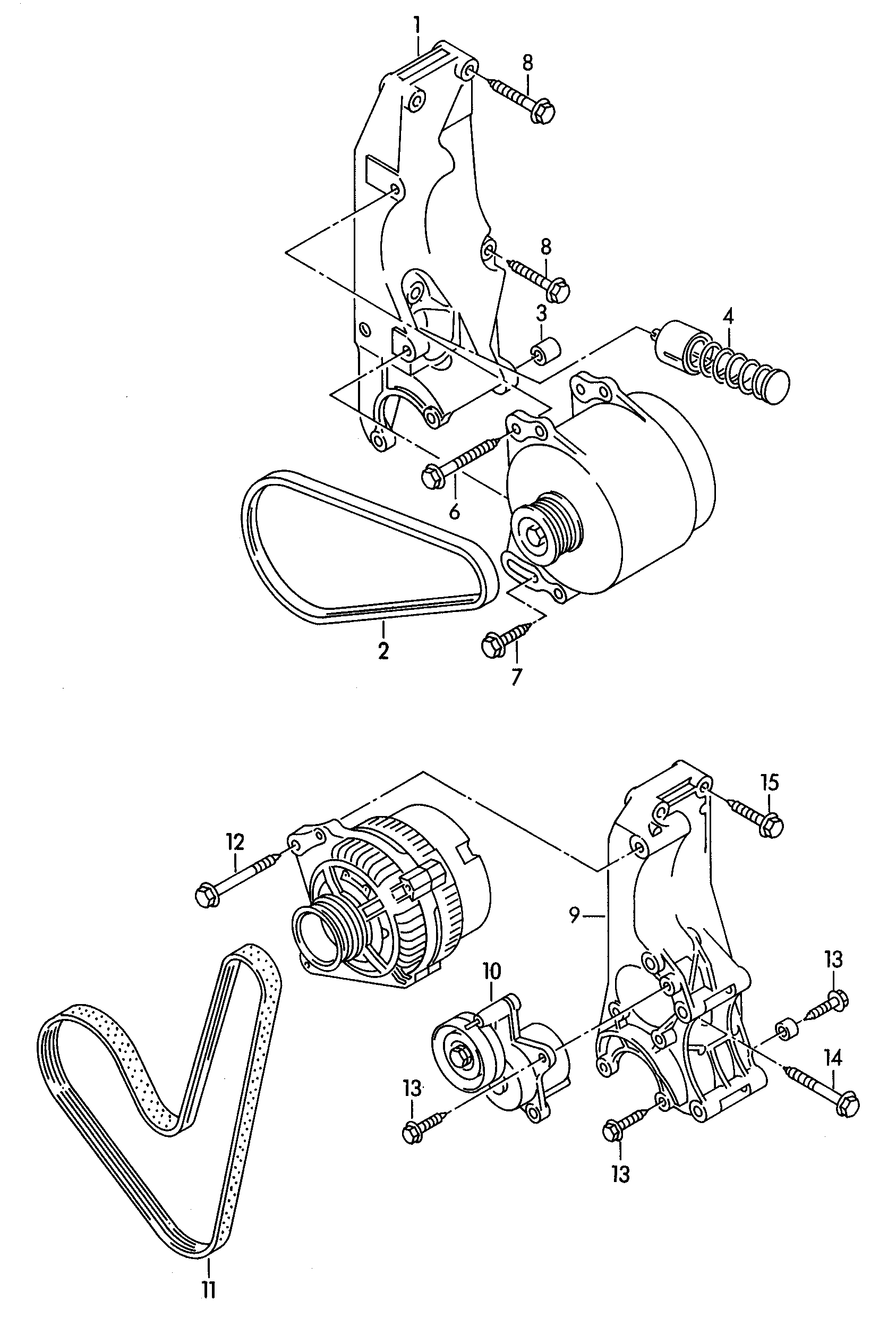

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	connecting and mounting partsfor alternator Poly-V-belt 4-cylinder+ABD	—
	connecting and mounting partsfor alternator 4-cylinder+ABD	—
	connecting and mounting partsfor alternatorfor models with powersteering Poly-V-belt 4-cylinder+ABD	—
(10)	Belt tensioner damper F 1 H-S-120 001>>*	030 145 299 C
(10)	Belt tensioner damper F 1 H-S-120 001>>*	030 145 299 F
(11)	Poly-V-belt F 1 H-S-120 001>>* 21,18 X 1070 MM 21,18 X 1070 MM	030 145 933 R
(11)	Poly-V-belt F 1 H-S-120 001>>* 21,36 X 1068 MM 21,36 X 1068 MM	030 145 933 E
(11)	Poly-V-belt F 1 H-S-120 001>>* 21,18 X 1070 MM 21,18 X 1070 MM	030 145 933 T
(2)	Poly-V-belt 21,36 X 737 MM 21,36 X 737 MM	030 903 137 K
(9)	bracket for alternator F 1 H-S-120 001>>*	030 145 167 D
1	bracket for alternator	030 903 143 D
10	Belt tensioner damper F >> 1 H-S-120 000*	032 145 299 C
11	Poly-V-belt F >> 1 H-S-120 000* 21,36 X 1100 MM 21,36 X 1100 MM	030 145 933
12	Hex collared bolt M 8 X 85 M 8 X 85	N 101 208 03
13	Hex collared bolt M 8 X 35 M 8 X 35	N 101 953 01
14	Hex collared bolt M 10 X 70 X 32 M 10 X 70 X 32	N 905 970 01
15	bolt, hex. hd. with shoulder,self-locking M 10 X 55 X 32 M 10 X 55 X 32	N 905 969 02
2	Poly-V-belt 21,36 X 737 MM 21,36 X 737 MM	030 903 137 AA
3	bush 8,4 X 18 X 19,5 8,4 X 18 X 19,5	068 903 147 H
4	Tensioning spring	030 903 329
6	Hex collared bolt M 8 X 85 M 8 X 85	N 101 208 03
7	hexagon head bolt (combi) M 8 X 39 M 8 X 39	N 905 649 01
8	Hex collared bolt M 10 X 55 M 10 X 55	N 905 969 01
8	bolt, hex. hd. with shoulder,self-locking M 10 X 55 X 32 M 10 X 55 X 32	N 905 969 02
9	bracket for alternator F >> 1 H-S-120 000*	032 145 167
