Drive shaft — Mk3 Golf Front Axle (1993 - 1996)
Factory title: Volkswagen Golf (1993 - 1996) - Wishbone. Wheel bearing housing. suspension

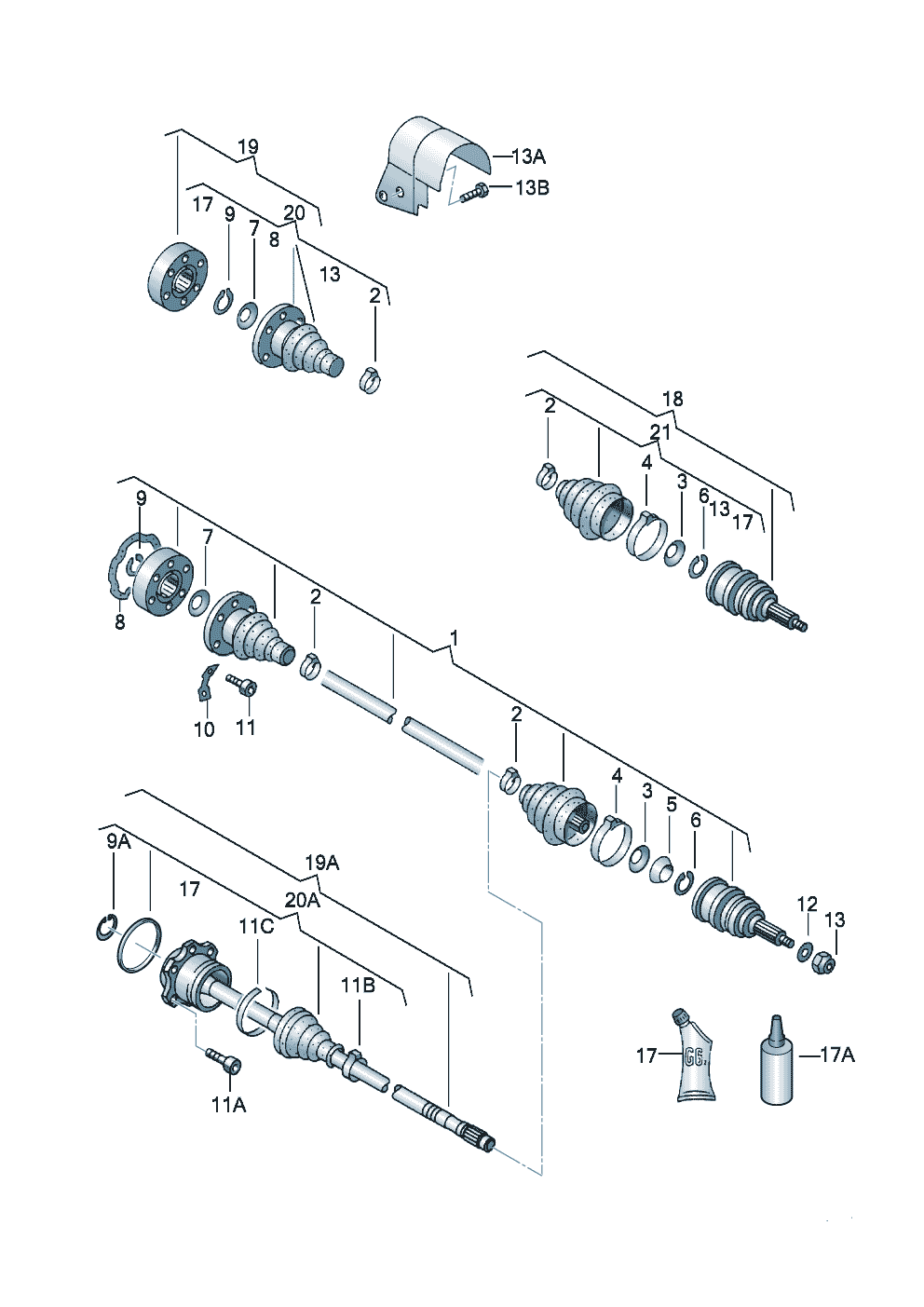

Drive shaft for the Volkswagen Golf Mk3 (1993 - 1996): factory exploded diagram 407020 from the Volkswagen ETKA parts catalogue, group 40 Front axle, listing 57 OEM part numbers including 1H0 407 271 NX, 1HM 407 273 and 1HM 407 274. Parts on this plate carry the engine codes AAA, AAM, AAZ, ABA, ACC, ADC and ADD. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.
Parts on this diagram
This Mk3 Golf plate lists 57 OEM part numbers across 57 numbered positions.
| № | Description | Part number |
|---|---|---|
| (1) | drive shaft with constantvelocity joints F >> 1 H-S-071 072 F 1 H-T-000 001>>for models with airbag also use: N 906 372 02 Automatic+ABAAutomatic+ABA N 906 372 02 | 1H0 407 271 NX |
| (1) | drive shaft with constantvelocity joints F 1 H-P-004 605>> also use:for models with airbag F 1 H-S-071 073>> 1 H-S-999 000 1 J 0 407 357 AN 911 082 01 AAM,ABA,ACC,ADC,ADD,AAZAutomatic+ABA 1 J 0 407 357 AN 911 082 01 AAMABAACCADCADD | 1HM 407 273 |
| (1) | drive shaft with constantvelocity joints F 1 H-P-004 605>>F 1 H-P-004 605>> also use:for models with airbag F 1 H-S-071 073>> 1 H-S-999 000 1 J 0 407 357 AN 911 082 01 Automatic+ABA,ACC,ADC,ADDAutomatic+AAZ,ABA,ACCAutomatic+ABA 1 J 0 407 357 AN 911 082 01 ABAACCADC | 1HM 407 274 |
| (1) | Drive shaft with universaljoints 'ECO'F >> 1 H-S-071 072 F 1 H-T-000 001>>for models with airbag also use:Economy N 906 372 02 Automatic+ABAAutomatic+ABA N 906 372 02 | JZW 407 451 FX |
| (1) | drive shaft with constantvelocity jointsfor models with airbag F >> 1 H-S-071 072 F 1 H-T-000 001>> also use: N 906 372 02 Automatic+ABAAutomatic+ABA N 906 372 02 | 1H0 407 452 X |
| (1) | Drive shaft with universaljoints 'ECO'for models with airbag F >> 1 H-S-071 072 Economy Automatic+ABA | JZW 407 450 TX |
| (1) | drive shaft with constantvelocity joint innerfor models with airbag F >> 1 H-R-060 982 also use: N 906 372 02 Automatic+ABA N 906 372 02 | 1EM 407 273 |
| (1) | drive shaft with constantvelocity joints also use: 1 J 0 407 357 AN 911 082 01 AAA 1 J 0 407 357 AN 911 082 01 AAA | 1HM 407 273 A |
| (1) | drive shaft with constantvelocity joints also use: 1 J 0 407 357 A 893 407 237 AAA 1 J 0 407 357 A 893 407 237 AAA | 1HM 407 274 A |
| (1) | drive shaft with constantvelocity joints F >> 1 H-P-004 604*for models with airbag F 1 H-S-040 190>> 1 H-S-061 512 Automatic+AAZ,ACC,ABA"USA","CDN"+Automatic+ABA ACC | 1H0 407 272 A |
| (1) | Jointed shaft with universaljoint and absorber weight F >> 1 H-P-004 604* AAM,ABA,ACC AAMABAACC | 1H0 407 272 M |
| (1) | drive shaft with constantvelocity joints F >> 1 H-P-004 604* also use: 1 J 0 407 357 AN 911 082 01 AAM,ABA,ACC,AAZ 1 J 0 407 357 AN 911 082 01 AAMAAZABAACC | 1HM 407 274 B |
| (10) | Spacer for drive shaft: 100 MM 100 MM | 1J0 407 357 A |
| (10) | Spacer for drive shaft: 100 MM 100 MM | 211 501 357 |
| (13) | hexagon nut, self-locking F 1 H-T-002 479>> M 20 X 1,5 M 20 X 1,5 | 1HM 407 643 |
| (13) | 12 point socket shouldered nutself-locking M 20 X 1,5 AAA M 20 X 1,5 AAA | N 905 876 02 |
| (13A) | Heat shield platefor manual gearbox | 357 407 721 A |
| (13A) | Heat shield plate F 1 H-S-033 995>>F 1 H-T-000 001>> automatic"USA","CDN"+automatic | 357 407 721 B |
| (18) | Outer joint withassembly parts AAM,ACC,ABA,AAZ,ADC,ADD AAMAAZABAACCADCADD | 1H0 498 340 X |
| (18) | Outer joint withassembly parts AAA AAA | 357 498 099 E |
| (18) | Outer joint withassembly parts F >> 1 H-R-999 000 AAA AAA | 1H0 498 099 A |
| (19) | constant velocity joint withboot, attachment parts andgrease AAA AAA | 535 498 104 |
| (19) | constant velocity joint withboot, attachment parts andgrease ABA,ACC,ADD,AAM,ADC,AAA AAAAAMABAACCADCADD | 321 498 103 C |
| (19) | Universal joint with jointprotect. sleeve, assmbly partsand lub. grease 'ECO'Economy ABA,ACC,ADD,AAM,ADC,AAA AAAAAMABAACCADCADD | JZW 498 350 GX |
| (19A) | drive shaft with constantvelocity joint innerfor models with airbag Automatic+ABA | 1H0 407 418 |
| (20) | joint protective boot withassembly items and grease also use: N 905 876 02 AAA,AAZ,ABA,ACC,ADD N 905 876 02 AAAAAZABAACCADD | 191 498 202 A |
| (20A) | joint protective boot withassembly items and grease 130 MM 130 MM | 4B0 498 201 |
| (21) | joint protective boot withassembly items and grease AAA AAA | 1H0 498 203 A |
| (4) | fillister head bolt (combi.) M 6 X 9 M 6 X 9 | N 904 723 01 |
| 1 | drive shaft with constantvelocity joints F >> 1 H-P-004 604* AAM,ABA,ACC AAMABAACC | 1H0 407 271 A |
| 1 | drive shaft with constantvelocity joints F >> 1 H-P-004 604*for models with airbag F 1 H-S-040 190>> 1 H-S-061 512 also use: 1 J 0 407 357 AN 911 082 01 AAM,ABA,ACCAutomatic+ABA 1 J 0 407 357 AN 911 082 01 AAMABA | 1HM 407 273 |
| 11 | Socket head bolt with innermultipoint head M 8 X 48 M 8 X 48 | 893 407 237 |
| 11 | Socket head bolt with innermultipoint head M 8 X 48 M 8 X 48 | N 911 082 01 |
| 11A | Socket head bolt with innermultipoint headfor models with airbag M 8 X 18 Automatic+ABA M 8 X 18 | N 906 372 02 |
| 11B | clampfor models with airbag 34,6 X 7 X 0,6 Automatic+ABA 34,6 X 7 X 0,6 | N 102 077 01 |
| 11C | clampfor models with airbag 93,5 X 7 X 0,6 Automatic+ 93,5 X 7 X 0,6 | N 906 601 01 |
| 12 | fitted washer 21 X 4 21 X 4 | 171 407 277 |
| 13 | hexagon nut, self-locking M 20 X 1,5 AAZ,ABA,ACC,ADD M 20 X 1,5 AAZABAACCADD | 171 407 643 A |
| 13A | Heat shield plate F >> 1 H-S-033 994 automatic | 357 407 721 |
| 13A | Heat shield plate F >> 1 H-S-033 994 F >> 1 H-S-999 000 automatic"USA","CDN"+automatic | 357 407 721 B |
| 17 | high temperature grease 120 G 120 G | G 000 633 |
| 17 | high temperature grease 120 G 120 G | G 052 133 A3 |
| 19 | constant velocity joint withboot, attachment parts andgrease also use: N 905 876 02 AAA N 905 876 02 AAA | 191 498 103 C |
| 19 | constant velocity joint withboot, attachment parts andgrease also use: 171 407 643 A AAA 171 407 643 A AAA | 1K0 498 103 |
| 19A | drive shaft with constantvelocity joint innerfor models with airbag Automatic+ABA | 1H0 407 417 |
| 2 | clamp 32 X 10 X 0,8 32 X 10 X 0,8 | N 904 425 01 |
| 20 | joint protective boot withassembly items and grease also use: N 905 876 02 AAA,AAZ,ABA,ACC,ADD N 905 876 02 AAAAAZABAACCADD | 191 498 201 B |
| 21 | joint protective boot withassembly items and grease also use: 171 407 643 A AAM,ABA,ACC,ADC,ADD,AAA 171 407 643 A AAAAAMABAACCADCADD | 1K0 498 203 |
| 21 | joint protective boot withassembly items and grease AAM,ABA,ACCADC,ADD AAMABAADD | 1H0 498 203 |
| 3 | Belleville spring | 321 407 287 |
| 4 | clamp 92,5 X 10 X 1 92,5 X 10 X 1 | N 907 724 01 |
| 5 | thrust ring 25,1 X 6,95 25,1 X 6,95 | 321 407 295 A |
| 6 | snap ring | 171 407 297 C |
| 7 | Belleville spring(internal gears) | 113 501 327 A |
| 8 | Sealing plate for drive shaft: 90 MM 100 MM 90 MM 100 MM | 443 407 309 |
| 8 | Sealing plate for drive shaft: 90 MM 100 MM 90 MM 100 MM | 8D0 407 309 |
| 9 | snap ring 24,5 X 2 24,5 X 2 | 113 517 279 |
From the Type 19 workshop
Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these front axle diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk3
- Model years
- 1993 - 1996
- Generation region
- MEX
- Generation code
- 128
- Engine codes on this plate
- AAA, AAM, AAZ, ABA, ACC, ADC, ADD
- Factory group
- 40 Front axle
- Factory subgroup
- 407020
