Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1992 generation (RDW). The parts on it carry the engine codes 1Y, 1Z, AAM, AAZ, ABD, ABS and ABU.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Wishbonesuspension wheel bearing housing front automatic — Mk3 Golf Front Axle (1992)

Factory title: Volkswagen Golf (1992 - 1994) - Wishbone. Wheel bearing housing. suspension

Generation: Mk3 1992 (RDW) Group: Front axle Rebuild step 2 Parts: 105 Primary OEM: 1H0 615 448 0 1C, 161 867 299 0 1C, 1H0 615 447 0 1C

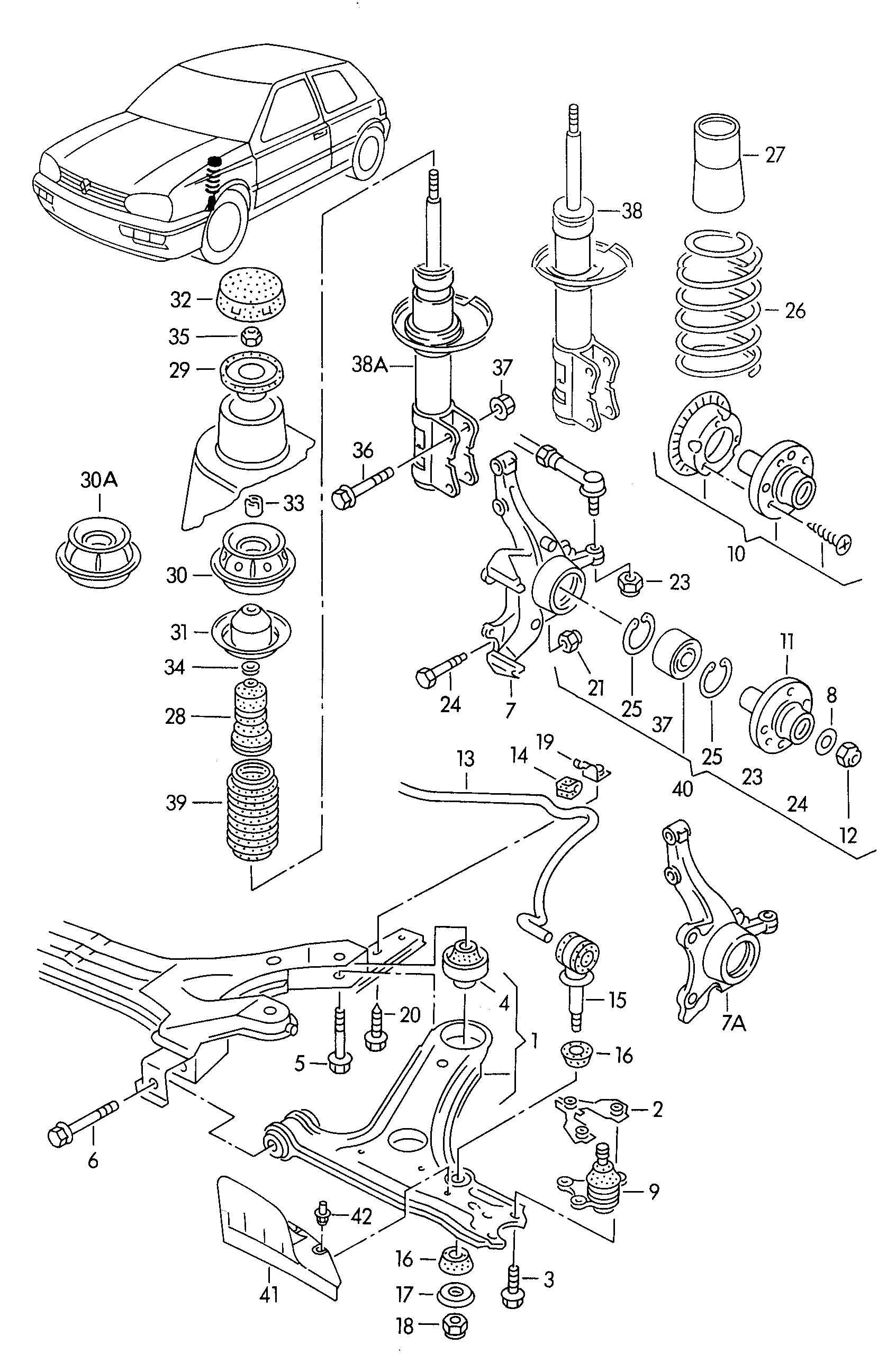

Wishbonesuspension wheel bearing housing front automatic for the Volkswagen Golf Mk3 (1992): factory exploded diagram 407010 from the Volkswagen ETKA parts catalogue, group 40 Front axle, listing 104 OEM part numbers across 105 catalogued positions including 1H0 615 448 0 1C, 161 867 299 0 1C and 1H0 615 447 0 1C. Parts on this plate carry the engine codes 1Y, 1Z, AAM, AAZ, ABD, ABS and ABU. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 104 OEM part numbers across 105 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Satin black 1Y	1H0 615 448 0 1C
	Satin black 1Y	161 867 299 0 1C
	Satin black 1Y	1H0 615 447 0 1C
	Wishbonesuspension Wheel bearing housing front ABD,AAM,ABS,1 Y,AAZ,ABU,1 Z;"J..":2 E;Automatic+2 E front 1YAAMAAZABDABSABU	—
	Front/centre/rear 1Y	357 614 150 E OT
-	rotor for speed sensorfor ABS anti-lock braking sys 1Y	357 614 150
-	Bonded rubber bush 1Y	357 407 182
-	rotor for speed sensorfor ABS anti-lock braking sys 1Y	357 614 150
-	Bungs For vehicles without anti-lock braking system 18 MM 18 MM 1Y	191 501 159
-	Deep groove ball thrust bearngfor models withheavy duty suspension 1Y	1J0 412 249
-	Deep groove ball thrust bearngfor models withheavy duty suspension 1Y	357 412 249
(14)	Rubber bush 1Y	1H0 411 314
(26)	Coil springfor models withheavy duty suspension 2 paint marks 1 paint mark 1Y	357 411 105 B
(26)	Coil spring 3 paint marks 1 paint mark GT:ABS ABS	191 411 105 M
(26)	Coil spring 2 paint marks 1 paint mark AAZ AAZ	357 411 105 B
(26)	Coil spring 2 paint marks 1 paint mark AAM,AAZ,ABS,1 Z;GT:ABS;Automatic+2 E;"J..":2 E AAMAAZABS	191 411 105 P
(26)	Coil spring 3 paint marks 1 paint mark AAM,AAZ,ABS,1 Y,1 Z;Automatic+2 E;"J..":2 E 1YAAMAAZABS	191 411 105 Q
(26)	Coil spring 1 paint mark 1 paint mark AAM,ABU,ABS,1 Z;GT:ABS;Automatic+2 E;"J..":2 E AAMABSABU	191 411 105 N
(26)	Coil spring 1 paint mark 1 paint mark ABD ABD	191 411 105 K
(26)	Coil springfor models withheavy duty suspension 3 paint marks 2 paint marks 1Y	357 411 105 F
(26)	Coil springfor models withheavy duty suspension 3 paint marks 1 paint mark 1Y	357 411 105 E
(26)	Coil springfor models withheavy duty suspension 2 paint marks 3 paint marks 1Y	357 411 105 D
(26)	Coil springfor models withheavy duty suspension 2 paint marks 2 paint marks 1Y	357 411 105 C
(29)	Stopfor models withheavy duty suspension 1Y	357 412 319 B
(30)	suspension strut storagefor models withheavy duty suspension 1Y	357 412 331 A
(31)	spring discfor models withheavy duty suspension 1Y	1H0 412 341
(32)	Cap 1Y	1H0 412 359
(33)	Threaded bushfor models withheavy duty suspension M 14 X 1,5 M 14 X 1,5 1Y	1H0 412 365 A
(35)	hexagon nut, self-locking F ..-R-400 001>>* M 14 X 1,5 M 14 X 1,5 1Y	N 903 536 03
(35)	hexagon nut, self-locking F ..-R-400 001>>* AM 14 X 1,5 AM 14 X 1,5 1Y	N 903 536 01
(38)	Gas shock absorber 'ECO'Economy(use in pairs only) GOLF:ABD ABD	JZW 413 031 C
(38A)	Gas shock absorber 'ECO'Economy(use in pairs only) 1 Z;GT:ABS;Automatic+2 E;"J..":2 E 1Y	JZW 413 031 C
(38A)	Shock absorbersfor models withheavy duty suspension 1Y	1H0 413 031 L
(38A)	Gas shock absorber 'ECO'for models withheavy duty suspension Economy(use in pairs only) 20 MM 20 MM 1Y	JZW 413 031 AA
(38A)	Gas shock absorber 'ECO'Economy(use in pairs only) ABD,AAM,1 Y,ABU,ABS;Diesel eng.+AAZ 1YAAMABDABU	JZW 413 031 C
(38A)	Shock absorbers ABD,AAM,1 Y,ABU,ABS;Diesel eng.+AAZ 1YAAMABDABU	1H0 413 031 A
(38A)	Shock absorbers ABD,AAM,1 Y,ABU,ABS;Diesel eng.+AAZ 1YAAMABDABU	1H0 413 031 C
(39)	Bellowsfor models withheavy duty suspension 228,5 MM 228,5 MM 1Y	1H0 413 175
(41)	Air guide 1Y	1H0 615 448
(7)	Wheel bearing housing with -brake carrier ABD,AAM,ABS,1 Y,AAZ,ABU 1YAAMAAZABDABSABU	191 407 256 C
(7)	Wheel bearing housing with -brake carrierfor models with anti-lockbrake system -abs- ABD,AAM,ABS,1 Y,AAZ,ABU 1YAAMAAZABDABSABU	191 407 255 C
(7)	Wheel bearing housing ABD,AAM,ABS,1 Y,AAZ,ABU 1YAAMAAZABDABSABU	191 407 256 D
(7)	Wheel bearing housing with -brake carrierfor models with anti-lockbrake system -abs- ABD,AAM,ABS,1 Y,AAZ,ABU 1YAAMAAZABDABSABU	191 407 256 C
(7A)	Wheel bearing housing 1 Z 1Z	357 407 256 C
(7A)	Wheel bearing housing Brake disc (vented) 2 E;GT:ABS 1Y	357 407 256 C
(7A)	Wheel bearing housing Brake disc (vented)for models with anti-lockbrake system -abs- 2 E;GT:ABS 1Y	357 407 256 C
1	Wishbone 1Y	1H0 407 151
10	wheel hub with rotorfor models with anti-lockbrake system -abs- 4/100 4/100 1Y	357 407 613 B
11	Wheel hub 4/100 4/100 1Y	357 407 615
12	hexagon nut, self-locking M 20 X 1,5 M 20 X 1,5 1Y	171 407 643 A
13	Anti-roll bar also use: 21,5 MM 1 H 0 411 314 21,5 MM 1 H 0 411 314 1Y	1H9 411 309
14	Rubber bush 1Y	191 411 314
15	Coupling rod also use: N 011 184 9 N 011 184 9 1Y	191 411 315 B
16	bearing ring 1Y	6N0 411 329
16	bearing ring 1Y	191 411 329
17	cup spacer 1Y	191 411 331
18	hexagon nut, self-locking M 8 M 8 1Y	N 011 184 9
19	Clamp 1Y	191 411 334
2	Retaining plate 1Y	191 407 175
20	Hex collared bolt M 8 X 18 M 8 X 18 1Y	N 019 538 2
21	Hexagon collar nutself-locking M 10 M 10 1Y	N 102 861 02
21	hexagon nut, self-locking M 10 M 10 1Y	N 102 951 01
23	hexagon nut, self-locking M 12 X 1,5 M 12 X 1,5 1Y	N 903 213 01
23	hexagon nut, self-locking M 12 X 1,5 M 12 X 1,5 1Y	N 903 213 02
24	Hexagon bolt M 10 X 50 M 10 X 50 1Y	N 903 289 01
24	Hexagon bolt M 10 X 50 X 24 M 10 X 50 X 24 1Y	N 034 778 4
25	Securing ring 72 X 2 72 X 2 1Y	N 903 293 01
26	Coil spring 2 paint marks ABD,ABU ABDABU	1H0 411 105 A
27	Protective sleeve 1Y	357 412 135
28	rubber stop forshock absorber 84 X 18,5 84 X 18,5 1Y	357 412 303 E
29	Stop 1Y	1H0 412 319 B
3	Hex collared bolt M 8 X 26 M 8 X 26 1Y	N 101 277 06
3	Hexagon bolt M 8 X 26 M 8 X 26 1Y	N 101 277 02
30	suspension strut storage ABD,ABU,AAM AAMABDABU	191 412 329
30A	suspension strut storage Automatic+2 E;"J..":2 E 1Y	357 412 329
30A	suspension strut storage ABS,1 Y,AAZ,1 Z 1Y1ZAAZABS	357 412 329
31	spring disc 1Y	191 412 341
33	Threaded bush M 14 X 1,5 M 14 X 1,5 1Y	811 412 365
34	Washer 1Y	171 412 369
35	hexagon nut, self-locking F >> ..-R-400 000* M 14 X 1,5 M 14 X 1,5 1Y	N 022 150 1
36	Hex collared bolt M 12 X 1,5 X 58 X 25 M 12 X 1,5 X 58 X 25 1Y	N 101 740 02
36	Hex collared bolt BM 12 X 1,5 X 58 BM 12 X 1,5 X 58 1Y	N 101 740 01
37	Hexagon collar nutself-locking M 12 X 1,5 M 12 X 1,5 1Y	N 903 237 03
37	Hexagon collar nutself-locking M 12 X 1,5 M 12 X 1,5 1Y	N 903 237 04
38	Shock absorber withoutprotective sleeve GOLF:ABD ABD	1L0 413 031 C
38	Shock absorbers GOLF:ABD ABD	1H0 413 031 A
38A	Shock absorbers 1 Z;GT:ABS;Automatic+2 E;"J..":2 E 1Y	1H0 413 031 A
39	Bellows 172,5 MM 172,5 MM 1Y	357 413 175
4	Bonded rubber bush 1Y	191 407 181 E
4	Bonded rubber bush 1Y	191 407 181 D
40	Wheel bearing with assemblyparts 1Y	357 498 625 B
41	Air guide 1Y	1H0 615 447
42	Spreader rivet 8 X 12 8 X 12 1Y	N 038 549 1
42	Clip 1Y	161 867 299
5	Hexagon bolt M 12 X 1,5 X 78 M 12 X 1,5 X 78 1Y	N 102 078 03
5	Hexagon bolt M 12 X 1,5 X 78 M 12 X 1,5 X 78 1Y	N 102 078 01
6	Hexagon bolt M 12 X 1,5 X 82 M 12 X 1,5 X 82 1Y	N 904 840 03
6	Hexagon bolt M 12 X 1,5 X 82 M 12 X 1,5 X 82 1Y	N 904 840 01
7	Wheel bearing housing with -brake carrier ABD,AAM,ABS,1 Y,AAZ,ABU 1YAAMAAZABDABSABU	191 407 255 C
7	Wheel bearing housing with -brake carrier ABD,AAM,ABS,1 Y,AAZ,ABU 1YAAMAAZABDABSABU	191 407 255 D
7A	Wheel bearing housing Brake disc (vented)for models with anti-lockbrake system -abs- 2 E;GT:ABS 1Y	357 407 255 C
7A	Wheel bearing housing 1 Z 1Z	357 407 255 C
7A	Wheel bearing housing Brake disc (vented) 2 E;GT:ABS 1Y	357 407 255 C
8	fitted washer 1Y	171 407 277
9	Guide joint 1Y	357 407 365

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these front axle diagrams are drawn from.

Wait for it…Mk2 Gti 16v Drivetrain and engine Rebuild! #mk2golf #16v #classicparts Mk2 GTI 16v drivetrain and engine rebuild in the Type 19 workshop.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1992
Generation region: RDW
Generation code: 121
Engine codes on this plate: 1Y, 1Z, AAM, AAZ, ABD, ABS, ABU
Variant tags: diesel
Factory group: 40 Front axle
Factory subgroup: 407010
