Drive shaftfor automatic gearbox front aaa abf — Mk3 Golf Front Axle (1995)

Factory title: Volkswagen Golf (1995) - Wishbone. Wheel bearing housing. suspension

Generation: Mk3 1995 (RDW) Group: Front axle Rebuild step 2 Parts: 37 Primary OEM: 1H0 407 272 PX, 1H0 407 272 CX, 1H0 407 272 C

Drive shaftfor automatic gearbox front aaa abf for the Volkswagen Golf Mk3 (1995): factory exploded diagram 407044 from the Volkswagen ETKA parts catalogue, group 40 Front axle, listing 36 OEM part numbers across 37 catalogued positions including 1H0 407 272 PX, 1H0 407 272 CX and 1H0 407 272 C. Parts on this plate carry the engine codes AAA and ABF. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 36 OEM part numbers across 37 numbered positions.

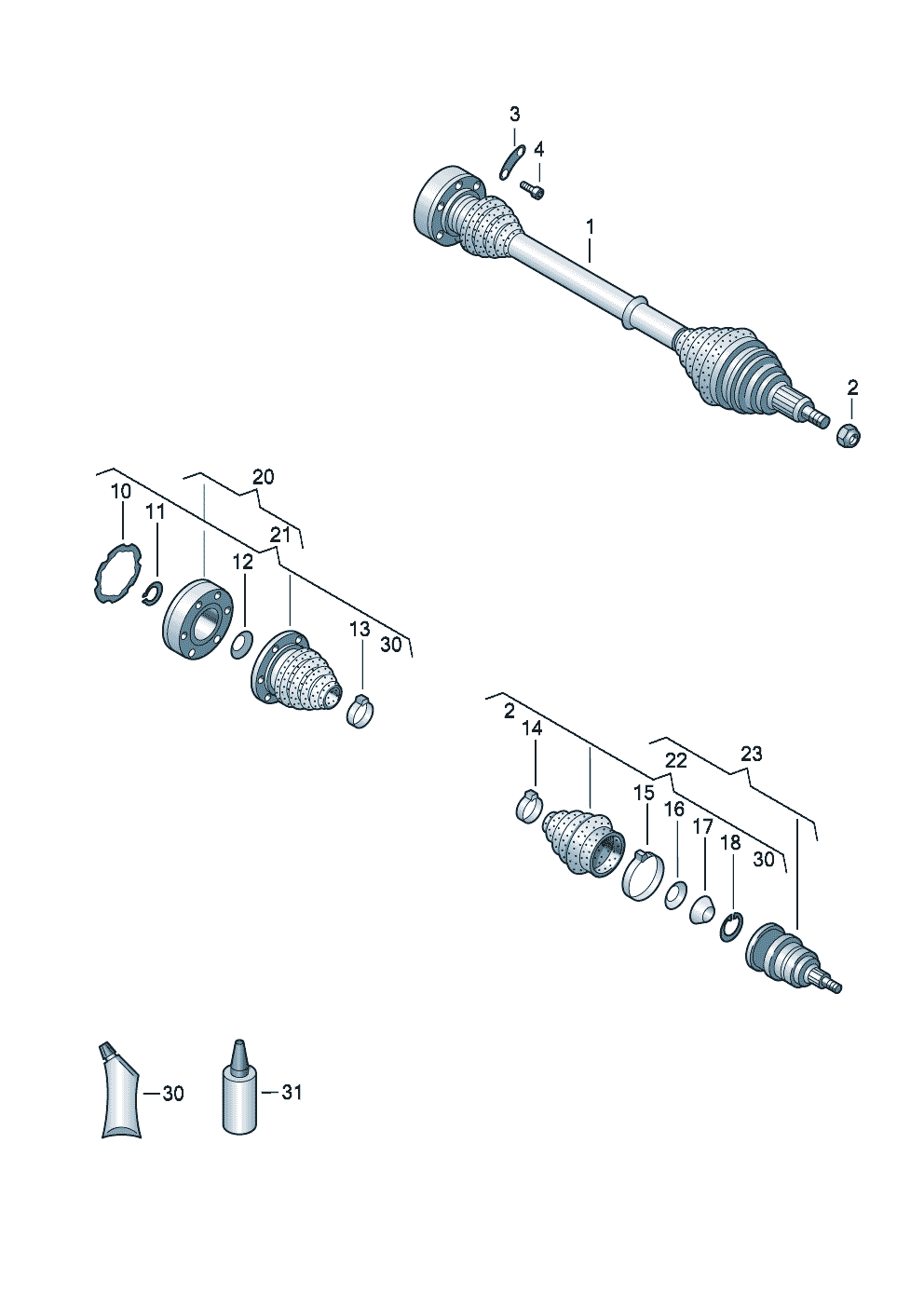

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Drive shaftfor automatic gearbox front AAA,ABF front AAAABF	—
(1)	drive shaft with constantvelocity joints	1H0 407 272 PX
(1)	drive shaft with constantvelocity joints	1H0 407 272 CX
(1)	drive shaft with constantvelocity joints	1H0 407 272 C
(20)	Universal joint with jointprotect. sleeve, assmbly partsand lub. grease 'ECO' also use:Economy N 905 876 02 N 905 876 02	JZW 498 350 GX
(20)	constant velocity joint withboot, attachment parts andgrease	321 498 103 CX
(21)	joint protective boot withassembly items and grease also use: N 905 876 02 N 905 876 02	191 498 202 A
(30)	high temperature grease 120 G 120 G	G 052 133 A3
(31)	Locking fluidfor securing for drive shaftwheel bearing housing	D 185 400 A3
1	drive shaft with constantvelocity joints	1H0 407 271 C
1	drive shaft with constantvelocity joints	1H0 407 271 CX
10	Sealing plate	8D0 407 309
11	snap ring 24,5 X 2 24,5 X 2	113 517 279
12	Belleville spring(internal gears)	113 501 327 A
13	clamp 32 X 10 X 0,8 32 X 10 X 0,8	N 904 425 01
14	clamp 32 X 10 X 0,8 32 X 10 X 0,8	N 904 425 01
15	clamp 92 X 10 X 1 92 X 10 X 1	N 904 424 01
15	clamp 92,5 X 10 X 1 92,5 X 10 X 1	N 907 724 01
16	Belleville spring 34 X 25 X 2,2 34 X 25 X 2,2	321 407 287
17	thrust ring 25,1 X 6,95 25,1 X 6,95	321 407 295 A
18	snap ring 25,1 X 2 25,1 X 2	171 407 297 C
2	12 point socket shouldered nutself-locking M 20 X 1,5 M 20 X 1,5	N 905 876 02
20	constant velocity joint withboot, attachment parts andgrease also use: N 905 876 02 N 905 876 02	1K0 498 103 X
20	constant velocity joint withboot, attachment parts andgrease	191 498 103 CX
21	joint protective boot withassembly items and grease also use: N 905 876 02 N 905 876 02	1K0 498 201
21	joint protective boot withassembly items and grease	191 498 201 B
22	joint protective boot withassembly items and grease	1H0 498 203 A
22	joint protective boot withassembly items and grease also use: N 905 876 02 N 905 876 02	1K0 498 203
23	Outer joint withassembly parts also use: N 905 876 02 N 905 876 02	357 498 099 EX
23	Outer joint withassembly parts	357 498 099 E
3	Spacer	211 501 357
3	Spacer	1J0 407 357 A
30	high temperature grease 90 G 90 G	G 052 133 A2
31	sealant 125 G 125 G	D 454 300 A2
31	Locking fluidfor securing for drive shaftwheel bearing housing	D 185 400 A2
4	Socket head bolt with innermultipoint head M 8 X 48 M 8 X 48	893 407 237
4	Socket head bolt with innermultipoint head M 8 X 48 M 8 X 48	N 911 082 01
