Drive shaft front ecomatic aaz abs aam adz aep j ady — Mk3 Golf Front Axle (1995)
Factory title: Volkswagen Golf (1995) - Wishbone. Wheel bearing housing. suspension

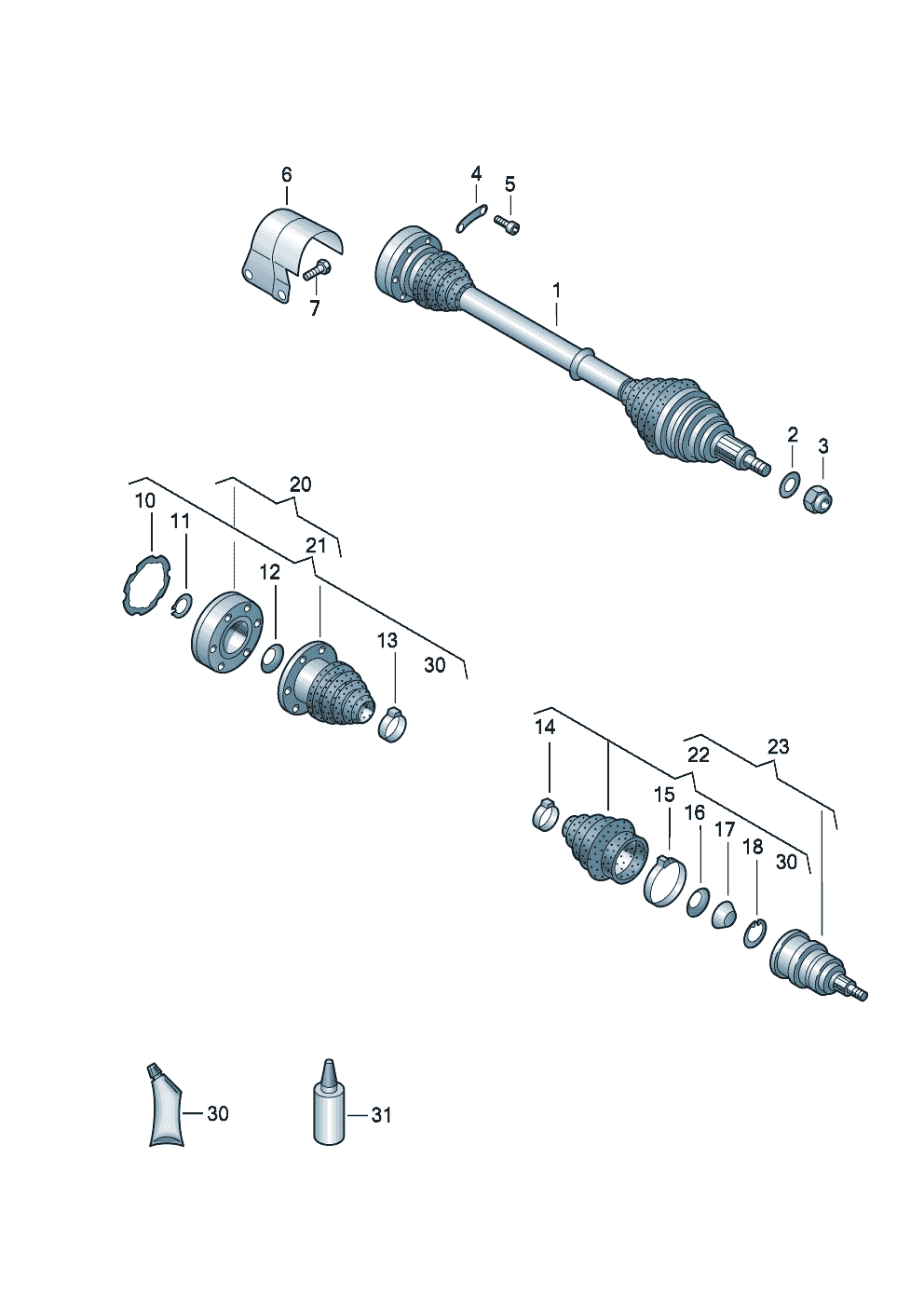

Drive shaft front ecomatic aaz abs aam adz aep j ady for the Volkswagen Golf Mk3 (1995): factory exploded diagram 407026 from the Volkswagen ETKA parts catalogue, group 40 Front axle, listing 38 OEM part numbers across 39 catalogued positions including 1H0 407 272 M, 1H0 407 272 A and JZW 407 450 AX. Parts on this plate carry the engine codes 1Y, AAM, AAZ, ABS and ADZ. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.
Parts on this diagram
This Mk3 Golf plate lists 38 OEM part numbers across 39 numbered positions.
| № | Description | Part number |
|---|---|---|
| Drive shaft front AAZ,ABS,AAM,ADZ,AEP;"J.."+ADY,2 E"AUS"+ASY;ecomatic:1 Y front AAMAAZABSADZ | — | |
| (1) | Jointed shaft with universaljoint and absorber weight 1Y | 1H0 407 272 M |
| (1) | drive shaft with constantvelocity joints 1Y | 1H0 407 272 A |
| (1) | Drive shaft with universaljoints 'ECO'Economy 1Y | JZW 407 450 AX |
| (20) | constant velocity joint withboot, attachment parts andgrease 1Y | 321 498 103 CX |
| (20) | Universal joint with jointprotect. sleeve, assmbly partsand lub. grease 'ECO'Economy 1Y | JZW 498 350 GX |
| (21) | joint protective boot withassembly items and grease also use: 171 407 643 A 171 407 643 A 1Y | 191 498 202 A |
| (31) | Locking fluidfor securing for drive shaftwheel bearing housing 1Y | D 185 400 A3 |
| 1 | drive shaft with constantvelocity joints 1Y | 1H0 407 271 A |
| 1 | Drive shaft with universaljoints 'ECO'Economy 1Y | JZW 407 449 AX |
| 10 | Sealing plate 1Y | 8D0 407 309 |
| 11 | snap ring 24,5 X 2 24,5 X 2 1Y | 113 517 279 |
| 12 | Belleville spring(internal gears) 1Y | 113 501 327 A |
| 13 | clamp 32 X 10 X 0,8 32 X 10 X 0,8 1Y | N 904 425 01 |
| 14 | clamp 32 X 10 X 0,8 32 X 10 X 0,8 1Y | N 904 425 01 |
| 15 | clamp 92 X 10 X 1 92 X 10 X 1 1Y | N 904 424 01 |
| 15 | clamp 92,5 X 10 X 1 92,5 X 10 X 1 1Y | N 907 724 01 |
| 16 | Belleville spring 34 X 25 X 2,2 34 X 25 X 2,2 1Y | 321 407 287 |
| 17 | thrust ring 25,1 X 6,95 25,1 X 6,95 1Y | 321 407 295 A |
| 18 | snap ring 25,1 X 2 25,1 X 2 1Y | 171 407 297 C |
| 2 | fitted washer 21 X 4 21 X 4 1Y | 171 407 277 |
| 20 | constant velocity joint withboot, attachment parts andgrease also use: 171 407 643 A 171 407 643 A 1Y | 1K0 498 103 X |
| 20 | constant velocity joint withboot, attachment parts andgrease 1Y | 191 498 103 CX |
| 21 | joint protective boot withassembly items and grease also use: 171 407 643 A 171 407 643 A 1Y | 1K0 498 201 |
| 21 | joint protective boot withassembly items and grease 1Y | 191 498 201 B |
| 22 | joint protective boot withassembly items and grease 1Y | 1H0 498 203 |
| 22 | joint protective boot withassembly items and grease also use: 171 407 643 A 171 407 643 A 1Y | 1K0 498 203 |
| 23 | Outer joint withassembly parts Economy 1Y | JZW 498 340 BX |
| 23 | Outer joint withassembly parts 1Y | 1H0 498 099 |
| 3 | hexagon nut, self-locking M 20 X 1,5 M 20 X 1,5 1Y | 171 407 643 A |
| 30 | high temperature grease 120 G 120 G 1Y | G 052 133 A3 |
| 31 | Locking fluidfor securing for drive shaftwheel bearing housing 1Y | D 185 400 A2 |
| 31 | sealant 125 G 125 G 1Y | D 454 300 A2 |
| 4 | Spacer 1Y | 211 501 357 |
| 4 | Spacer 1Y | 1K0 407 357 C |
| 5 | Socket head bolt with innermultipoint head M 8 X 48 M 8 X 48 1Y | N 911 082 01 |
| 5 | Socket head bolt with innermultipoint head M 8 X 48 M 8 X 48 1Y | 893 407 237 |
| 6 | Heat shield plate 1Y | 357 407 721 B |
| 7 | Hexagon bolt M 10 X 18 M 10 X 18 1Y | N 010 251 6 |
From the Type 19 workshop
Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these front axle diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk3
- Model years
- 1995
- Generation region
- RDW
- Generation code
- 159
- Engine codes on this plate
- 1Y, AAM, AAZ, ABS, ADZ
- Variant tags
- diesel
- Factory group
- 40 Front axle
- Factory subgroup
- 407026
