Which VW part numbers are on the seat backrest heated jetta diagram for the Mk3 Golf?

This diagram lists 6 OEM part numbers for the Mk3 Golf. The first three are 191 972 733, 111 971 940 A and 1H0 963 555 B.

Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1993 - 1996 generation (MEX). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Seat backrest heated jetta — Mk3 Golf Front Seats (1993 - 1996)

Factory title: Volkswagen Golf (1993 - 1996) - Seat and backrest, heated

Generation: Mk3 1993 - 1996 (MEX) Group: Front seats Parts: 7 Primary OEM: 191 972 733, 111 971 940 A, 1H0 963 555 B

Seat backrest heated jetta for the Volkswagen Golf Mk3 (1993 - 1996): factory exploded diagram 963010 from the Volkswagen ETKA parts catalogue, group 34 Front seats, listing 6 OEM part numbers across 7 catalogued positions including 191 972 733, 111 971 940 A and 1H0 963 555 B. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 6 OEM part numbers across 7 numbered positions.

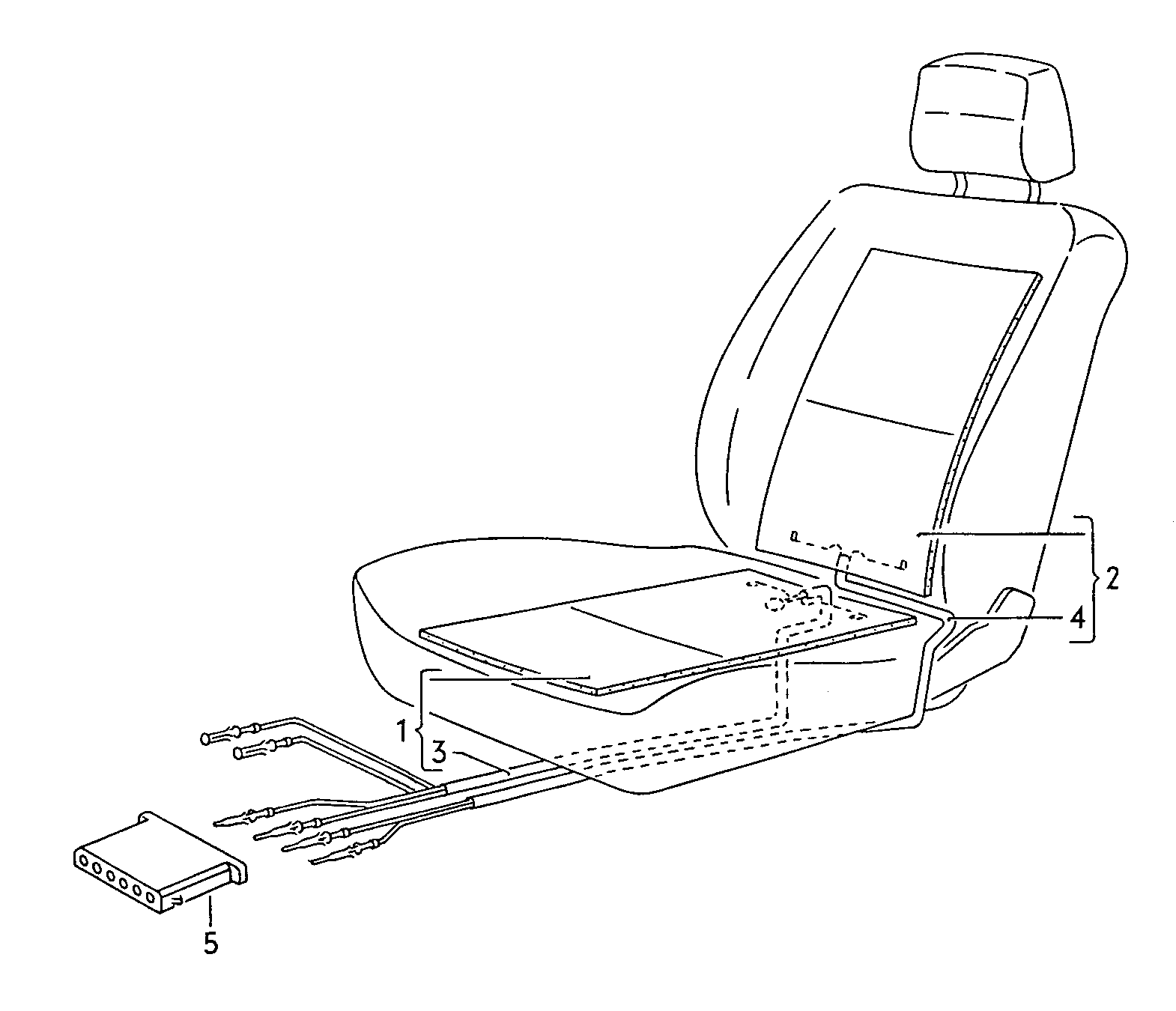

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	seat and backrest,heated JETTA	—
-	Flat contact housing	191 972 733
-	butt connector, watertight,can be welded 0,5-1,0 0,5-1,0	111 971 940 A
(1)	heater element-seat Seat cover(leather/leatherette) JETTA GLX;GTI VR 6	1H0 963 555 B
(1)	heater element-seat Seat covering (fabric) SPORTSVERSION	1H0 963 555 A
1	heater element-seat	1H0 963 555
2	backrest heater element	535 963 557

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these front seats diagrams are drawn from.

Mk2 Golf Restoration Welding work #mk2golf #mechanic #volkswagen #migwelding #carrestoration Mostly typical repair work we see on almost every Mk2 Golf we’ve worked on. Safe to say the Mk3 Golf is pretty similar too!

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1993 - 1996
Generation region: MEX
Generation code: 128
Factory group: 34 Front seats
Factory subgroup: 963010

Related factory diagrams

Other published front seats plates for the Mk3 Golf in this catalogue.

Seat f 1 h s 012 883 f 1 h s 000 001 front 1993 - 1996 · subgroup 881005
Seat front 1997 · subgroup 881000
Seatbackrest head restraint front 1997 · subgroup 881030
Backrest front 1997 · subgroup 881050
Seat backrest heated 1997 · subgroup 963010
Seat backrest heated 1994 - 1997 · subgroup 963010
