Seatbackrest head restraint front — Mk3 Golf Front Seats (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Seat

Generation: Mk3 1997 (RDW) Group: Front seats Parts: 209 Primary OEM: 1H0 881 402 B C LP, 1H0 881 477 A 0 1C, 1H0 881 478 A 0 1C

Seatbackrest head restraint front for the Volkswagen Golf Mk3 (1997): factory exploded diagram 881030 from the Volkswagen ETKA parts catalogue, group 34 Front seats, listing 209 OEM part numbers including 1H0 881 402 B C LP, 1H0 881 477 A 0 1C and 1H0 881 478 A 0 1C. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 209 OEM part numbers across 209 numbered positions.

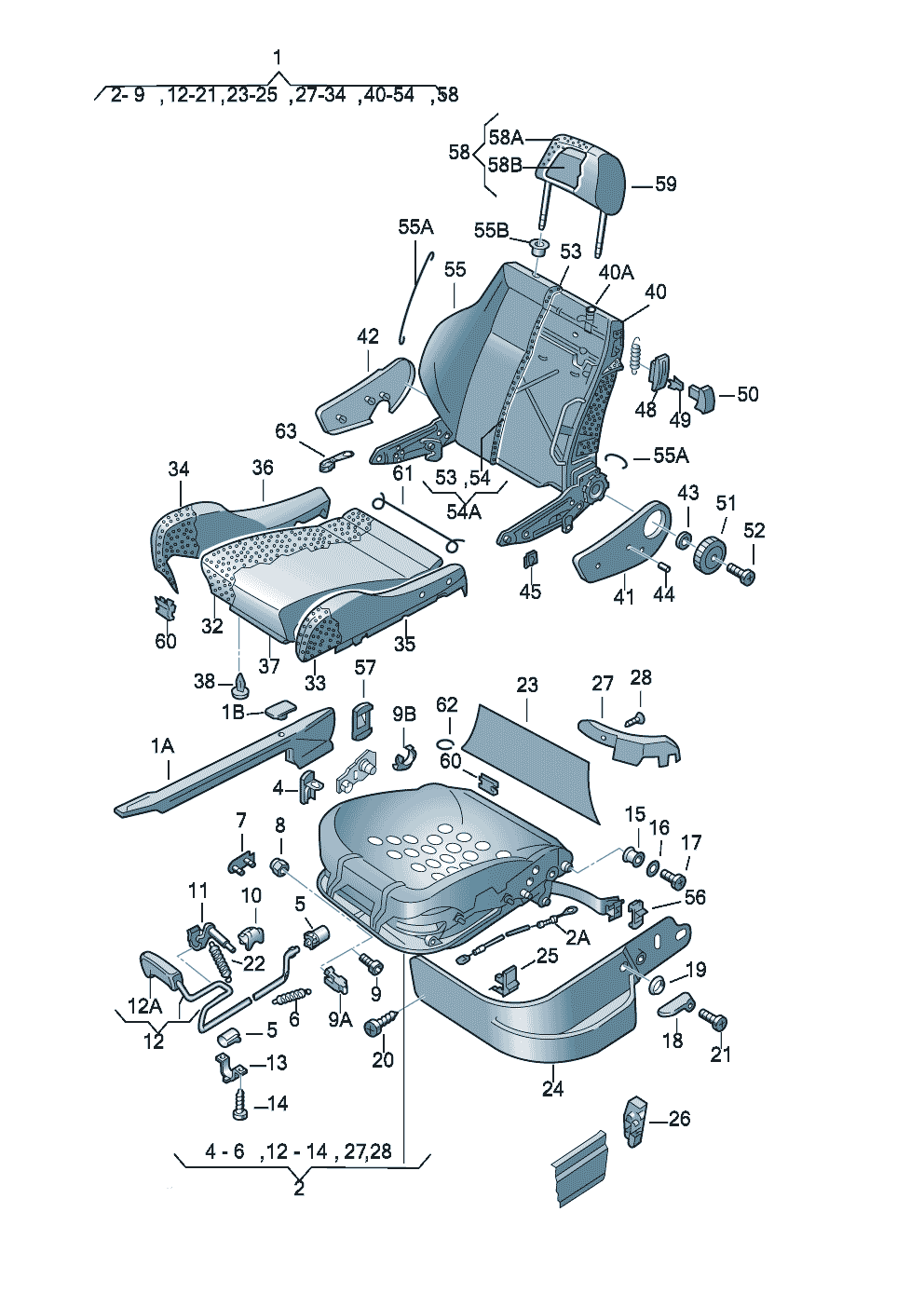

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Black -75,76,77,78, 79 -75,76,77,78, 79	1H0 881 402 B C LP
	Satin black	1H0 881 477 A 0 1C
	Satin black	1H0 881 478 A 0 1C
	black/green -80 EDITION -80	1H0 881 405 BHE BD
	black/green -80 EDITION -80	1H0 881 805 BAE BD
	black/yellow -70 EDITION -70	1H0 881 405 BHE BC
	Yellow/black -75 -75	1H0 881 405 BQE AF
	red/black -76 -76	1H0 881 405 BQE AQ
	Blue/black -77 -77	1H0 881 405 BQE AZ
	Green/black -78 -78	1H0 881 405 BQF AJ
	Black -YE -YE	1H0 881 405 BQF AT
	Black -79 -79	1H0 881 405 BQC LP
	black/blue -60 EDITION -60	1H0 881 805 BAE BB
	Satin black	171 881 449 A 0 1C
	black/red -90 EDITION -90	1H0 881 805 BAE BA
	Black -AY,25 -AY,25	1H0 881 805 BAD TL
	Black	357 881 671 4 FB
	Black	1H0 881 477 0 1C
	Satin black	171 881 500 0 1C
	Black	1H0 881 478 0 1C
	Satin black	1H0 881 480 B 0 1C
	Black	1H0 881 479 A 0 1C
	Black	1H0 881 480 A 0 1C
	Satin black	357 881 087 0 1C
	Black -75,76,77,78, 79 -75,76,77,78, 79	1H0 881 921 R C LP
	Satin black	357 881 088 0 1C
	Black -YA,YB,YC,YD, YE -YA,YB,YC,YD, YE	1H0 881 921 R F AT
	Black -60,70,80,90 EDITION -60,70,80,90	1H0 881 921 F C 29
	Black -AY,25 -AY,25	1H0 881 921 F C 29
	natural colours	191 881 213 9 09
	platinum	171 881 213 B 2 VK
	Green/black -78 -78	1H0 881 805 EKF RD
	Blue/black -77 -77	1H0 881 805 EKF RC
	red/black -76 -76	1H0 881 805 EKF RB
	Yellow/black -75 -75	1H0 881 805 EKF RA
	Black -79 -79	1H0 881 805 EKF MW
	Green/black -78 -78	1H0 881 806 L F RD
	Blue/black -77 -77	1H0 881 806 L F RC
	red/black -76 -76	1H0 881 806 L F RB
	Yellow/black -75 -75	1H0 881 806 L F RA
	Black -79 -79	1H0 881 806 L F MW
	Green/black -78 -78	1H0 881 805 CCF RD
	Blue/black -77 -77	1H0 881 805 CCF RC
	Satin black	171 881 253 0 1C
	red/black -76 -76	1H0 881 805 CCF RB
	Yellow/black -75 -75	1H0 881 805 CCF RA
	Black -79 -79	1H0 881 805 CCF MW
	Black -79 -79	1H0 881 805 BFC LP
	Green/black -78 -78	1H0 881 805 BFF AJ
	Blue/black -77 -77	1H0 881 805 BFE AZ
	red/black -76 -76	1H0 881 805 BFE AQ
	Yellow/black -75 -75	1H0 881 805 BFE AF
	Satin black	1H0 881 253 0 1C
	Satin black	1H0 881 254 0 1C
	Black -YE -YE	1E0 881 805 ANF AT
	Satin black	1H0 881 680 B 41
	black/green -80 -80	1H0 881 805 EJE BD
	black/yellow -70 -70	1H0 881 805 EJE BC
	black/blue -60 -60	1H0 881 805 EJE BB
	black/red -90 -90	1H0 881 805 EJE BA
	Black -AY,25 -AY,25	1H0 881 805 EJD TL
	black/yellow -70 EDITION -70	1H0 881 805 BAE BC
	Black	1H0 881 317 A 0 1C
	Black	1H0 881 318 A 0 1C
	black/green -80 EDITION -80	1H0 881 806 K E BD
	black/yellow -70 EDITION -70	1H0 881 806 K E BC
	Satin black	191 881 347 0 1C
	Satin black	191 881 348 0 1C
	black/blue -60 EDITION -60	1H0 881 806 K E BB
	black/red -90 EDITION -90	1H0 881 806 K E BA
	Black -AY,25 -AY,25	1H0 881 806 K D TL
	black/green -80 EDITION -80	1H0 881 805 CEE BD
	black/yellow -70 EDITION -70	1H0 881 805 CEE BC
	black/blue -60 EDITION -60	1H0 881 805 CEE BB
	Black -AY,25 -AY,25	1H0 881 401 C 29
	black/red -90 EDITION -90	1H0 881 401 E QL
	black/green -80 EDITION -80	1H0 881 401 E QM
	black/blue -60 EDITION -60	1H0 881 401 E QN
	black/yellow -70 . EDITION -70 .	1H0 881 401 E QP
	Black -75,76,77,78, 79 -75,76,77,78, 79	1H0 881 401 B F AT
	Black -75,76,77,78, 79 -75,76,77,78, 79	1H0 881 401 B C LP
	black/red -90 EDITION -90	1H0 881 805 CEE BA
	Black -AY,25 -AY,25	1H0 881 402 C 29
	black/red -90 EDITION -90	1H0 881 402 E QL
	black/green -80 EDITION -80	1H0 881 402 E QM
	black/blue -60 EDITION -60	1H0 881 402 E QN
	black/yellow -70 . EDITION -70 .	1H0 881 402 E QP
	Black -75,76,77,78, 79 -75,76,77,78, 79	1H0 881 402 B F AT
	Satin black	1H0 881 479 B 0 1C
	Black -AY,25 -AY,25	1H0 881 805 CED TL
	Black -AY,25 -AY,25	1H0 881 405 BHD TL
	black/red -90 EDITION -90	1H0 881 405 BHE BA
	black/blue -60 EDITION -60	1H0 881 405 BHE BB
-	registration card for airbag	000 010 227 C
-	seat complete with backrestand headrest (without cover)for models withoutside airbag	1H0 881 023 A
-	seat complete with backrestand headrest (without cover)for models withoutside airbag	1H0 881 024 A
(12)	lever f. seat fore+afr adjust.	1H0 881 232
(15)	Mounting	357 881 299 A
(18)	Handle for seat height adjust.	1H0 881 254
(1A)	Cover for guiderail	357 881 087
(2)	Seat frame	1H0 881 106 H
(2)	Seat frame	1H0 881 105 S
(2)	Seat framefor models withside airbag	1H0 881 106 S
(23)	Seat frame trim	1H0 881 316
(24)	Seat frame trimfor seat frame withheight adjustment	1H0 881 318 A
(26)	Cap for guide rail	191 881 348
(27)	Trim	165 881 338
(35)	Seat cover(leather/leatherette) COLOUR-CONCEPT	1H0 881 401 B
(35)	Seat cover(leather/leatherette) COLOUR-CONCEPT	1H0 881 401 B
(36)	Seat cover(leather/leatherette) COLOUR-CONCEPT	1H0 881 402 B
(36)	Seat cover(leather/leatherette) COLOUR-CONCEPT	1H0 881 402 B
(37)	Seat cover (leather) COLOUR-CONCEPT	1H0 881 405 BQ
(37)	Seat cover (leather) COLOUR-CONCEPT	1H0 881 405 BQ
(40)	backrest frame	1H3 881 046 D
(40)	backrest framefor models withside airbag	1H3 881 045 N
(40)	backrest framefor models withside airbag	1H3 881 046 N
(41)	Trim with hole	1H0 881 478 A
(41)	Trim with hole	1H0 881 478
(42)	Trim with no holes	1H0 881 480 A
(42)	Trim with no holes	1H0 881 479 A
(42)	Trim with no holes	1H0 881 479 B
(42)	Trim with no holes	1H0 881 480 B
(53)	padding for backrestfor models withside airbag	1H0 881 776 C
(55)	backrest cover(leather/leatherette) COLOUR-CONCEPT	1H0 881 805 BF
(55)	backrest cover(leather/leatherette)for models withside airbag also use: 000 010 227 C COLOUR-CONCEPT 000 010 227 C	1H0 881 806 L
(55)	backrest cover (leather/lea-therette) with backrest pocket PR:N 4 M,Q 2 Q	1E0 881 805 AN
(55)	Backrest cover (fabric)for models withside airbag also use: 000 010 227 C 000 010 227 C	1H0 881 805 EJ
(55)	backrest cover(leather/leatherette)for models withside airbag COLOUR-CONCEPT	1H0 881 805 EK
(55)	Backrest cover (fabric)for models withside airbag also use: 000 010 227 C 000 010 227 C	1H0 881 806 K
(55)	backrest cover(leather/leatherette)for models withside airbag also use: 000 010 227 C COLOUR-CONCEPT 000 010 227 C	1H0 881 805 CC
(55)	backrest cover(leather/leatherette) COLOUR-CONCEPT	1H0 881 805 BF
(55)	Backrest cover (fabric)for models withside airbag also use: 000 010 227 C 000 010 227 C	1H0 881 805 CE
(55B)	Sleeve	191 881 962 A
(59)	head restraint cover (leather) COLOUR-CONCEPT	1H0 881 921 R
(59)	head restraint cover (leather) COLOUR-CONCEPT	1H0 881 921 R
(6)	tension spring	321 881 178
(9B)	Clip	357 881 279 A
10	Glide piece	435 881 203 A
11	clinch bolt	171 881 229 B
12	lever f. seat fore+afr adjust.	1H0 881 231
12A	handle	171 881 253
13	Clamp	321 881 240
14	oval head panel screw 3,5 X 13 3,5 X 13	N 013 958 19
14	oval head panel screw ST 3,5 X 13-C ST 3,5 X 13-C	N 013 958 7
16	Washer 6,4 X 18 X 1,6 6,4 X 18 X 1,6	N 011 666 15
16	Washer 6,4 X 18 X 1,6 6,4 X 18 X 1,6	N 011 666 20
17	fillister hd. bolt M 6 X 15 M 6 X 15	N 014 140 5
17	Oval hexagon socket head bolt M 6 X 15 M 6 X 15	N 100 292 06
18	Handle for seat height adjust.	1H0 881 253
19	Cover cap	1H0 881 680
1A	Cover for guiderail	357 881 088
1B	press stud 8,5 X 3,25 8,5 X 3,25	N 902 724 01
2	Seat frame	1H0 881 105 H
20	oval head panel screw 4,8 X 25 4,8 X 25	N 013 972 9
20	oval head panel screw ST 4,8 X 25-C ST 4,8 X 25-C	N 013 972 1
21	fillister hd. bolt M 5 X 18 M 5 X 18	N 014 132 4
22	tension spring	113 881 275 C
23	Seat frame trim	1H0 881 315
24	Seat frame trimfor seat frame withheight adjustment	1H0 881 317 A
25	Clip	1H0 881 247
26	Cap for guide rail	191 881 347
27	Trim	165 881 337
28	oval head panel screw B 4,8 X 13 B 4,8 X 13	N 013 968 1
2A	Cablefor seat frame withheight adjustment	1H0 881 341
32	Seat padding	1H0 881 375 C
33	Seat padding	1H0 881 377
34	Seat padding	1H0 881 378
35	Seat covering (fabric)	1H0 881 401
36	Seat covering (fabric)	1H0 881 402
37	Seat covering (fabric)	1H0 881 405 BH
37	Seat covering (fabric)	1H0 881 405 BH
38	Clip	171 881 449 A
4	Stop buffer	357 881 195
40	backrest frame	1H3 881 045 D
40A	guide for head restraint,adjustable	191 881 939
41	Trim with hole	1H0 881 477
41	Trim with hole	1H0 881 477 A
43	Spacer ring	191 881 493
44	grip pin	171 881 500
45	Retaining washer 8 8	N 900 527 02
48	Trim	191 881 607 A
49	Clip	6H0 881 635
49	Clip	311 881 247
5	Bearing bush	893 881 167
50	knob	191 881 633 B
51	Setting knob	357 881 671
52	fillister hd. bolt M 4 X 12 M 4 X 12	N 014 120 1
53	padding for backrestfor models withoutside airbag	191 881 775 E
53	padding for backrestfor models withside airbag	1H0 881 775 J
54	Padded surfacefor models withoutside airbagfor models withside airbag	191 881 777 A
55	Backrest cover (fabric)	1H0 881 805 BA
55	Backrest cover (fabric)	1H0 881 805 BA
55A	slide for zip fastener 6,4 6,4	8A0 881 451
55B	Sleeve	191 881 962
56	Glide piece	171 881 213 B
57	Glide piece	191 881 213
58	head restraint, adjustablewith padding	191 881 903 D
59	head restraint cover (cloth)	1H0 881 921 F
6	tension spring	321 881 177
60	Clip	867 885 447
61	upholstery wire 2,8 X 368 2,8 X 368	N 901 626 06
62	Clip 20 X 1,8 20 X 1,8	N 015 261 1
7	stop platefor models with passiverestraint system	161 881 200
8	domed cap nut M 6 M 6	N 011 121 4
8	domed cap nut M 6 RI M 6 RI	N 011 121 2
9	Socket head bolt M 6 X 10 M 6 X 10	N 014 750 3
9	Socket head bolt withhexagon socket head M 6 X 10 M 6 X 10	N 014 750 6
9A	detent spring	1H0 881 287
9B	Clip	357 881 280 A
