Seat front — Mk3 Golf Front Seats (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Seat

Generation: Mk3 1997 (RDW) Group: Front seats Parts: 228 Primary OEM: 1H0 881 405 DCB JU, 1H0 881 405 CPG JR, 357 881 087 0 1C

Seat front for the Volkswagen Golf Mk3 (1997): factory exploded diagram 881000 from the Volkswagen ETKA parts catalogue, group 34 Front seats, listing 228 OEM part numbers including 1H0 881 405 DCB JU, 1H0 881 405 CPG JR and 357 881 087 0 1C. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 228 OEM part numbers across 228 numbered positions.

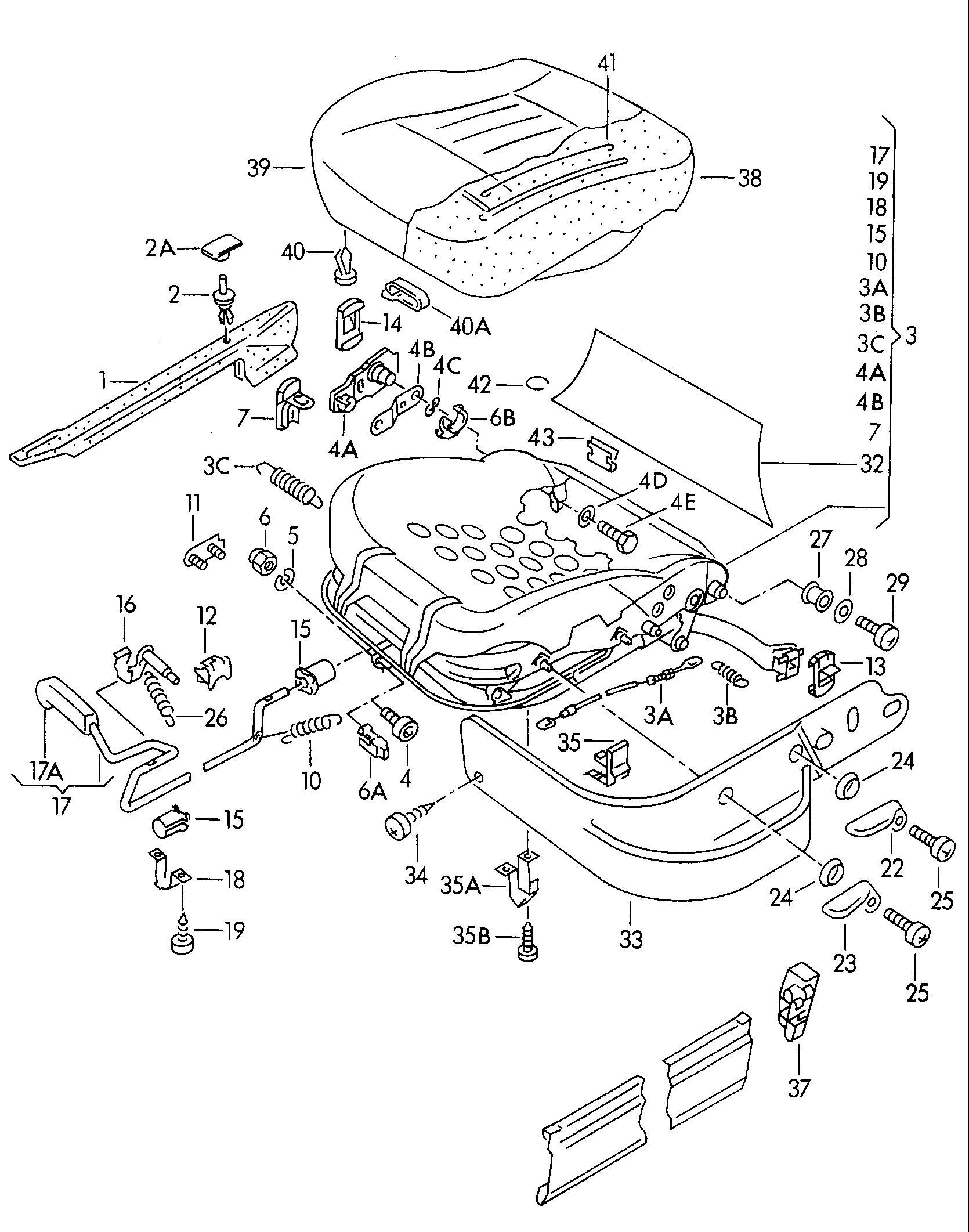

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	beaver -RC -RC	1H0 881 405 DCB JU
	Black -RB -RB	1H0 881 405 CPG JR
	Satin black	357 881 087 0 1C
	Satin black	357 881 088 0 1C
	Satin black	171 881 449 A 0 1C
	Black -81 -81	1H0 881 405 EAG LQ
	red/black -35 -35	1H0 881 405 CSF DK
	red/black -35 -35	1H0 881 405 CKF DK
	Black/red/green -34 -34	1H0 881 405 DTE TH
	Black/red/green -34 -34	1H0 881 405 CCE TH
	Black -31 AREZZO -31	1H0 881 405 BPE NW
	dark grey -BA -BA	1H0 881 405 DFF HY
	dark grey -BA -BA	1H0 881 405 DHF HY
	dark grey -BA -BA	1H0 881 405 CTC EN
	Black -VL,85,86,99 -VL,85,86,99	1H0 881 405 DEC LP
	beaver -VM -VM	1H0 881 405 DEB MA
	beaver -VM -VM	1H0 881 405 CHB MA
	Black -VL,99,85,86 -VL,99,85,86	1H0 881 405 CHC LP
	Black -QB -QB	1H0 881 405 DKF HX
	Black -QB -QB	1H0 881 405 DJF HX
	Black -QB -QB	1H0 881 405 CAB LZ
	bramble -89 -89	1H0 881 405 DDN 25
	bramble -89 -89	1H0 881 405 CJN 25
	Black -XH -XH	1H0 881 405 CQD TN
	Black -XH -XH	1H0 881 405 CED TN
	flint -39 "A..":RABBIT IV -39	1H0 881 405 CMF LE
	black/blue -29 "A..":RABBIT IV -29	1H0 881 405 CMF GZ
	black/grey -24 "A..":RABBIT IV -24	1H0 881 405 CMF GX
	off-black -71 GOLF JOKER,exportmarkets:RABBIT V -71	1H0 881 405 CMF VF
	Black -UB GT SPEZIAL -UB	1H0 881 405 CMF NY
	flint -39 BON JOVI -39	1H0 881 405 CMF LE
	black/blue -29 BON JOVI -29	1H0 881 405 CMF GZ
	black/grey -24 BON JOVI -24	1H0 881 405 CMF GX
	Black -32 MOVIE -32	1H0 881 405 CME PM
	Black -47 "E..":GOLF PLUS -47	1H0 881 405 CME PM
	platinum	171 881 213 B 2 VK
	Black -47 "A..":RABBIT -47	1H0 881 405 CME PM
	natural colours	191 881 213 9 09
	Black -AN,25 -AN,25	1H0 881 405 CMD TL
	flint -39 "A..":RABBIT IV -39	1H0 881 405 CFF LE
	flint -39 BON JOVI -39	1H0 881 405 CFF LE
	black/blue -29 "A..":RABBIT IV -29	1H0 881 405 CFF GZ
	black/grey -24 "A..":RABBIT IV -24	1H0 881 405 CFF GX
	off-black -71 GOLF JOKER,exportmarkets:RABBIT V -71	1H0 881 405 CFF VF
	Black -UB -UB	1H0 881 405 CFF NY
	soft black -89,99 HIGHLINE -89,99	171 881 253 C 82
	Satin black	171 881 253 0 1C
	black/blue -29 BON JOVI -29	1H0 881 405 CFF GZ
	black/grey -24 BON JOVI -24	1H0 881 405 CFF GX
	Black -31 AREZZO -31	1H0 881 405 CFE NW
	Black -47 "E..":GOLF PLUS -47	1H0 881 405 CFE PM
	soft black -89,99 HIGHLINE -89,99	1H0 881 253 C 82
	flint -39 -39	1H0 881 253 Y 01
	Black -47 "A..":RABBIT -47	1H0 881 405 CFE PM
	beaver	1H0 881 253 T 21
	Satin black	1H0 881 253 0 1C
	Flannel grey -39 -39	1H0 881 253 U 71
	Black -32 MOVIE -32	1H0 881 405 CFE PM
	beaver	1H0 881 254 T 21
	soft black -89,99 HIGHLINE -89,99	1H0 881 254 C 82
	Black -AN,25 -AN,25	1H0 881 405 CFD TL
	Satin black	1H0 881 254 0 1C
	flint -39 -39	1H0 881 254 Y 01
	Black -UB -UB	1H0 881 405 CDD SF
	beaver	1H0 881 253 A T 21
	beaver -DQ -DQ	1H0 881 405 CLE DP
	Satin black	1H0 881 253 A 0 1C
	mauritius blue -DH -DH	1H0 881 405 CLE DM
	beaver	1H0 881 254 A T 21
	Black -DM -DM	1H0 881 405 CLE DL
	Satin black	1H0 881 254 A 0 1C
	mauritius blue -DH -DH	1H0 881 405 BRE DM
	Satin black	1H0 881 680 B 41
	Black -DM -DM	1H0 881 405 BRE DL
	beaver -DQ -DQ	1H0 881 405 BRE DP
	off-black -71 GOLF JOKER -71	1H0 881 405 DBF VF
	flint -72 GOLF JOKER -72	1H0 881 405 DBF VE
	Black -JE "E..":GOLF JUNIOR -JE	1H0 881 405 DBD TM
	Black -JE -JE	1H0 881 405 DBD TM
	black/blue -29 "A..":RABBIT IV -29	1H0 881 405 CRF GZ
	Black	1H0 881 317 0 1C
	beaver	1H0 881 317 T 21
	flint -39 -39	1H0 881 317 Y 01
	black/grey -24 "A..":RABBIT IV -24	1H0 881 405 CRF GX
	beaver	1H0 881 317 A T 21
	Black	1H0 881 317 A 0 1C
	soft black -89,99 HIGHLINE -89,99	1H0 881 317 A C 82
	flint -39 -39	1H0 881 317 A Y 01
	black/grey -24 BON JOVI -24	1H0 881 405 CRF GX
	Black	1H0 881 318 0 1C
	beaver	1H0 881 318 T 21
	flint -39 -39	1H0 881 318 Y 01
	Black -47 "E..":GOLF PLUS -47	1H0 881 405 CRE PM
	beaver	1H0 881 318 A T 21
	soft black -89,99 HIGHLINE -89,99	1H0 881 318 A C 82
	flint -39 -39	1H0 881 318 A Y 01
	Black -47 "A.." RABBIT -47	1H0 881 405 CRE PM
	Black	1H0 881 318 A 0 1C
	Black -37 "BR." -37	1H0 881 405 CRD TL
	flint -72 GOLF JOKER -72	1H0 881 405 BNF VE
	Black -37 "BR." -37	1H0 881 405 BND TL
	black/grey -24 "A..":RABBIT IV -24	1H0 881 405 BNF GX
	Satin black	3A0 881 347 0 1C
	off-black -71 GOLF JOKER -71	1H0 881 405 BNF VF
	Satin black	3A0 881 348 0 1C
	black/grey -24 BON JOVI -24	1H0 881 405 BNF GX
	Black -JE "E..":GOLF JUNIOR -JE	1H0 881 405 BND TM
	Black -JE -JE	1H0 881 405 BND TM
	Black -47 "E..":GOLF PLUS -47	1H0 881 405 BNE PM
	Black -47 "A..":RABBIT -47	1H0 881 405 BNE PM
	Black -RB -RB	1H0 881 405 B JT
	beaver -RC -RC	1H0 881 405 B JU
	black/blue -29 "A..":RABBIT IV -29	1H0 881 405 BNF GZ
	Black -RB -RB	1H0 881 405 DCB JT
(1)	Cover for guiderail	357 881 087
(1)	Cover for guiderail	357 881 088
(10)	tension spring	321 881 178
(17)	lever f. seat fore+afr adjust.for seat frame withheight adjustment	1H0 881 231
(17)	lever f. seat fore+afr adjust.	357 881 232 A
(17)	lever f. seat fore+afr adjust.for seat frame withheight adjustment	1H0 881 232
(22)	Handle for seat height adjust.	1H0 881 254
(22)	Handle for seat height adjust.	1H0 881 254
(23)	handle for seat front edgeadjustment	1H0 881 254 A
(23)	handle for seat front edgeadjustment	1H0 881 254 A
(27)	Mounting	357 881 299 A
(3)	Seat frame with height andtilt angle adjustment also use: 1 H 0 881 317 A Comfort seatsports seat 1 H 0 881 317 A	3A0 881 105 C
(3)	seat frame with heightadjustment	1H0 881 106 N
(3)	Seat frame with height andtilt angle adjustment use if required: 1 H 0 881 318 A Comfort seatsports seat 1 H 0 881 318 A	1H0 881 106 Q
(3)	Seat frame with height andtilt angle adjustment use if required: 1 H 0 881 318 A Comfort seatsports seat 1 H 0 881 318 A	1H0 881 106 AA
(3)	Seat frame with height andtilt angle adjustment also use: 1 H 0 881 318 A Comfort seatsports seat 1 H 0 881 318 A	3A0 881 106 C
(3)	seat frame with heightadjustment also use: 1 H 0 881 318 A 1 H 0 881 318 A	3A0 881 106 B
(3)	seat frame with heightadjustment	1E0 881 106
(3)	Seat frame with height andtilt angle adjustment Comfort seatsports seat	1H0 881 105 AA
(32)	Seat frame trimfor seat frame withheight adjustment	1H0 881 316
(33)	Seat frame trimfor seat frame withheight adjustment	1H0 881 317 A
(33)	Seat frame trim	1H0 881 318
(33)	Seat frame trimfor seat frame withheight adjustment	1H0 881 318 A
(33)	Seat frame trimfor seat frame withheight adjustment	1H0 881 318 A
(37)	Cap for guide rail	3A0 881 348
(37)	Cap for guide rail	3A0 881 347
(38)	Seat padding PR:Q 1 A,Q 2 B	1H0 881 375 E
(38)	Seat padding PR:Q 1 X	1H0 881 375 M
(38)	Seat padding PR:Q 1 A,Q 2 B	1H0 881 375 K
(38)	Seat padding PR:Q 1 X	1H0 881 375 F
(39)	seat cover (leatherette) PR:Q 1 A	1H0 881 405 CA
(39)	seat cover (leatherette) PR:Q 1 A	1H0 881 405 DJ
(39)	Seat covering (fabric)for models withside airbag PR:Q 1 A	1H0 881 405 DC
(39)	Seat covering (fabric) PR:Q 1 A	1H0 881 405 BN
(39)	Seat cover (fabric/leather)for models withside airbag OTMAR ALTPR:Q 1 X	1H0 881 405 EA
(39)	Seat covering (fabric) PR:Q 1 A,Q 1 W	1H0 881 405 BN
(39)	Seat covering (fabric) PR:Q 1 A,Q 1 W	1H0 881 405 BN
(39)	seat cover(cloth/leatherette)for models withside airbag GTIPR:Q 1 X	1H0 881 405 CS
(39)	seat cover(cloth/leatherette) GTIPR:Q 1 X	1H0 881 405 CK
(39)	Seat covering (fabric)for models withside airbag PR:N 2 Z,Q 1 A	1H0 881 405 CR
(39)	Seat covering (fabric)for models withside airbag MATCHsports seat	1H0 881 405 DT
(39)	Seat covering (fabric)for models withside airbag PR:Q 1 A	1H0 881 405 DB
(39)	Seat covering (fabric) MATCHsports seat	1H0 881 405 CC
(39)	Seat covering (fabric) PR:Q 1 W,Q 2 B	1H0 881 405 BR
(39)	Seat covering (fabric) PR:Q 1 W,Q 2 B	1H0 881 405 BR
(39)	seat cover(cloth/leatherette) PR:Q 1 X	1H0 881 405 BP
(39)	Seat covering (fabric) PR:Q 1 W,Q 2 B	1H0 881 405 BR
(39)	Seat covering (fabric)for models withside airbag PR:N 2 M,Q 1 A,Q 2 B	1H0 881 405 CL
(39)	Seat covering (fabric)for models withside airbag "D..":post,police PR:Q 1 A,Q 2 B	1H0 881 405 DF
(39)	seat cover(cloth/leatherette) GT SPECIALPR:Q 1 X	1H0 881 405 CD
(39)	seat cover(cloth/leatherette) PR:Q 1 X,GTI	1H0 881 405 CF
(39)	Seat covering (fabric) "D..":post,police PR:Q 1 A,Q 2 B	1H0 881 405 DH
(39)	Seat covering (fabric) PR:Q 1 A	1H0 881 405 BN
(39)	seat cover(cloth/leatherette) PR:Q 1 X,GTI	1H0 881 405 CF
(39)	seat cover(cloth/leatherette)for models withside airbag PR:N 2 C/N 2 Z,Q 1 X	1H0 881 405 CM
(39)	Seat covering (fabric) "D..":post,police PR:Q 1 A,Q 2 B	1H0 881 405 CT
(39)	Seat covering (fabric) GTI,VR 6:PR:Q 1 X	1H0 881 405 CE
(39)	Seat cover(leather/leatherette)for models withside airbag PR:Q 1 X,N 1 X,VR 6,HIGHLINE	1H0 881 405 DE
(39)	Seat covering (fabric)for models withside airbag GTI,VR 6:PR:Q 1 X	1H0 881 405 CQ
(39)	Seat cover(leather/leatherette) HIGHLINE,VR 6:PR:Q 1 X	1H0 881 405 CH
(39)	Seat cover (leather) HIGHLINE:PR:Q 1 X	1H0 881 405 CJ
(39)	Seat cover(leather/leatherette) HIGHLINE,VR 6:PR:Q 1 X	1H0 881 405 CH
(39)	Seat cover (leather)for models withside airbag HIGHLINE:PR:Q 1 X	1H0 881 405 DD
(39)	seat cover (leatherette)for models withside airbag PR:Q 1 A	1H0 881 405 DK
(4A)	Glide piece	357 881 141 G
(6B)	Clip	357 881 279 A
10	tension spring	321 881 177
11	stop platefor models with passiverestraint system	161 881 200
12	Glide piece	435 881 203 A
13	Glide piece	171 881 213 B
14	Glide piece	191 881 213
15	Bearing bush	893 881 167
16	clinch bolt	171 881 229 B
17	lever f. seat fore+afr adjust.	357 881 231 A
17A	handle	171 881 253
18	Clamp	321 881 240
19	oval head panel screw ST 3,5 X 13-C ST 3,5 X 13-C	N 013 958 7
19	oval head panel screw 3,5 X 13 3,5 X 13	N 013 958 19
22	Handle for seat height adjust.	1H0 881 253
22	Handle for seat height adjust.	1H0 881 253
23	handle for seat front edgeadjustment	1H0 881 253 A
23	handle for seat front edgeadjustment	1H0 881 253 A
24	Cover cap	1H0 881 680
25	fillister hd. bolt M 5 X 18 M 5 X 18	N 014 132 4
26	tension spring	113 881 275 C
29	Oval hexagon socket head bolt M 6 X 18 M 6 X 18	N 906 476 01
2A	press stud 8,5 X 3,25 8,5 X 3,25	N 902 724 01
3	seat frame with heightadjustment also use: 1 H 0 881 317 A 1 H 0 881 317 A	3A0 881 105 B
3	seat frame with heightadjustment	1H0 881 105 N
3	seat frame with heightadjustment	1E0 881 105
32	Seat frame trimfor seat frame withheight adjustment	1H0 881 315
33	Seat frame trim	1H0 881 317
34	oval head panel screw ST 4,8 X 25-C ST 4,8 X 25-C	N 013 972 1
34	oval head panel screw 4,8 X 25 4,8 X 25	N 013 972 9
35	Clip	1H0 881 247
39	Seat covering (fabric) PR:Q 1 A	1H0 881 405
39	Seat covering (fabric)for models withside airbag PR:Q 1 A	1H0 881 405 CP
3A	Cablefor seat frame withheight adjustment	1H0 881 341
3B	tension spring for height-adjustment	1H0 882 903
3C	tension spring forrake adjustment	1H0 882 901
4	Socket head bolt M 6 X 10 M 6 X 10	N 014 750 3
4	Socket head bolt withhexagon socket head M 6 X 10 M 6 X 10	N 014 750 6
40	Clip	171 881 449 A
40A	Clip	1H0 881 449
41	upholstery wire 2,8 X 368 2,8 X 368	N 901 626 06
42	Clip 20 X 1,8 20 X 1,8	N 015 261 1
43	Clip	867 885 447
4A	Glide piece	357 881 142 G
5	spring ring 6 6	N 012 006 4
6	domed cap nut M 6 RI M 6 RI	N 011 121 2
6	domed cap nut M 6 M 6	N 011 121 4
6A	detent spring	1H0 881 287
6B	Clip	357 881 280 A
7	Stop buffer	357 881 195

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these front seats diagrams are drawn from.

Mk2 Golf Restoration Welding work #mk2golf #mechanic #volkswagen #migwelding #carrestoration Mostly typical repair work we see on almost every Mk2 Golf we’ve worked on. Safe to say the Mk3 Golf is pretty similar too!

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Factory group: 34 Front seats
Factory subgroup: 881000

Related factory diagrams

Other published front seats plates for the Mk3 Golf in this catalogue.

Seat f 1 h s 012 883 f 1 h s 000 001 front 1993 - 1996 · subgroup 881005
Seat backrest heated jetta 1993 - 1996 · subgroup 963010
Seatbackrest head restraint front 1997 · subgroup 881030
Backrest front 1997 · subgroup 881050
Seat backrest heated 1997 · subgroup 963010
Seat backrest heated 1994 - 1997 · subgroup 963010

The complete Mk3 Golf parts catalogue in print

Questions about this diagram

Which VW part numbers are on the seat front diagram for the Mk3 Golf?: This diagram lists 228 OEM part numbers for the Mk3 Golf. The first three are 1H0 881 405 DCB JU, 1H0 881 405 CPG JR and 357 881 087 0 1C.
Which Mk3 Golf years and engines does this diagram cover?: This plate is from the Mk3 Golf 1997 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.
Where is the complete Mk3 Golf factory parts catalogue?: The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.
