Which VW part numbers are on the additional brake light diagram for the Mk3 Golf?

This diagram lists 5 OEM part numbers for the Mk3 Golf. The first three are 1H0 972 702 A, N 017 753 2 and 165 945 170.

Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1997 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Additional brake light — Mk3 Golf Lighting (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Brake, turn signal and taillights. Licence plate light

Generation: Mk3 1997 (RDW) Group: Lighting Parts: 5 Primary OEM: 1H0 972 702 A, N 017 753 2, 165 945 170

Additional brake light for the Volkswagen Golf Mk3 (1997): factory exploded diagram 945060 from the Volkswagen ETKA parts catalogue, group 19 Lighting, listing 5 OEM part numbers including 1H0 972 702 A, N 017 753 2 and 165 945 170. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 5 OEM part numbers across 5 numbered positions.

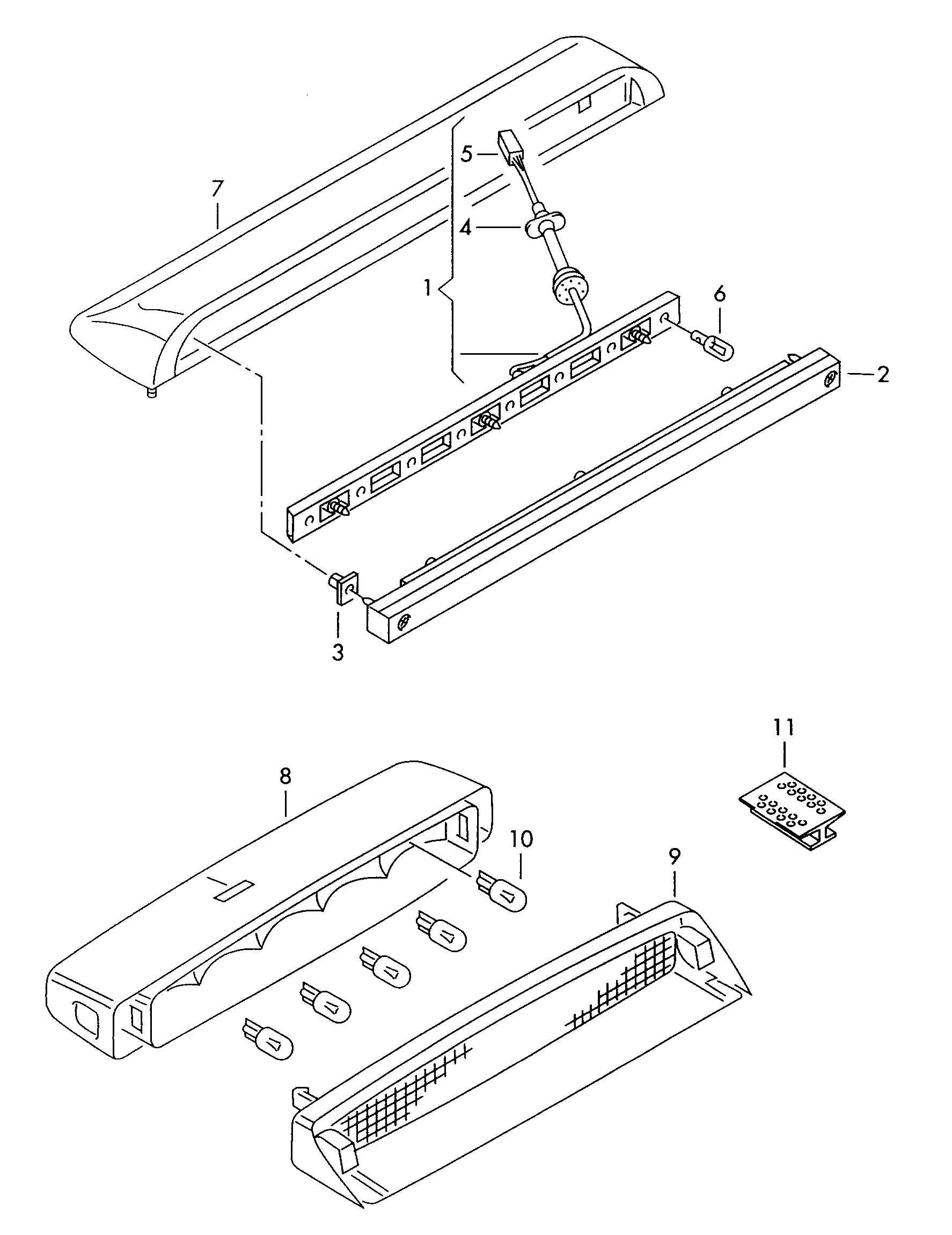

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
-	Flat contact housing Possible single wire: 000 979 131000 979 131 A 1,01,0 000 979 131000 979 131 A	1H0 972 702 A
10	bulb W 5 W-12 V 5 W W 5 W-12 V 5 W	N 017 753 2
11	retaining piece For vehicles with highmounted brake light	165 945 170
8	housing with bulb holder use if required: 1 H 0 972 702 A 1 H 0 972 702 A	1H0 945 121
9	Additional brake light	1H6 945 122

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these lighting diagrams are drawn from.

Volkswagen OEM Parts Catalogues and Torque reference manuals! Get amongst it. Volkswagen OEM Parts Catalogues and Torque reference manuals from Type 19 Specialists — the printed editions the free catalogue pages are drawn from.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Factory group: 19 Lighting
Factory subgroup: 945060
