Brake turn signal taillights jetta — Mk3 Golf Lighting (1993 - 1996)

Factory title: Volkswagen Golf (1993 - 1996) - Brake, turn signal and taillights. Rear fog light. Reversing light

Generation: Mk3 1993 - 1996 (MEX) Group: Lighting Parts: 26 Primary OEM: 867 863 849 A 0 1C, 1H5 945 519 B 41, 1H0 819 055 C 0 1C

Brake turn signal taillights jetta for the Volkswagen Golf Mk3 (1993 - 1996): factory exploded diagram 945025 from the Volkswagen ETKA parts catalogue, group 19 Lighting, listing 24 OEM part numbers across 26 catalogued positions including 867 863 849 A 0 1C, 1H5 945 519 B 41 and 1H0 819 055 C 0 1C. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 24 OEM part numbers across 26 numbered positions.

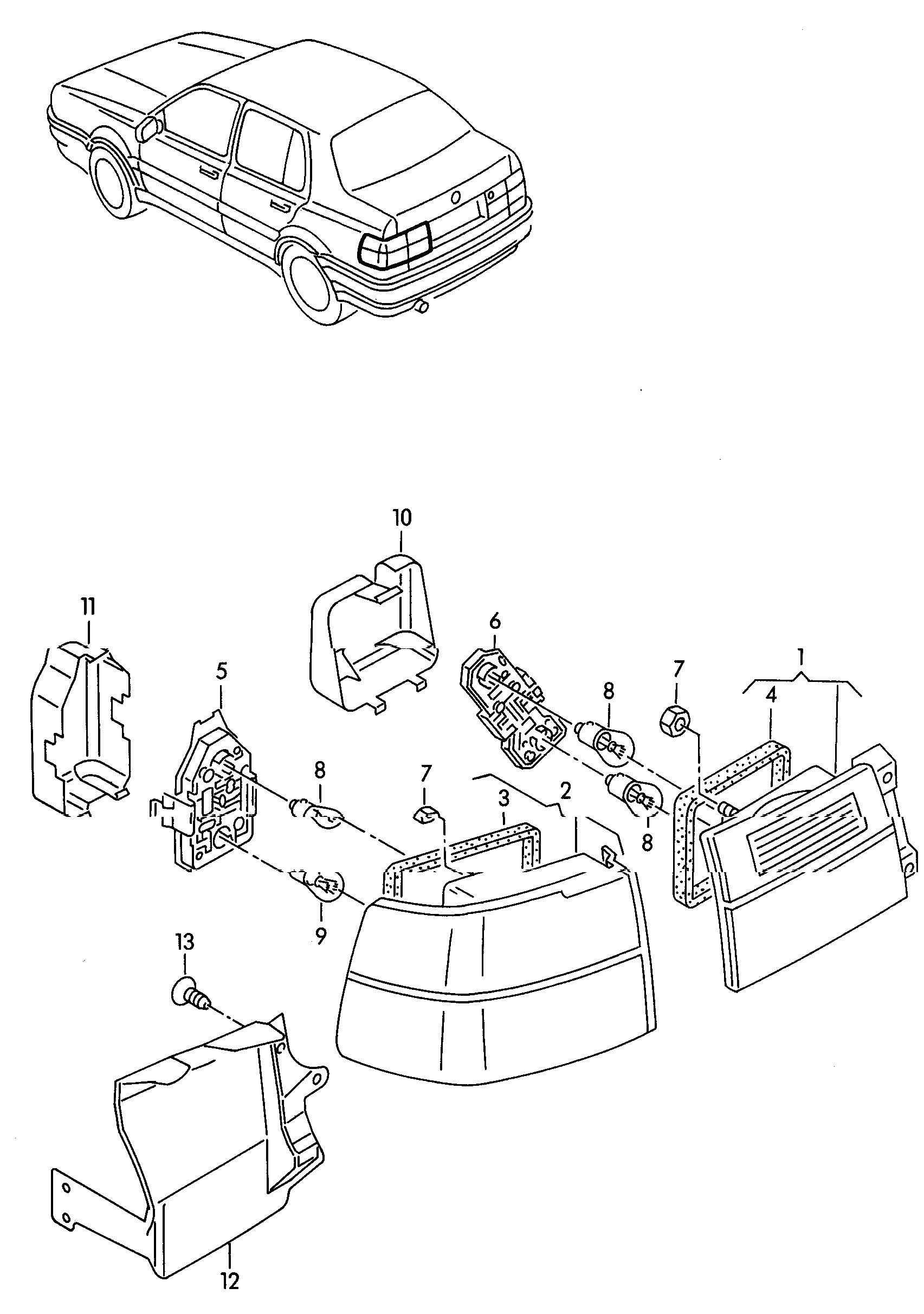

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Satin black	867 863 849 A 0 1C
	brake, turn signal andtaillights JETTA	—
	Satin black	1H5 945 519 B 41
	Satin black	1H0 819 055 C 0 1C
	Satin black	1H5 945 520 B 41
-	Clip	1H0 819 055 C
-	Clip	867 863 849 A
(1)	Tail lights with reversingand fog lights partially dimmed: 40 AñOS,GLX	1HM 945 108 A
(1)	Tail lights with reversingand fog lights partially dimmed: 40 AñOS,GLX	1HM 945 107 A
(1)	Tail lights with reversinglights	1HM 945 108
(1)	Tail lights with reversinglights	1HM 945 107
(2)	Tail lights with turn signal,brake and tail lights,reflector partially dimmed: 40 AñOS,GLX	1HM 945 111 B
(2)	Tail lights with turn signal,brake and tail lights,reflector	1HM 945 112 A
(2)	Tail lights with turn signal,brake and tail lights,reflector partially dimmed: 40 AñOS,GLX	1HM 945 112 B
(8)	bulb 'longlife' P 21 W-12 V 21 W P 21 W-12 V 21 W	N 017 732 8
(9)	bulb 'longlife'F 1 H-T-004 579>>F 1 H-T-109 977>> P 21/5 WLL 12 V 21/5 W P 21/5 WLL 12 V 21/5 W	N 017 738 6
10	Cover cap	1H5 945 519
11	Cover cap	1H5 945 520
2	Tail lights with turn signal,brake and tail lights,reflector	1HM 945 111 A
3	Seal 700 MM 700 MM	3A5 945 191
4	shorten to: 564 MM 564 MM	—
5	Bulb carrier	1H5 945 257
6	Bulb carrier	1H5 945 259
7	Hexagon collar nut M 5 M 5	N 100 173 04
8	bulb P 21 W-12 V 21 W P 21 W-12 V 21 W	N 017 732 2
9	bulb F >> 1 H-T-004 578F >> 1 H-T-109 976 P 21/5 W 12 V 21/5 W P 21/5 W 12 V 21/5 W	N 017 738 2

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these lighting diagrams are drawn from.

Volkswagen OEM Parts Catalogues and Torque reference manuals! Get amongst it. Volkswagen OEM Parts Catalogues and Torque reference manuals from Type 19 Specialists — the printed editions the free catalogue pages are drawn from.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1993 - 1996
Generation region: MEX
Generation code: 128
Factory group: 19 Lighting
Factory subgroup: 945025
