High volume horn — Mk3 Golf Lighting (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Dual horn. Fanfare

Generation: Mk3 1997 (RDW) Group: Lighting Parts: 23 Primary OEM: 191 951 217, 211 951 275 C, 191 951 215

High volume horn for the Volkswagen Golf Mk3 (1997): factory exploded diagram 951030 from the Volkswagen ETKA parts catalogue, group 19 Lighting, listing 23 OEM part numbers including 191 951 217, 211 951 275 C and 191 951 215. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 23 OEM part numbers across 23 numbered positions.

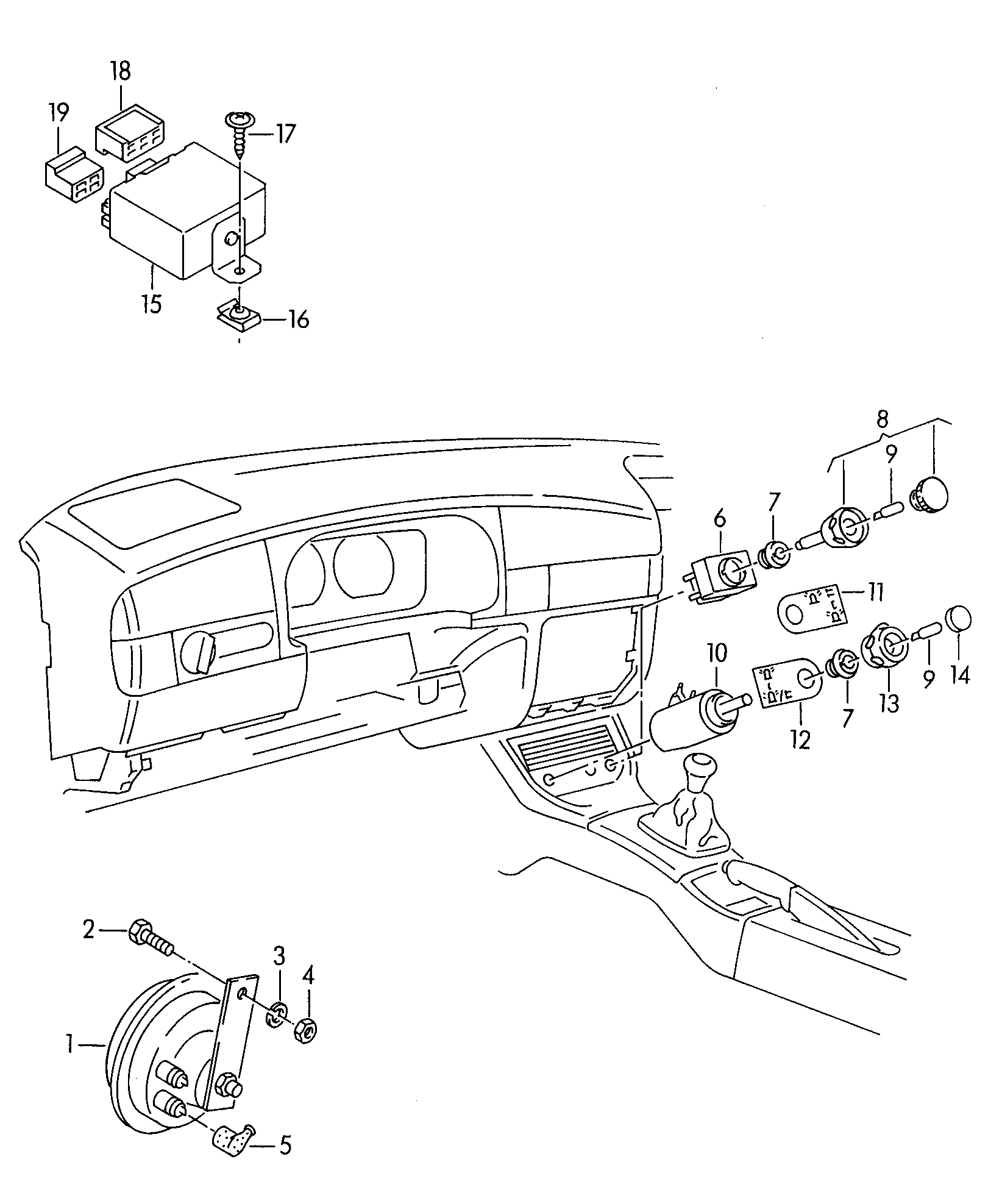

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
(1)
high volume horn
 191 951 217
(10)
alarm switch, push-pull, rotary fire brigade
 211 951 275 C
1
high volume horn
 191 951 215
10
alarm switch, push-pull, rotary police
 211 951 275 A
11
sticker forswitch operation
 191 951 279
12
sticker forswitch operation
 211 951 279
13
knob
 211 951 297
14
Window
 211 951 299
15
emergency siren system relay
 191 951 273
16
Speed nut M 4 X 13 X 11,5
M 4 X 13 X 11,5
 N 902 825 01
17
fillister hd. bolt M 4 X 20
M 4 X 20
 N 902 412 03
18
Flat contact housing 6,3
6,3
 803 971 831
19
Flat contact housing
 803 905 897
19
Flat contact housing
 ZBA 971 838
2
Hexagon bolt M 10 X 22
M 10 X 22
 N 010 253 7
3
spring ring 10
10
 N 012 011 3
4
Hexagon nut M 10
M 10
 N 011 010 11
4
Hexagon nut M 10
M 10
 N 101 552 07
5
Protective cap 32 X 10
32 X 10
 191 919 083
6
switch for two-way radio
 111 963 105 C
7
Rosette
 111 941 515 D
8
switch knob
 321 035 781
9
bulb W 5/1,2 W 12 V 1,2 W
W 5/1,2 W 12 V 1,2 W
 N 017 751 2
