Brake turn signal taillights licence plate light golf — Mk3 Golf Lighting (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Brake, turn signal and taillights. Licence plate light

Generation: Mk3 1997 (RDW) Group: Lighting Parts: 29 Primary OEM: 1H6 945 520 B 41, 1H6 943 199, 1H6 945 111 A

Brake turn signal taillights licence plate light golf for the Volkswagen Golf Mk3 (1997): factory exploded diagram 945000 from the Volkswagen ETKA parts catalogue, group 19 Lighting, listing 26 OEM part numbers across 29 catalogued positions including 1H6 945 520 B 41, 1H6 943 199 and 1H6 945 111 A. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 26 OEM part numbers across 29 numbered positions.

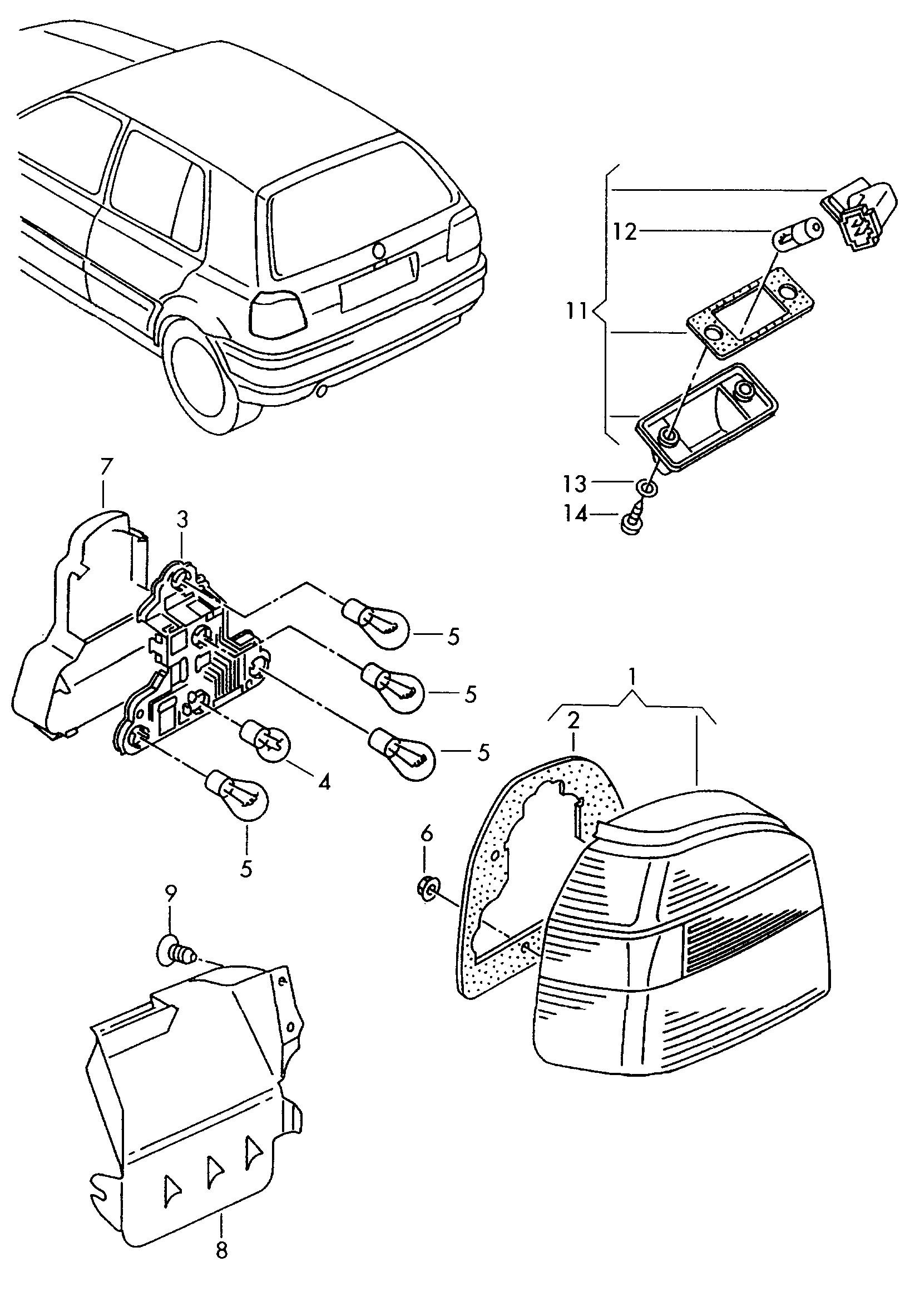

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Satin black	1H6 945 520 B 41
	brake, turn signal andtaillights GOLF	—
	brake, turn signal andtaillights Licence plate light GOLF	—
-	Licence plate holder "BR."	1H6 943 199
(1)	Tail light	1H6 945 111 A
(1)	Tail light with foglight partially dimmed:	1H6 945 111 B
(1)	Tail light partially dimmed:	1H6 945 111 C
(1)	Tail light	1H6 945 112
(1)	Tail light with foglight	1H6 945 112 A
(1)	Tail light partially dimmed:	1H6 945 112 B
(1)	Tail light with foglight partially dimmed:	1H6 945 112 C
(1)	Tail light with foglight partially dimmed:	1E0 945 096 A
(1)	Tail light with foglight partially dimmed:	1E0 945 112 A
(1)	Tail light with foglight partially dimmed:	1E0 945 095
(11)	Window "J.."	1H6 943 119 C
(11)	Licence plate light "J.."	1H6 943 021 C
1	Tail light with foglight	1H6 945 111
10	Discont. / replace: 1 H 6 943 0211 H 6 943 021 C "J.." 1 H 6 943 0211 H 6 943 021 C	—
11	Licence plate light supplied alternatively: 1 H 6 943 021 B 1 H 6 943 021 D 1 H 6 943 021 B 1 H 6 943 021 D	1H6 943 021
12	bulb W 5 W-12 V 5 W W 5 W-12 V 5 W	N 017 753 2
13	Plastic washer	411 945 279
14	oval head panel screw 3,9 X 13 3,9 X 13	N 013 961 2
2	Seal	1H6 945 191
3	Bulb carrier	1H6 945 257
4	bulb R 5 W-12 V 5 W R 5 W-12 V 5 W	N 017 718 5
5	bulb P 21 W-12 V 21 W P 21 W-12 V 21 W	N 017 732 2
6	Hexagon collar nut M 5 M 5	171 857 026 A
7	Cover cap	1H6 945 520
8	Cover	1H6 945 311
