Additional brake light — Mk3 Golf Lighting (1994 - 1997)

Factory title: Volkswagen Golf Cabriolet (1994 - 1998) - Brake, turn signal and taillights. Licence plate light

Generation: Mk3 1994 - 1997 (RDW) Group: Lighting Parts: 12 Primary OEM: D 009 200 02, 1J0 972 702, 191 972 702

Additional brake light for the Volkswagen Golf Mk3 (1994 - 1997): factory exploded diagram 945060 from the Volkswagen ETKA parts catalogue, group 19 Lighting, listing 10 OEM part numbers across 12 catalogued positions including D 009 200 02, 1J0 972 702 and 191 972 702. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 10 OEM part numbers across 12 numbered positions.

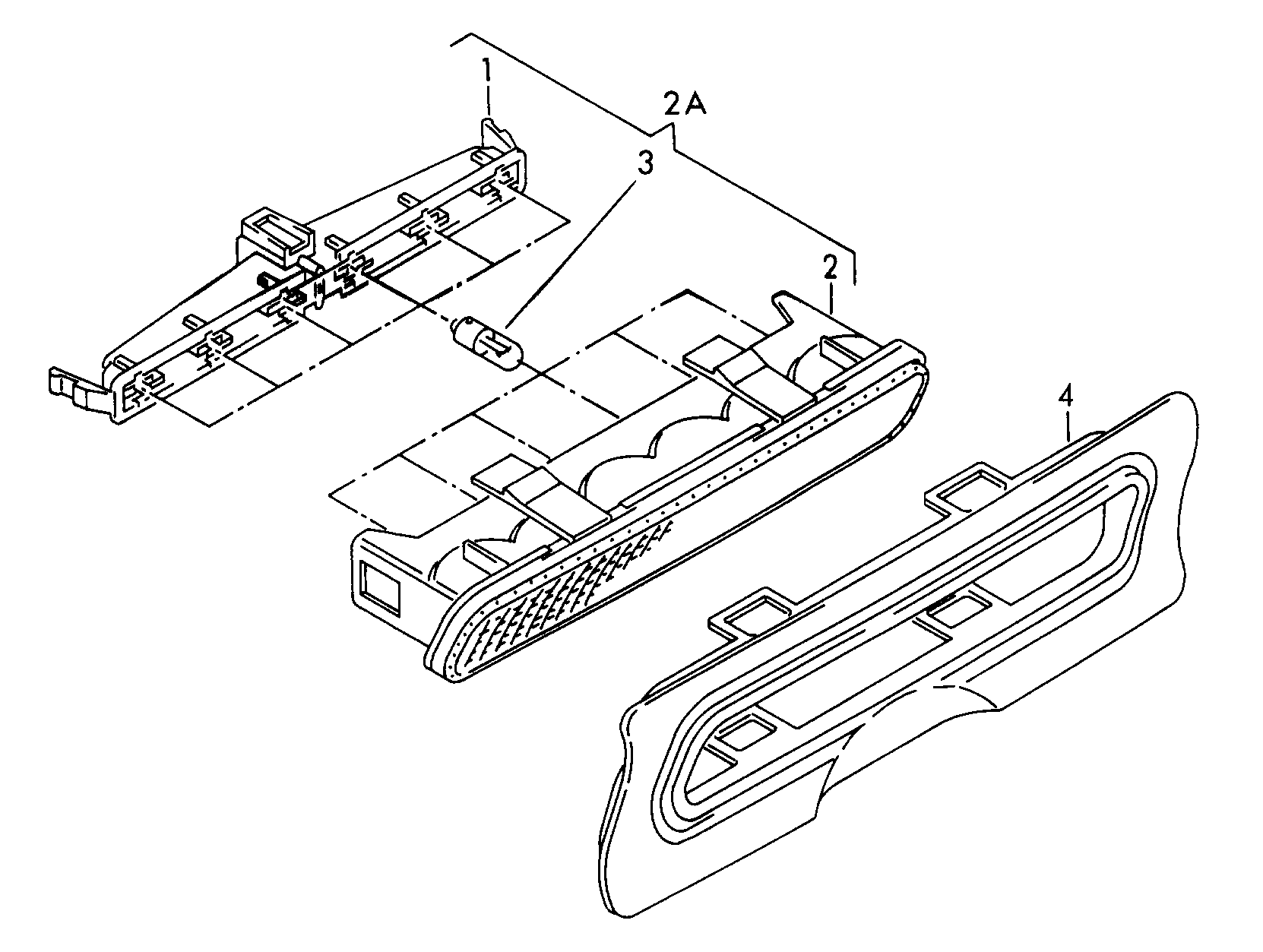

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
-	primer 10 ML 10 ML	D 009 200 02
-	Flat contact housing Possible single wire: counterpart to: 000 979 126000 979 126 A 1 J 0 971 712 000 979 126000 979 126 A 1 J 0 971 712	1J0 972 702
-	Flat contact housing Possible single wire: 000 979 133000 979 133 A 000 979 225 1,01,02,5 000 979 133000 979 133 A 000 979 225	191 972 702
-	Flat contact housing withcontact locking mechanism Possible single wire: counterpart to: 000 979 133000 979 133 A 1 J 0 971 712 000 979 133000 979 133 A 1 J 0 971 712	1J0 972 702
-	1-pack adhesive 310 ML 310 ML	D 190 MKD A3
1	housing with bulb holder	1E0 945 121
2	Additional brake light	1E0 945 131
2A	Additional brake light	1E0 945 097 A
2A	Discont. / replace: use if required: POS. 1-31 J 0 972 702 POS. 1-31 J 0 972 702	—
2A	Discont. / replace: use if required: POS. 1-3191 972 702 POS. 1-3191 972 702	—
3	bulb 12 V 2,1 W 12 V 2,1 W	N 903 605 01
4	Frame also use: D 190 MKD A 3 D 009 200 02 D 190 MKD A 3 D 009 200 02	1E0 945 147
