Anti theft alarm system immobiliser — Mk3 Golf Lighting (1994 - 1997)

Factory title: Volkswagen Golf Cabriolet (1994 - 1998) - Dual horn

Generation: Mk3 1994 - 1997 (RDW) Group: Lighting Parts: 38 Primary OEM: 1H0 998 301, 1H0 953 233 D, 1H0 953 233 E

Anti theft alarm system immobiliser for the Volkswagen Golf Mk3 (1994 - 1997): factory exploded diagram 951040 from the Volkswagen ETKA parts catalogue, group 19 Lighting, listing 37 OEM part numbers across 38 catalogued positions including 1H0 998 301, 1H0 953 233 D and 1H0 953 233 E. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 37 OEM part numbers across 38 numbered positions.

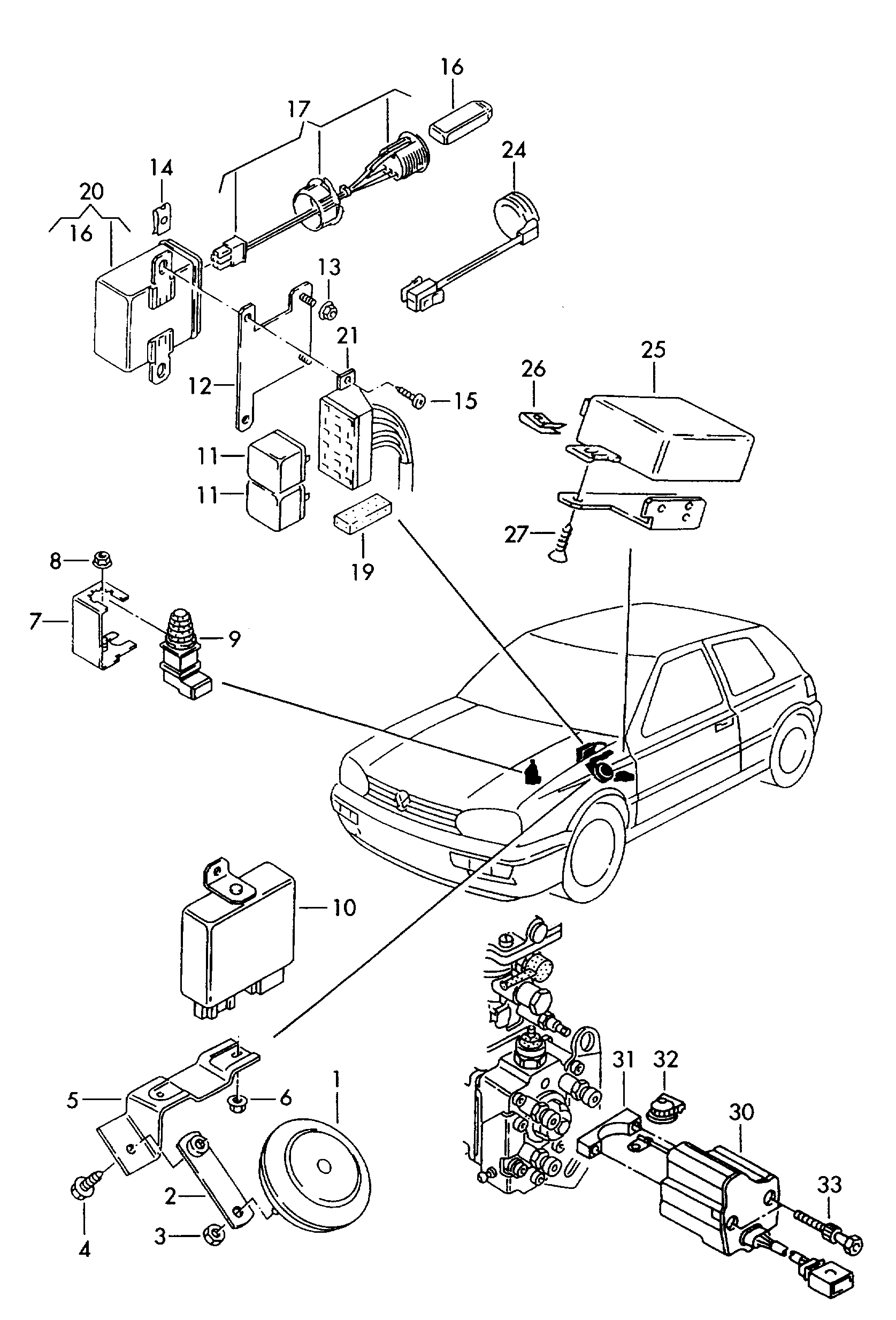

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
-	retrofit kit forimmobilizer	1H0 998 301
(10)	Control unit F 1 E-S-009 002>>	1H0 953 233 D
(10)	Control unit F 1 E-S-009 002>> "CH."	1H0 953 233 E
(10)	Control unit F 1 E-R-012 001>> 1 E-S-009 001 "CH."	1H0 953 233 G
(10)	Control unit F >> 1 E-R-012 000* "CH."	1H0 953 233 A
(10)	Control unit F 1 E-R-012 001>> 1 E-S-009 001	1H0 953 233 F
(12)	Bracket	1H2 953 221
(24)	reader coil for variablecode transponder F 1 E-W-010 001>>	6H0 953 254
(24)	reader coil F 1 E-W-000 001>> 1 E-W-010 000*	6N0 953 254
(24)	reader coil F 1 E-T-018 001>> 1 E-V-030 000	1H0 953 254 E
(25)	Control unit for immobiliserwith variable codetransponder F 1 E-W-010 001>>*	6H0 953 257 BX
(25)	Control unit forimmobiliser F 1 E-W-000 001>> 1 E-W-010 000*	6N0 953 257 X
(8)	Hexagon nut M 6 M 6	N 011 006 24
(9)	Switch F 1 E-T-000 001>>	1H0 953 236
1	Signal horn	191 951 113 B
10	Control unit F >> 1 E-R-012 000*	1H0 953 233
11	Relay	141 951 253 B
12	Bracket	1H1 953 221
13	Hexagon collar nut M 6 M 6	N 901 752 03
14	Speed nut 4,8 X 16,5 X 13 4,8 X 16,5 X 13	N 015 439 1
15	oval head panel screw ST 4,8 X 16,0 ST 4,8 X 16,0	N 013 969 4
16	key	1H0 953 251
17	coded lock with loom	1H0 953 253
19	Underlay	867 955 499
2	Bracket	191 951 227
20	Control unit forimmobiliser	1H0 953 257
21	Wire set see illustration: 972-057 972-057	—
24	reader coil F >> 1 E-T-018 000*	1H0 953 254 F
25	Control unit forimmobiliser F >> 1 E-V-030 000	1H0 953 257 BX
26	Speed nut 4,8 X 16,5 X 13 4,8 X 16,5 X 13	N 015 439 1
27	countersunk panel screw 3,5 X 9,5 3,5 X 9,5	N 013 986 2
3	Hexagon nut M 8 M 8	N 011 008 18
3	Hexagon nut M 8.0 M 8.0	N 011 008 30
4	Hexagon bolt M 8 X 18 M 8 X 18	N 010 239 11
5	Bracket	1H0 951 169 A
6	Hexagon collar nut 5 5	N 903 521 01
7	bracket for switch	1H0 953 246 A
9	Switch	191 953 236

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these lighting diagrams are drawn from.

Volkswagen OEM Parts Catalogues and Torque reference manuals! Get amongst it. Volkswagen OEM Parts Catalogues and Torque reference manuals from Type 19 Specialists — the printed editions the free catalogue pages are drawn from.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1994 - 1997
Generation region: RDW
Generation code: 146
Factory group: 19 Lighting
Factory subgroup: 951040
