Central electrics relay fuse socket — Mk3 Golf Lighting (1994 - 1997)
Factory title: Volkswagen Golf Cabriolet (1994 - 1998) - Relay. central electrics. Fuse socket

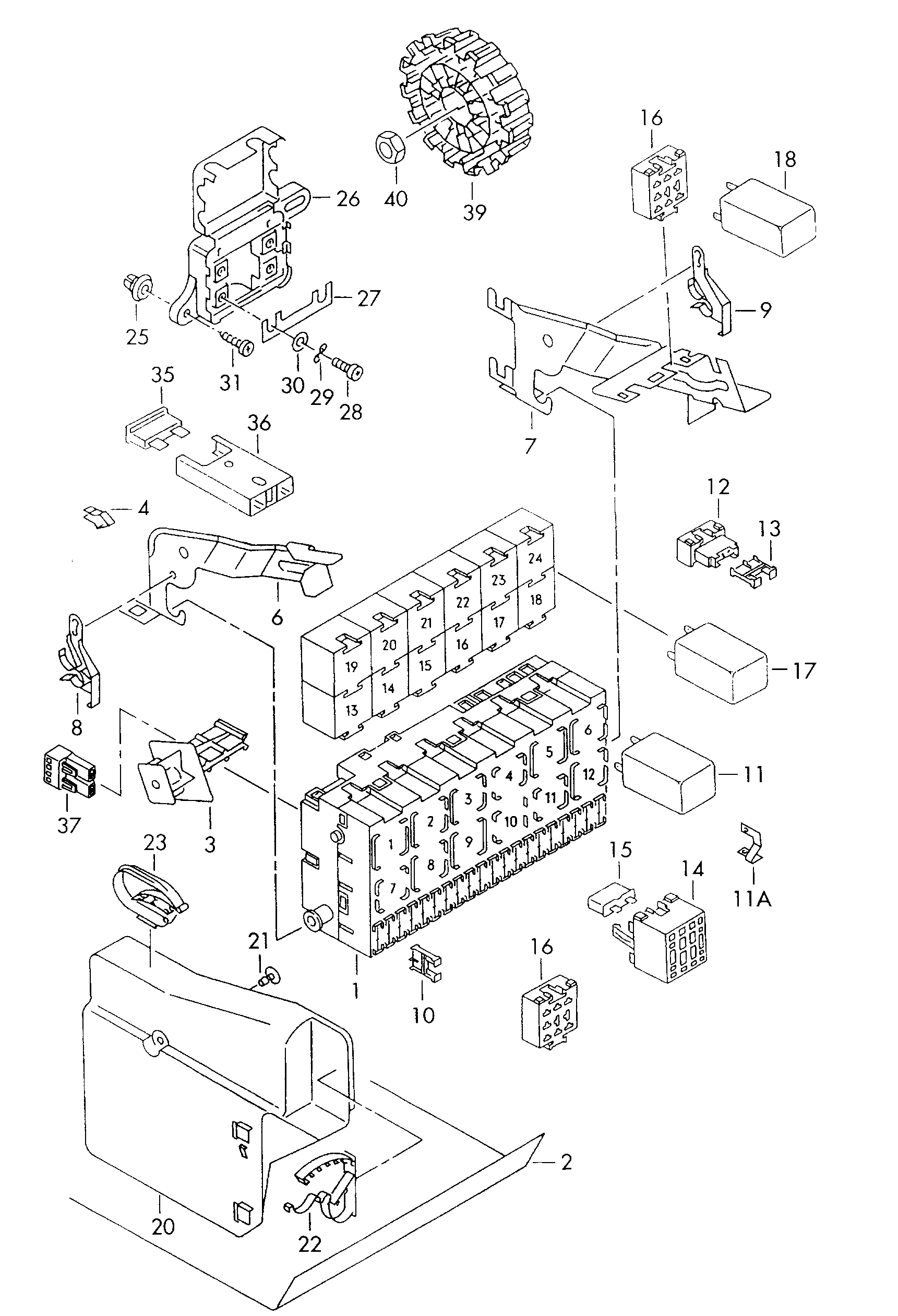

Central electrics relay fuse socket for the Volkswagen Golf Mk3 (1994 - 1997): factory exploded diagram 937025 from the Volkswagen ETKA parts catalogue, group 19 Lighting, listing 59 OEM part numbers across 62 catalogued positions including 191 906 283 A, 1HM 863 081 B 0 1C and 357 998 131. Parts on this plate carry the engine codes 1Y, 2E, AAA, AAM, AAZ, ABS, ADY and AGG. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.
Parts on this diagram
This Mk3 Golf plate lists 59 OEM part numbers across 62 numbered positions.
| № | Description | Part number |
|---|---|---|
| Solenoid valve 'EGR' AAZ 'EGR' AAZ | 191 906 283 A | |
| Satin black | 1HM 863 081 B 0 1C | |
| - | 1 set of flat fuses | 357 998 131 |
| (10) | flat fuse 19/2 x 5 | N 017 131 13 |
| (10) | flat fuse 19/2 x 5 | N 017 131 11 |
| (10) | flat fuse 19/2 x 5 | N 017 131 12 |
| (10) | 1 set of flat fuses | 357 998 131 A |
| (10) | flat fuse 19/2 x 5 | N 017 131 15 |
| (11) | Relay relay location: 3 1 Y,AAZ,AAA 3 1YAAAAAZ | 357 906 381 A |
| (11) | Relayfor relief relay x contact relay location: 12 V 40 A 4 12 V 40 A 4 | 191 937 503 |
| (11) | contact close relayfor relief relay x contact relay location: 12 V 40 A 4 12 V 40 A 4 | 7M0 951 253 A |
| (11) | switch for speed warningindicator relay location: 5 "KSA","OM.","KWT","BRN","QAP","UAE" 5 | 535 957 901 |
| (11) | turn signal/hazard light relay relay location: 12 V 4 X 21 W 6 12 V 4 X 21 W 6 | 191 953 227 A |
| (11) | turn signal/hazard light relay relay location: 12 V 4 X 21 W 6 12 V 4 X 21 W 6 | 1H0 953 227 |
| (11) | turn signal/hazard light relayfor models withtowing facility relay location: 12 V 6 X 21 W 6 12 V 6 X 21 W 6 | 431 953 231 |
| (11) | relay for headlightwasher relay location: 7 7 | 701 955 200 |
| (11) | Control unit for wiper/washingautomatic intervals relay location: 8 8 | 191 955 531 |
| (11) | Control unit for adjustablewiper/washing auto. intervals relay location: 8 8 | 357 955 531 |
| (11) | warning time relayfor seat belt warning systemwithout starter inhibitor relay location: 9 9 | 321 919 433 B |
| (11) | Control unit for adjustablewiper/washing auto. intervals relay location: 8 8 | 3B0 955 531 |
| (11) | warning time relayfor seat belt warning systemwithout starter inhibitor relay location: 9 9 | 1H0 919 433 A |
| (11) | buzzerfor lighting relay location: 9 9 | 3A0 951 307 |
| (11) | Relayfor fog lampfor models withday driving headlights Fog light circuit:side lights relay location: 10 10 | 357 941 595 |
| (11) | Relayfor horn relay location: 11 11 | 141 951 253 B |
| (11) | contact close relayfor fuel pump relay location: 12 Petr. engine 12 | 191 906 383 C |
| (11) | Relayfor:Control unit relay location: DIGIFANT I 3 2 E,AGG,AKR DIGIFANT I 3 2EAGGAKR | 165 906 381 |
| (11) | Relay relay location/code no.: to be used for code no.: /109/3 1 Y,AAZ,AAA /109/3 1YAAAAAZ | 1J0 906 381 A |
| (11) | Control unit for lambda sensor For vehicles without catalyticconverter relay location: 3 AAM,ABS 3 AAMABS | 893 906 258 |
| (11) | Relayfor air conditioner ADY ADY | 1H0 959 142 |
| (13) | flat fuse 19/2 x 5 | N 017 131 15 |
| (17) | Relayfor intake manifold heating relay location: 13 AAM,ABS, 13 AAMABS | 171 906 383 |
| (17) | relay fortemperature sensor 2 E,ABS, 2EABS | 191 906 086 |
| (17) | contact close relay ABS unit relay location/code no.: 16+17/179 16+17/179 | 357 927 843 A |
| (17) | relay - starter 4-speed automatic gearbox relay location/code no.:F >> 1 E-T-012 000* 15/150 15/150 | 357 927 181 A |
| (17) | Relay For vehicles with city drivinglight | 191 927 841 |
| (17) | Relayfor ABS anti-lock braking sys relay location/code no.: 18/79 18/79 | 191 927 841 |
| (17) | relay - starter 4-speed automatic gearbox relay location/code no.:F 1 E-T-012 001>>* 15/175 15/175 | 3A0 927 181 |
| (2) | Trim for centralelectrics | 1H2 937 069 |
| (2) | Coverfor fuse box/relay plate | 1HM 863 081 B |
| (20) | protection plate | 1H2 971 821 |
| 1 | central electrics | 357 937 039 |
| 11A | Jumperfor models withfog lamps andrear fog light relay location: 10 10 | 823 941 817 A |
| 12 | fuse box forflat fuses | 161 937 501 |
| 12 | fuse box forflat fuses | 1H0 937 530 |
| 13 | flat fuse 19/2 x 5 | N 017 131 11 |
| 14 | bracket for thermo switchfor models with electricallyoperated windows | 191 937 501 |
| 15 | Thermal fusefor models with electricallyoperated windows 20 A 20 A | 443 937 105 |
| 16 | relay plate | 161 937 501 B |
| 2 | Trim for centralelectrics | 1H1 937 069 |
| 20 | protection plate | 1H1 971 821 |
| 21 | No longer available | — |
| 22 | Cable holder | 357 971 004 |
| 23 | Clip | 1H0 971 897 |
| 3 | Bracket Trim for centralelectrics | 1H0 937 083 |
| 37 | Wiring connector | 357 937 541 |
| 39 | ground connector 2,8/4.8 2,8/4.8 | 3A0 971 519 A |
| 4 | Assembly tool for bladefuse | 171 937 579 |
| 40 | Hexagon nut M 6 M 6 | N 011 006 27 |
| 6 | No longer available | — |
| 7 | No longer available | — |
| 8 | lever | 1H1 941 857 |
| 9 | lever | 1H1 941 858 |
From the Type 19 workshop
Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these lighting diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk3
- Model years
- 1994 - 1997
- Generation region
- RDW
- Generation code
- 146
- Engine codes on this plate
- 1Y, 2E, AAA, AAM, AAZ, ABS, ADY, AGG
- Variant tags
- diesel
- Factory group
- 19 Lighting
- Factory subgroup
- 937025
