Halogen fog lamp — Mk3 Golf Lighting (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Headlights

Generation: Mk3 1997 (RDW) Group: Lighting Parts: 30 Primary OEM: 1H0 941 700, 1H0 941 700 B, 1H0 941 699 C

Halogen fog lamp for the Volkswagen Golf Mk3 (1997): factory exploded diagram 941090 from the Volkswagen ETKA parts catalogue, group 19 Lighting, listing 29 OEM part numbers across 30 catalogued positions including 1H0 941 700, 1H0 941 700 B and 1H0 941 699 C. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 29 OEM part numbers across 30 numbered positions.

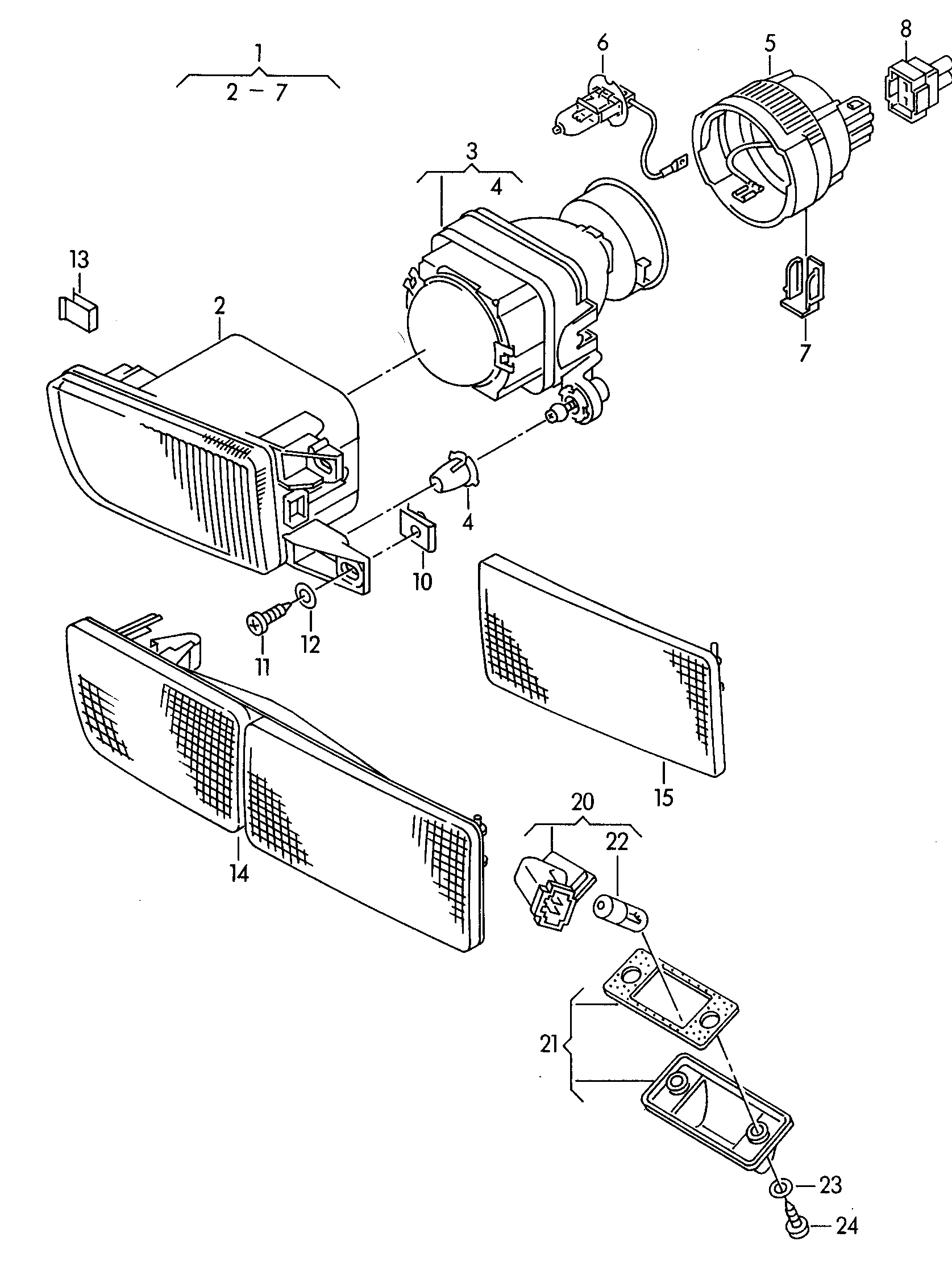

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
(1)
Halogen fog lamp
 1H0 941 700
(1)
Halogen fog lamp
 1H0 941 700 B
(1)
Halogen fog light,tinted GOLF GTI
 1H0 941 699 C
(1)
Halogen fog light,tinted GOLF GTI
 1H0 941 700 C
(14)
cover for fog lampaperture and towingeye
 1H0 941 778
(14)
cover for fog lampaperture and towingeye
 1H0 941 778 B
(15)
Trim Tow hitchfor models withfog lamps
 1H0 941 780
(15)
trim, darkened Tow hitchfor models withfog lamps GOLF GTI
 1H0 941 780 B
(15)
trim, darkened Tow hitchfor models withfog lamps GOLF GTI
 1H0 941 779 B
(2)
Headlight insert,tinted GOLF GTI
 1H0 941 724 B
(2)
Headlight insert,tinted GOLF GTI
 1H0 941 723 B
(2)
Headlight insert
 1H0 941 724
(3)
reflector
 1H0 941 727 A
(3)
reflector
 1H0 941 728 A
1
Halogen fog lamp
 1H0 941 699
1
Halogen fog lamp
 1H0 941 699 B
10
Speed nut 4,2 X 12,5 X 11
4,2 X 12,5 X 11
 N 905 183 01
11
oval head panel screw ST 4.2 X 19.0
ST 4.2 X 19.0
 N 013 967 1
12
Washer B 4,3 X 12 X 1
B 4,3 X 12 X 1
 N 011 664 4
13
Clip 13 X 13 X 3
13 X 13 X 3
 N 905 319 01
14
cover for fog lampaperture and towingeye
 1H0 941 777 B
14
cover for fog lampaperture and towingeye
 1H0 941 777
15
Trim Tow hitchfor models withfog lamps
 1H0 941 779
2
Headlight insert
 1H0 941 723
3
Discont. / replacement item: 1
1
 —
4
Joint
 357 941 142
5
Cap
 1H0 941 607
6
Halogen bulb H 3-12 V 55 W
H 3-12 V 55 W
 N 017 762 2
7
cover forfog lamp
 191 941 617
8
flat contact housing withgasket
 357 972 752

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these lighting diagrams are drawn from.

Volkswagen OEM Parts Catalogues and Torque reference manuals! Get amongst it. Volkswagen OEM Parts Catalogues and Torque reference manuals from Type 19 Specialists — the printed editions the free catalogue pages are drawn from.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle
Volkswagen Golf Mk3
Model years
1997
Generation region
RDW
Generation code
184
Factory group
19 Lighting
Factory subgroup
941090

Related factory diagrams

Other published lighting plates for the Mk3 Golf in this catalogue.

The complete Mk3 Golf parts catalogue in print

Questions about this diagram

Which VW part numbers are on the halogen fog lamp diagram for the Mk3 Golf?
This diagram lists 29 OEM part numbers for the Mk3 Golf. The first three are 1H0 941 700, 1H0 941 700 B and 1H0 941 699 C.
Which Mk3 Golf years and engines does this diagram cover?
This plate is from the Mk3 Golf 1997 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.
Where is the complete Mk3 Golf factory parts catalogue?
The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.
