Halogen twin headlights — Mk3 Golf Lighting (1994 - 1997)

Factory title: Volkswagen Golf Cabriolet (1994 - 1998) - Halogen twin headlights

Generation: Mk3 1994 - 1997 (RDW) Group: Lighting Parts: 25 Primary OEM: 1H6 941 017 AF, 1H6 941 017 AG, 1H6 941 017 AE

Halogen twin headlights for the Volkswagen Golf Mk3 (1994 - 1997): factory exploded diagram 941030 from the Volkswagen ETKA parts catalogue, group 19 Lighting, listing 24 OEM part numbers across 25 catalogued positions including 1H6 941 017 AF, 1H6 941 017 AG and 1H6 941 017 AE. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 24 OEM part numbers across 25 numbered positions.

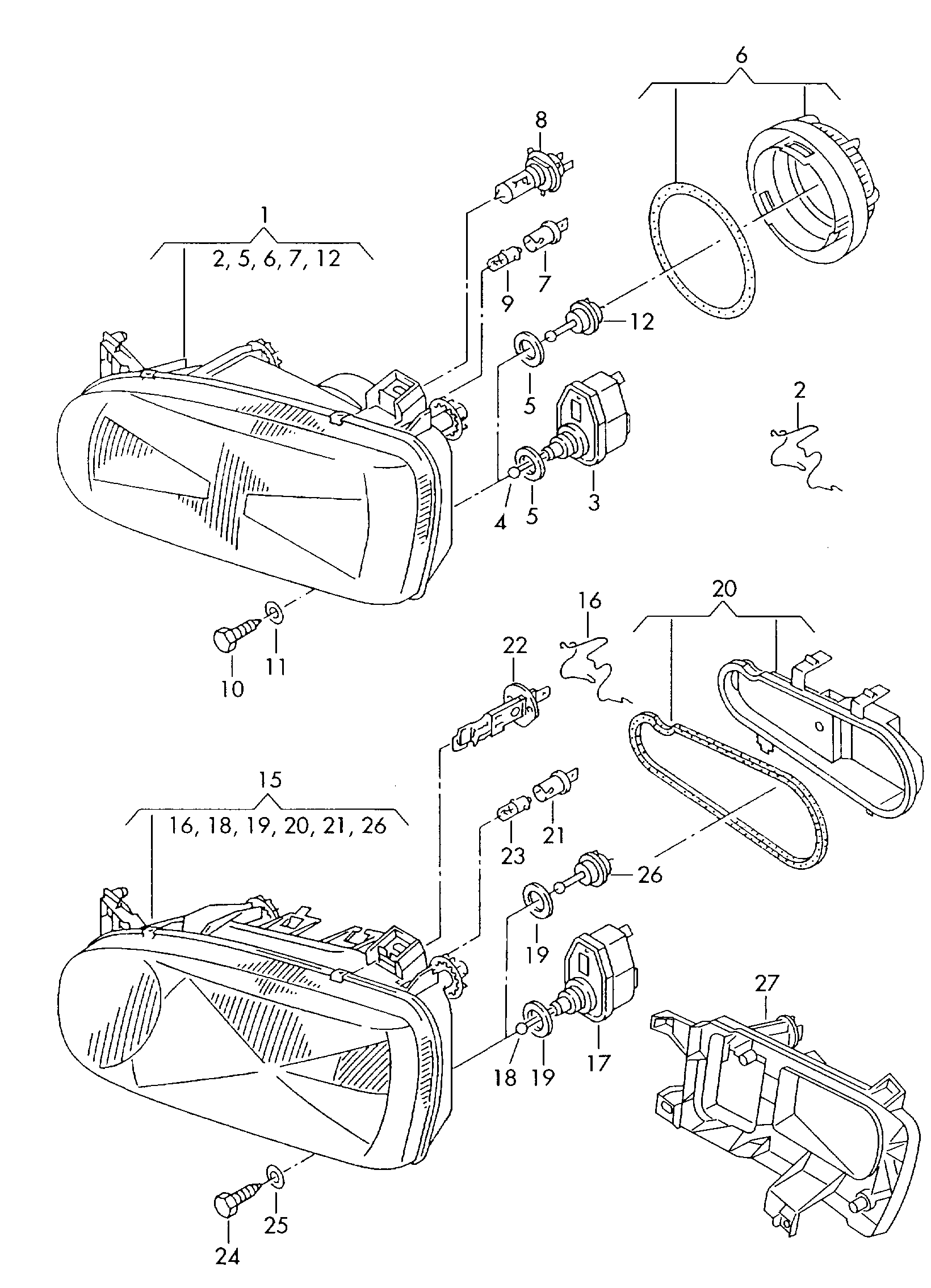

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
(15)	Halogen twin headlights(right-hand traffic only)	1H6 941 017 AF
(15)	Halogen twin headlights(left-hand traffic only)	1H6 941 017 AG
(15)	Halogen twin headlights(left-hand traffic only) "J.."	1H6 941 017 AE
(15)	Halogen twin headlights(left-hand traffic only) "J.."	1H6 941 017 AH
(15)	Halogen twin headlights(right-hand traffic only)	1H6 941 018 AF
(15)	Halogen twin headlights(left-hand traffic only)	1H6 941 018 AG
(15)	Halogen twin headlights(left-hand traffic only) "J.."	1H6 941 018 AH
(16)	spring forhalogen bulb	1H6 941 160 A
(17)	Headlight range control motor F 1 E-R-012 625>> also use: 1 H 6 941 141 1 H 6 941 141	1H0 941 295 E
(20)	Protective cap	1H6 941 608 A
(20)	Protective cap	1H6 941 607 A
(21)	Bulb carrier with cablesand Coupling element	7M0 941 953
(21)	Side light lamp socket withwiring setand Coupling element	7M0 941 953 A
(23)	bulb W 5 W-12 V 5 W W 5 W-12 V 5 W	N 017 753 2
(25)	Speed nut 4,8 X 19,5 X 16,5 4,8 X 19,5 X 16,5	N 015 458 1
16	spring forhalogen bulb	1H6 941 160
17	Headlight range control motor F >> 1 E-R-012 000 also use: 1 H 6 941 141 1 H 6 941 141	165 941 295
18	adjusting screw M 5 X 40 M 5 X 40	1H6 941 141
19	seal ring	443 941 323
22	Halogen bulb, blue glass 12 V 55 W H 1 12 V 55 W H 1	N 017 761 6
22	Halogen bulb H 1-12 V-55 W H 1-12 V-55 W	N 017 761 2
24	hexagon head panel screw 5,5 X 19 5,5 X 19	N 013 888 2
25	Washer 5,5 X 18 X 1,6 5,5 X 18 X 1,6	N 011 673 5
25	Washer B 5,5 X 18 X 1,6 B 5,5 X 18 X 1,6	N 011 673 3
26	No replacement part	—

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these lighting diagrams are drawn from.

Volkswagen OEM Parts Catalogues and Torque reference manuals! Get amongst it. Volkswagen OEM Parts Catalogues and Torque reference manuals from Type 19 Specialists — the printed editions the free catalogue pages are drawn from.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1994 - 1997
Generation region: RDW
Generation code: 146
Factory group: 19 Lighting
Factory subgroup: 941030
