Interior light glove compartment lid light switchfor hand — Mk3 Golf Lighting (1994 - 1997)

Factory title: Volkswagen Golf Cabriolet (1994 - 1998) - Interior light. luggage compartment light. Switch. for hand brake control system. Glove compartment lid light. Door warning light. rear light reflector

Generation: Mk3 1994 - 1997 (RDW) Group: Lighting Parts: 23 Primary OEM: 443 947 105 C 0 1C, 443 947 105 C, 1H0 947 561 A

Interior light glove compartment lid light switchfor hand for the Volkswagen Golf Mk3 (1994 - 1997): factory exploded diagram 947000 from the Volkswagen ETKA parts catalogue, group 19 Lighting, listing 23 OEM part numbers including 443 947 105 C 0 1C, 443 947 105 C and 1H0 947 561 A. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 23 OEM part numbers across 23 numbered positions.

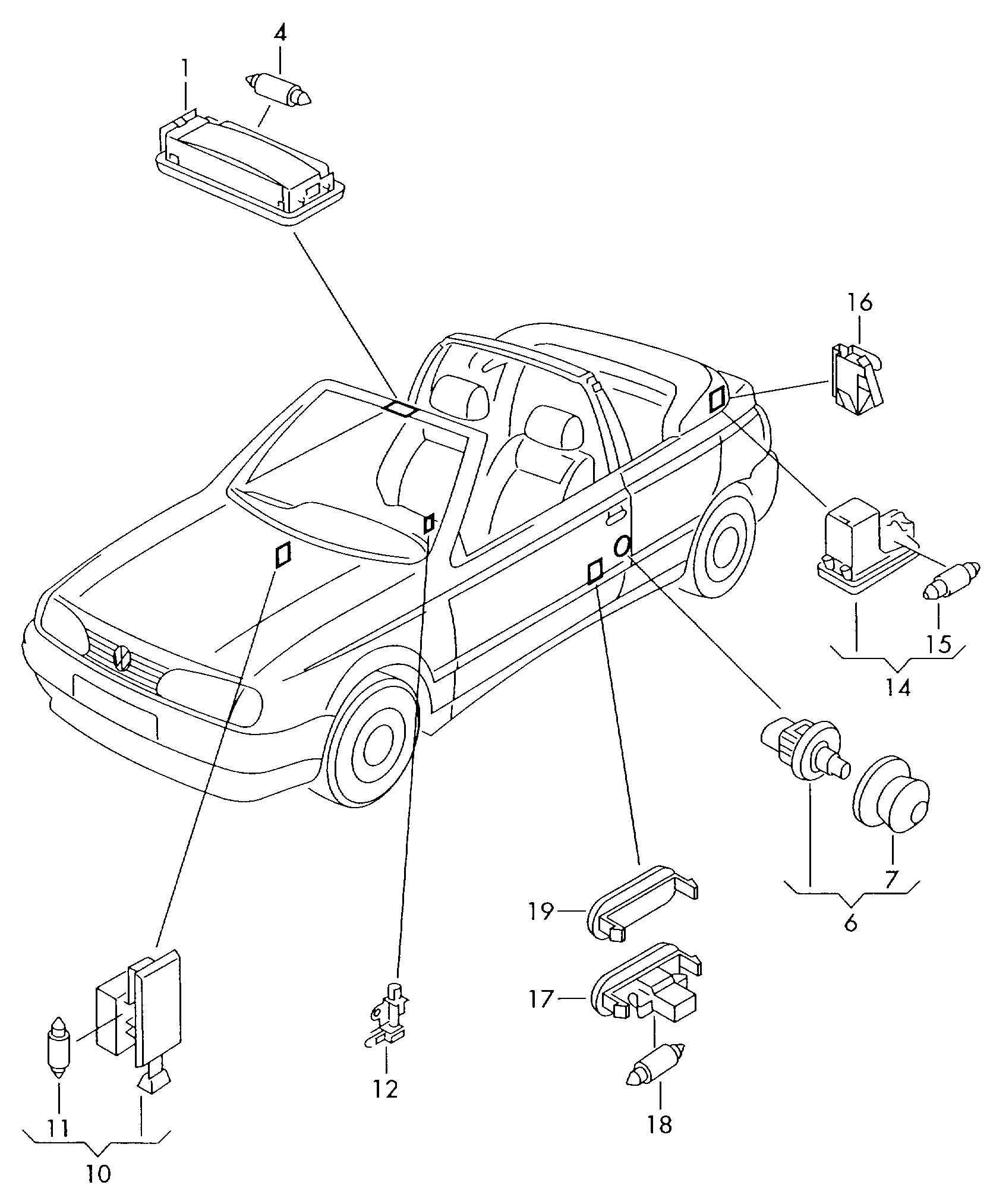

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Satin black	443 947 105 C 0 1C
(1)	interior light	443 947 105 C
(12)	Switch	1H0 947 561 A
(16)	Switch F 1 E-S-007 001>>*	4A0 959 905
(17)	Door warning light For vehicles with anti-theftalarm system	1J0 947 411
(18)	bulb only for: C 5 W-12 V 5 W 1 J 0 947 411 A/B C 5 W-12 V 5 W 1 J 0 947 411 A/B	N 017 725 2
10	Light	1H0 947 311
10	Light	1H0 947 301
11	bulb M-12 V 3 W M-12 V 3 W	N 017 726 2
14	Light	1H0 947 101
14	Light	1H0 947 113
15	bulb C 5 W-12 V 5 W C 5 W-12 V 5 W	N 017 725 2
16	Switch for luggage comp.light F >> 1 E-S-007 000*	333 947 561
17	Door warning light	1H0 947 411
17	Door warning light For vehicles with anti-theftalarm system	1J0 947 411 E
17	Door warning light	1H0 947 413
17	Door warning light	1J0 947 411 B
18	bulb only for: W 5 W-12 V 5 W 1 J 0 947 411 D/E W 5 W-12 V 5 W 1 J 0 947 411 D/E	N 017 753 2
19	rear light reflector	1H0 947 419
4	bulb K 12 V 10 W K 12 V 10 W	N 017 723 2
5	bulb W 5 W-12 V 5 W W 5 W-12 V 5 W	N 017 753 2
6	Switchfor door contact	6N0 947 563
7	Sealfor door contact	1H0 947 565
