Interior light reading light glove compartment lid light — Mk3 Golf Lighting (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Interior light. Reading light. luggage compartment light. Switch. for hand brake control system. Glove compartment lid light. load compartment light. Door warning light. rear light reflector

Generation: Mk3 1997 (RDW) Group: Lighting Parts: 38 Primary OEM: 1H0 947 291 H 50, 1H0 947 303 Q 40, 1H0 947 303 H 50

Interior light reading light glove compartment lid light for the Volkswagen Golf Mk3 (1997): factory exploded diagram 947000 from the Volkswagen ETKA parts catalogue, group 19 Lighting, listing 37 OEM part numbers across 38 catalogued positions including 1H0 947 291 H 50, 1H0 947 303 Q 40 and 1H0 947 303 H 50. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 37 OEM part numbers across 38 numbered positions.

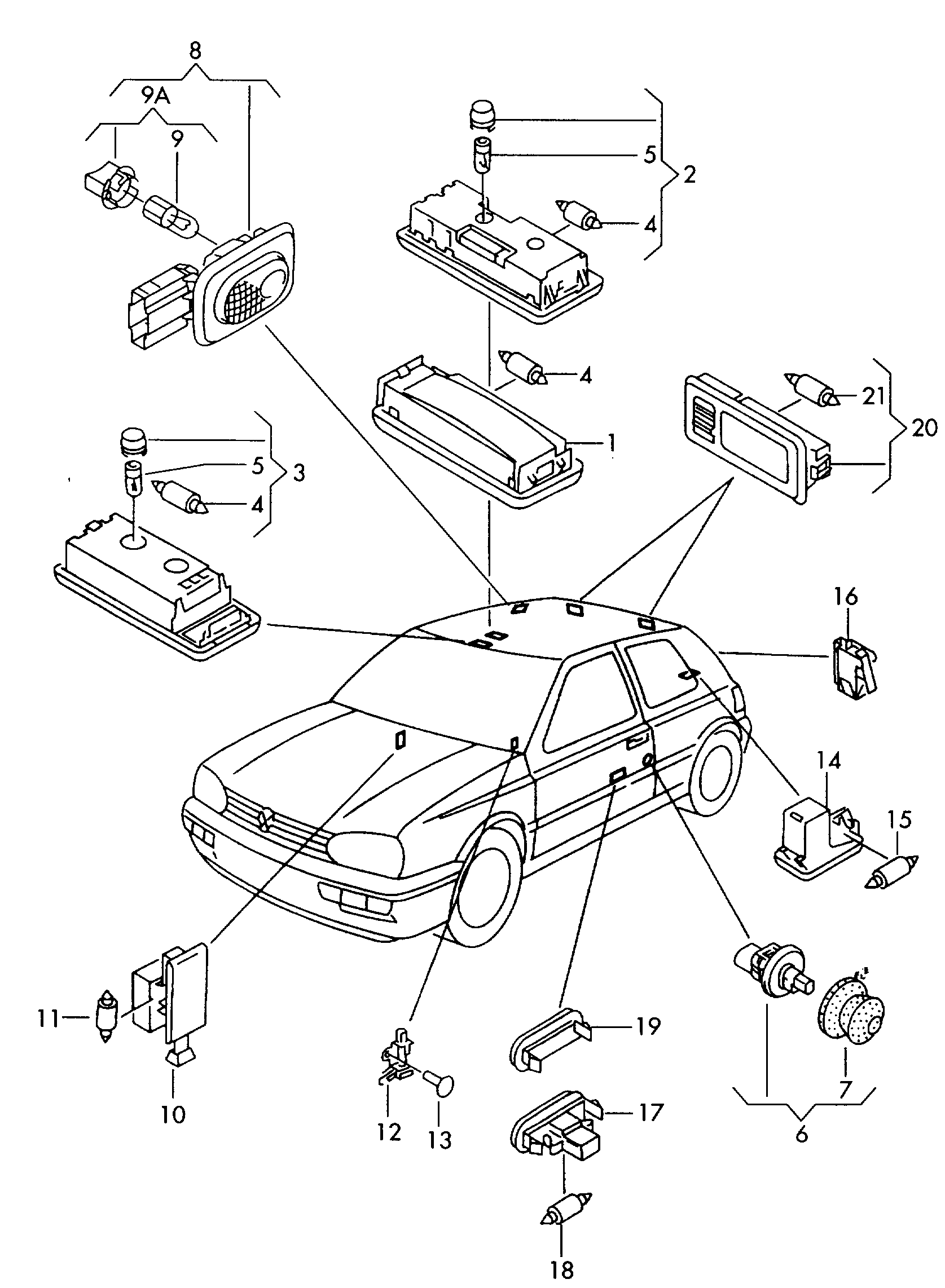

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	light grey	1H0 947 291 H 50
	beaver	1H0 947 303 Q 40
	blue grey	1H0 947 303 H 50
	load compartment light post	—
	beaver	1H0 947 291 Q 40
	beaver	357 947 105 C Q 40
	blue grey	1H0 947 105 H 50
	beaver	1H0 947 105 Q 40
	Satin black	443 947 105 C 0 1C
	blue grey	357 947 105 C H 50
(10)	Light	1H0 947 301
(12)	Switch	1H0 947 561 A
(18)	bulb only for: W 5 W-12 V 5 W 1 J 0 947 411 D/E W 5 W-12 V 5 W 1 J 0 947 411 D/E	N 017 753 2
(3)	Interior and reading lightwith switch-off delay For vehicles with electricsliding roof actuation	1H0 947 105
(6)	Switchfor door contact	6N0 947 563
10	Light	1H0 947 311
11	bulb M-12 V 3 W M-12 V 3 W	N 017 726 2
14	Light	1H0 947 101
14	Light	1H0 947 113
15	bulb C 5 W-12 V 5 W C 5 W-12 V 5 W	N 017 725 2
16	Switch for luggage comp.light	333 947 561
17	Door warning light	1H0 947 413
17	Door warning light	1J0 947 411 B
17	Door warning light	1J0 947 411 E
18	bulb only for: C 5 W-12 V 5 W 1 J 0 947 411 A/B C 5 W-12 V 5 W 1 J 0 947 411 A/B	N 017 725 2
19	rear light reflector	1H0 947 419
2	Interior and reading lightwith switch-off delay	357 947 105 C
20	interior light	443 947 105 C
21	bulb K 12 V 10 W K 12 V 10 W	N 017 723 2
21	bulb K-12 V 10 W K-12 V 10 W	N 017 723 4
4	bulb K-12 V 10 W K-12 V 10 W	N 017 723 4
4	bulb K 12 V 10 W K 12 V 10 W	N 017 723 2
5	bulb W 5 W-12 V 5 W W 5 W-12 V 5 W	N 017 753 2
7	Sealfor door contact	1H0 947 565
8	Light	1H0 947 303
8	Light	1H0 947 291
9	bulb W 5 W-12 V 5 W W 5 W-12 V 5 W	N 017 753 2
9A	Bulb carrier with bulb W 5 W 12 V 5 W W 5 W 12 V 5 W	1H0 947 297
