Relays control units — Mk3 Golf Lighting (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Relay. central electrics. Fuse socket

Generation: Mk3 1997 (RDW) Group: Lighting Parts: 37 Primary OEM: 357 919 508, 3A0 919 506 B, 1H0 941 597

Relays control units for the Volkswagen Golf Mk3 (1997): factory exploded diagram 937070 from the Volkswagen ETKA parts catalogue, group 19 Lighting, listing 35 OEM part numbers across 37 catalogued positions including 357 919 508, 3A0 919 506 B and 1H0 941 597. Parts on this plate carry the engine codes 1Y, 1Z, AAA, AAZ, ABF, ACC, ADZ and AEP. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 35 OEM part numbers across 37 numbered positions.

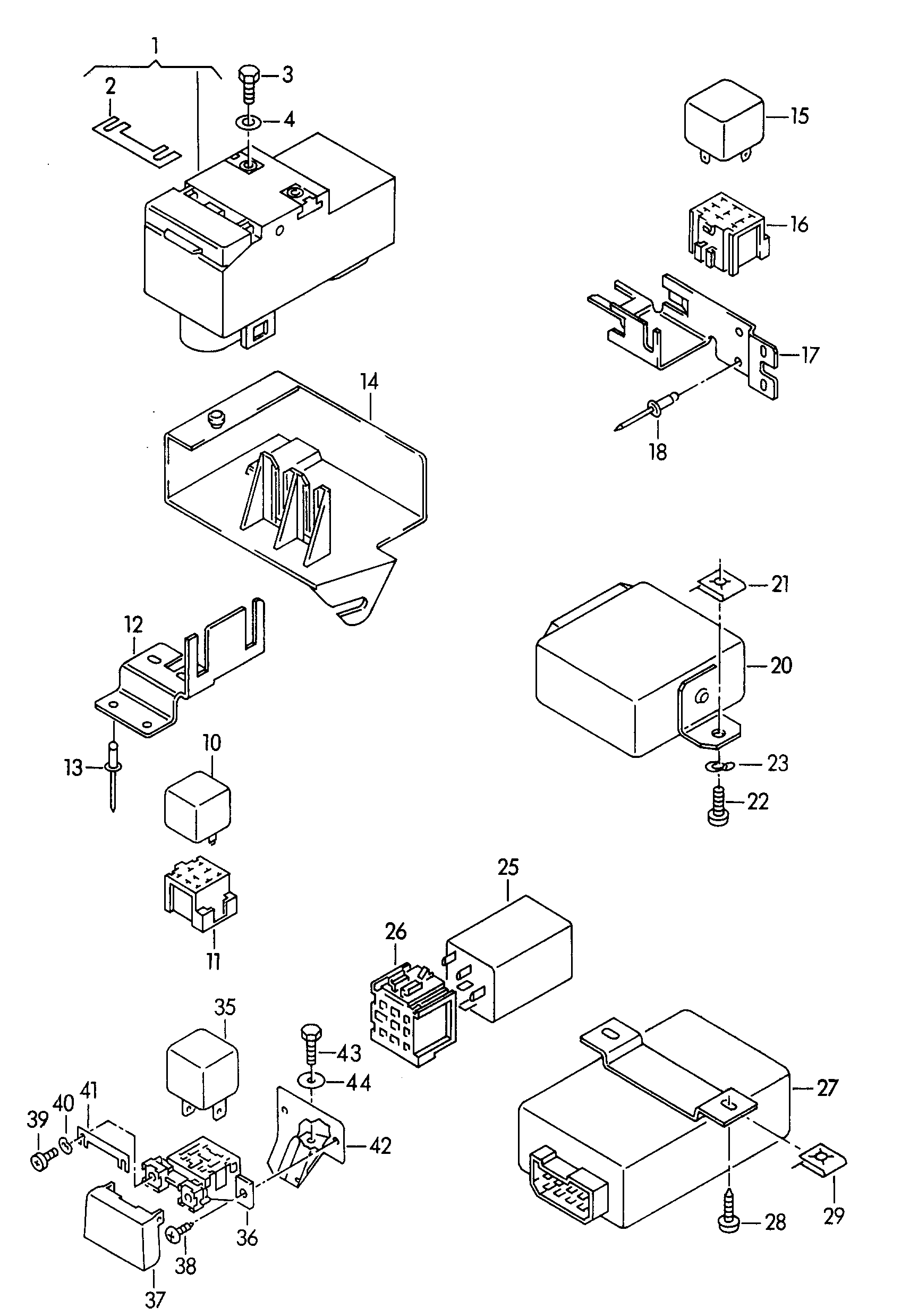

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Control unit for light andauxiliary battery ecomatic	—
-	Cover	357 919 508
(1)	Control unit for radiatorfan Manualgearbox+AAA	3A0 919 506 B
(1)	Control unit for light andauxiliary battery	1H0 941 597
(1)	Control unit for radiatorfanfor vehicles with automaticortrailer towing AAA,1 Y 1YAAA	3A0 919 506
(1)	Control unit for radiatorfanfor trailer towingorfor vehicle use in warmclimates 1 Y 1Y	357 919 506 D
(1)	Control unit Radiator fan For vehicles with radiator fanrun-on AEP,AKR,AGG,ABF ABFAEPAGGAKR	357 919 506 E
(1)	Control unit for radiatorfanfor vehicles with air condit. only to be used for: use if required: 357 919 506357 919 506 AN 017 125 2 AAA,AAZ,AHU,ALE,AFN,AFT,AKS,ABF,ACC,ADZ,AEP,AGG,AKR,1 Z 357 919 506357 919 506 AN 017 125 2 1ZAAAAAZABFACCADZAEPAFNAFTAGGAHUAKRAKSALE	3A0 919 506
(1)	Control unit for radiatorfan AAZ AAZ	357 919 506 D
(1)	Control unit for radiatorfanfor trailer towingorfor vehicle use in warmclimates 1 Z,AAZ,AHU,AFN,ALE 1ZAAZAFNAHUALE	357 919 506 C
(1)	Control unit for radiatorfanfor vehicles with air condit. only to be used for: use if required: 1 H 0 919 506357 919 506 AN 017 125 23 A 0 973 715 AAA,AAZ,AHU,ALE,AFN,AFT,AKS,ABF,ACC,ADZ,AEP,AGG,AKR,1 Z 1 H 0 919 506357 919 506 AN 017 125 23 A 0 973 715 1ZAAAAAZABFACCADZAEPAFNAFTAGGAHUAKRAKSALE	3A0 919 506
(2)	flat fuse 19/2 x 5	N 017 131 16
(2)	fuse 30 A 30 A	N 017 125 2
(2)	flat fuse 19/2 x 5	N 017 131 13
(22)	oval head panel screw 4,8 X 13 4,8 X 13	N 013 968 1
(27)	speed regulator	1H0 907 305
(3)	Hexagon bolt M 6 X 12 M 6 X 12	N 010 212 26
(3)	Hexagon bolt M 6 X 12 M 6 X 12	N 010 212 26
10	Relay Rear fog light	701 945 383
11	relay plate	161 937 501 B
12	No replacement part Retainer for relay	—
13	Pop rivet 4,8 X 7,6 4,8 X 7,6	N 016 194 3
15	Control unit for seatheating	161 919 533
15	Control unit for seatheating	1E0 919 533
16	relay plate	161 937 501 B
17	Retainer for relay	1H0 972 595 C
17	Retainer for relay	1H0 972 595 B
17	Retainer for relay	1H0 972 595 E
18	Pop rivet 4,8 X 7,6 4,8 X 7,6	N 016 194 3
2	fuse 50 A 50 A	N 017 125 1
2	fuse 50 A 50 A	N 017 125 1
20	emergency siren system relay	191 951 273
21	Speed nut 4,8 X 15 X 16,2 4,8 X 15 X 16,2	N 015 436 1
28	oval head panel screw ST 4,8 X 16,0 ST 4,8 X 16,0	N 013 969 4
29	Speed nut M 4 X 13 X 11,5 M 4 X 13 X 11,5	N 902 825 01
4	Washer 6,5 6,5	N 011 547 6
4	Washer 6,5 6,5	N 011 547 6
