Which VW part numbers are on the rotating warning light diagram for the Mk3 Golf?

This diagram lists 9 OEM part numbers for the Mk3 Golf. The first three are 165 941 401, 1H0 941 083 and 1H0 941 091.

Which Mk3 Golf years and engines does this diagram cover?

This plate is from the Mk3 Golf 1997 generation (RDW). The factory catalogue records no engine-code restriction on it, so it applies to all engines listed in the factory catalogue for this generation.

Where is the complete Mk3 Golf factory parts catalogue?

The Mk3 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk3-full/. It carries every plate in this catalogue, not just this one.

Rotating warning light — Mk3 Golf Lighting (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Headlights

Generation: Mk3 1997 (RDW) Group: Lighting Parts: 10 Primary OEM: 165 941 401, 1H0 941 083, 1H0 941 091

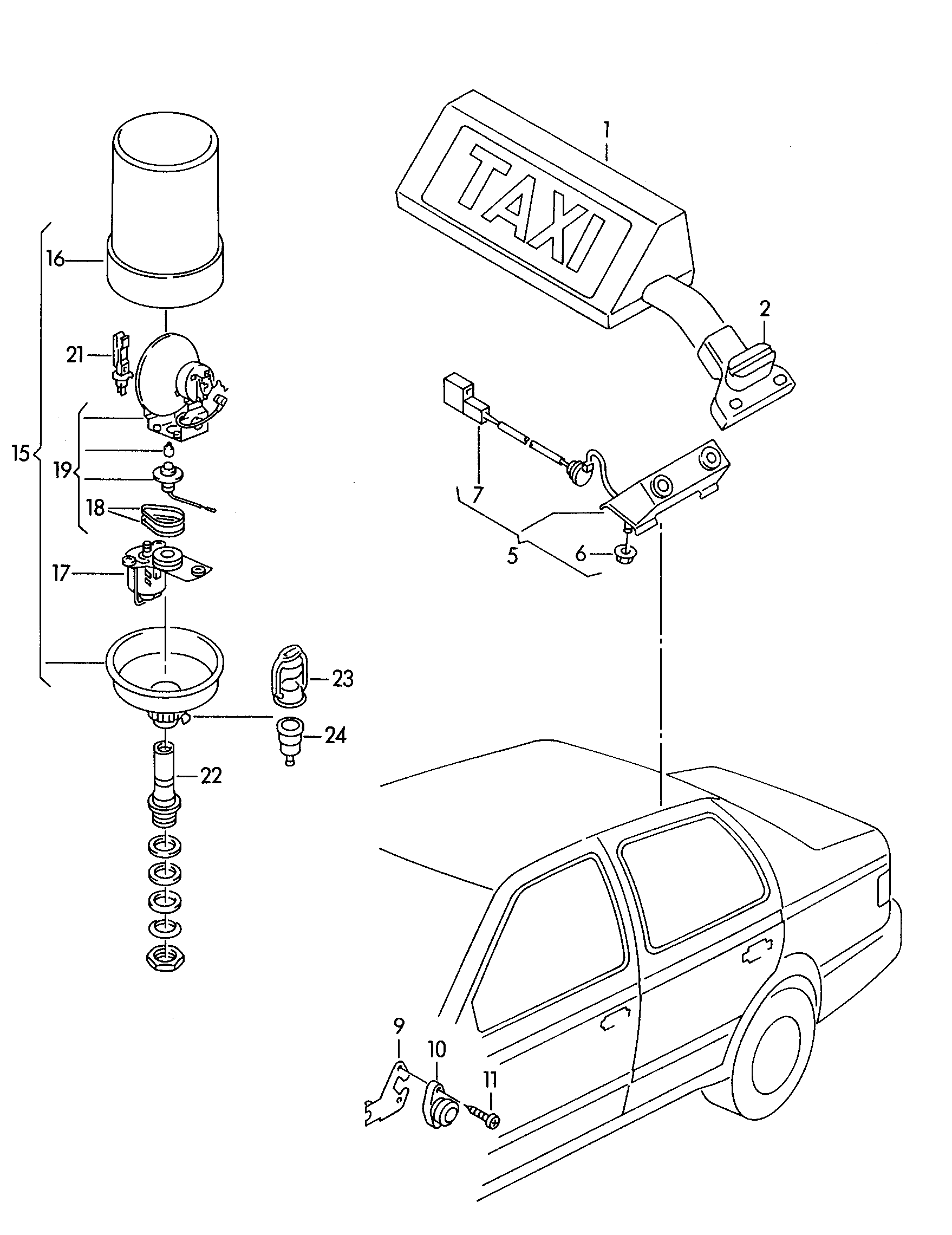

Rotating warning light for the Volkswagen Golf Mk3 (1997): factory exploded diagram 941080 from the Volkswagen ETKA parts catalogue, group 19 Lighting, listing 9 OEM part numbers across 10 catalogued positions including 165 941 401, 1H0 941 083 and 1H0 941 091. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 9 OEM part numbers across 10 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
-	Standrohr	165 941 401
15	rotating warning light	1H0 941 083
16	glass forrotating emergen.light	1H0 941 091
17	Electric motor	1H0 941 099
18	v-belt	183 941 101
19	reflector	1H0 941 211
21	Halogen bulb H 1-12 V-55 W H 1-12 V-55 W	N 017 761 2
22	No replacement part	—
23	Cover cap	181 941 425
24	Socket	181 941 429

From the Type 19 workshop

Volkswagen Golf Mk3 work in the Type 19 workshop — the same cars these lighting diagrams are drawn from.

Volkswagen OEM Parts Catalogues and Torque reference manuals! Get amongst it. Volkswagen OEM Parts Catalogues and Torque reference manuals from Type 19 Specialists — the printed editions the free catalogue pages are drawn from.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk3
Model years: 1997
Generation region: RDW
Generation code: 184
Factory group: 19 Lighting
Factory subgroup: 941080
