Switch brake lightswitch reversing light socketfor models — Mk3 Golf Lighting (1994 - 1997)

Factory title: Volkswagen Golf Cabriolet (1994 - 1998) - Brake, turn signal and taillights. Licence plate light

Generation: Mk3 1994 - 1997 (RDW) Group: Lighting Parts: 13 Primary OEM: 02A 945 413 C, 191 945 515 B, 191 945 515

Switch brake lightswitch reversing light socketfor models for the Volkswagen Golf Mk3 (1994 - 1997): factory exploded diagram 945050 from the Volkswagen ETKA parts catalogue, group 19 Lighting, listing 13 OEM part numbers including 02A 945 413 C, 191 945 515 B and 191 945 515. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 13 OEM part numbers across 13 numbered positions.

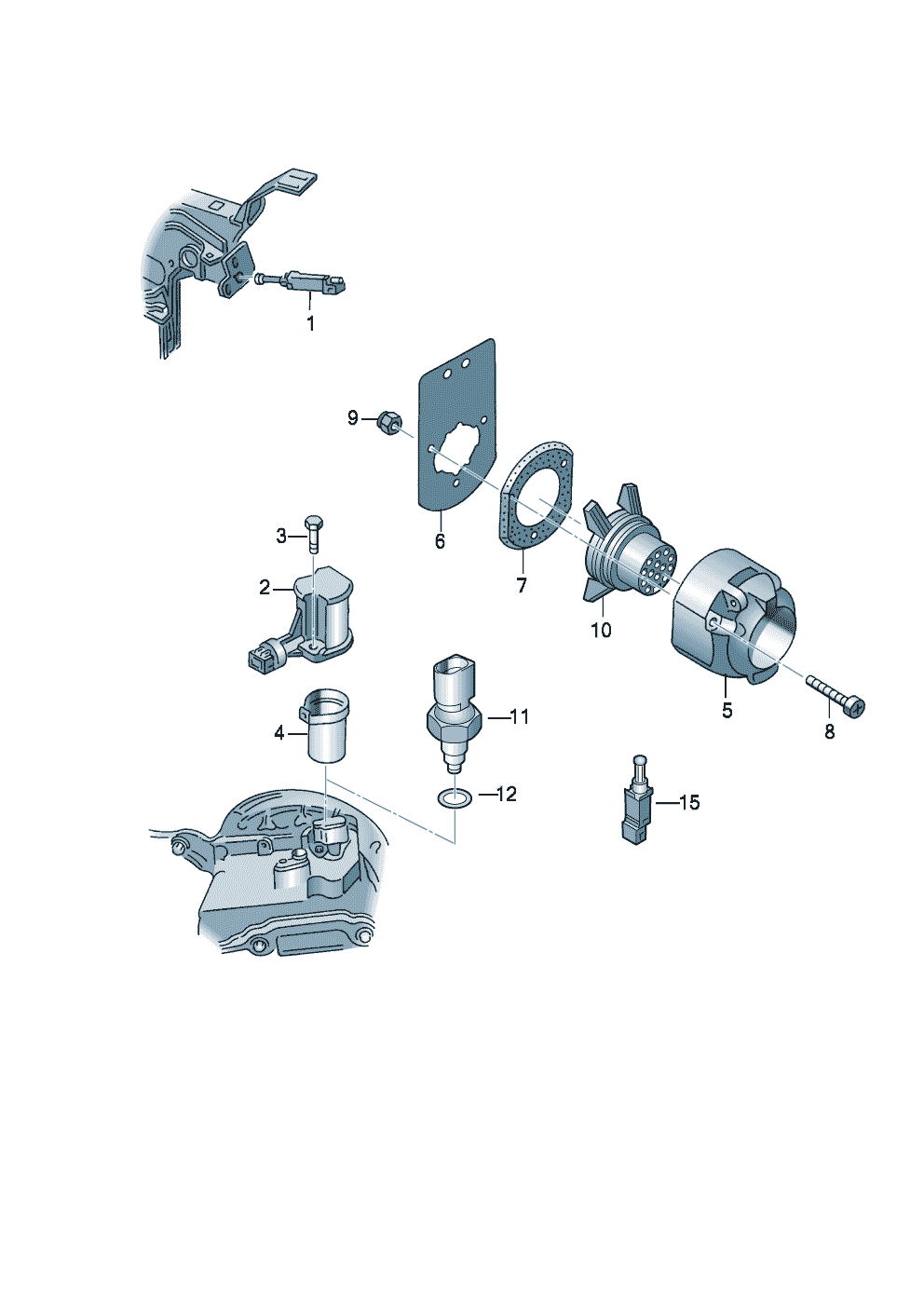

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
(2)	switch for reversing light	02A 945 413 C
1	switch - brake light	191 945 515 B
1	switch - brake light	191 945 515
10	rd. connector sleeve housing	7M0 971 946
3	Hexagon bolt M 7 X 1,25 X 19 M 7 X 1,25 X 19	N 901 678 01
4	Sleeveswitch for reversing light	02A 919 835
5	housing for trailer towingsocket also use: 7 M 0 971 946 7 M 0 971 946	1H0 945 505 A
6	Bracket	1H0 945 509
7	Seal	1H0 945 510
7	Grommet	8A0 945 527
8	fillister hd. bolt M 5 X 30 M 5 X 30	N 014 156 5
8	fillister hd. bolt M 5 X 30 M 5 X 30	N 014 156 3
9	hexagon nut, self-locking M 5 M 5	N 011 182 1
