Switch turn signals main dip beams headlight flasher wipers — Mk3 Golf Lighting (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Turn signal indicator

Generation: Mk3 1997 (RDW) Group: Lighting Parts: 27 Primary OEM: 1H0 953 516 AE0 1C, 1H0 953 516 AD0 1C, 1H0 953 516 AC0 1C

Switch turn signals main dip beams headlight flasher wipers for the Volkswagen Golf Mk3 (1997): factory exploded diagram 953030 from the Volkswagen ETKA parts catalogue, group 19 Lighting, listing 27 OEM part numbers including 1H0 953 516 AE0 1C, 1H0 953 516 AD0 1C and 1H0 953 516 AC0 1C. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 27 OEM part numbers across 27 numbered positions.

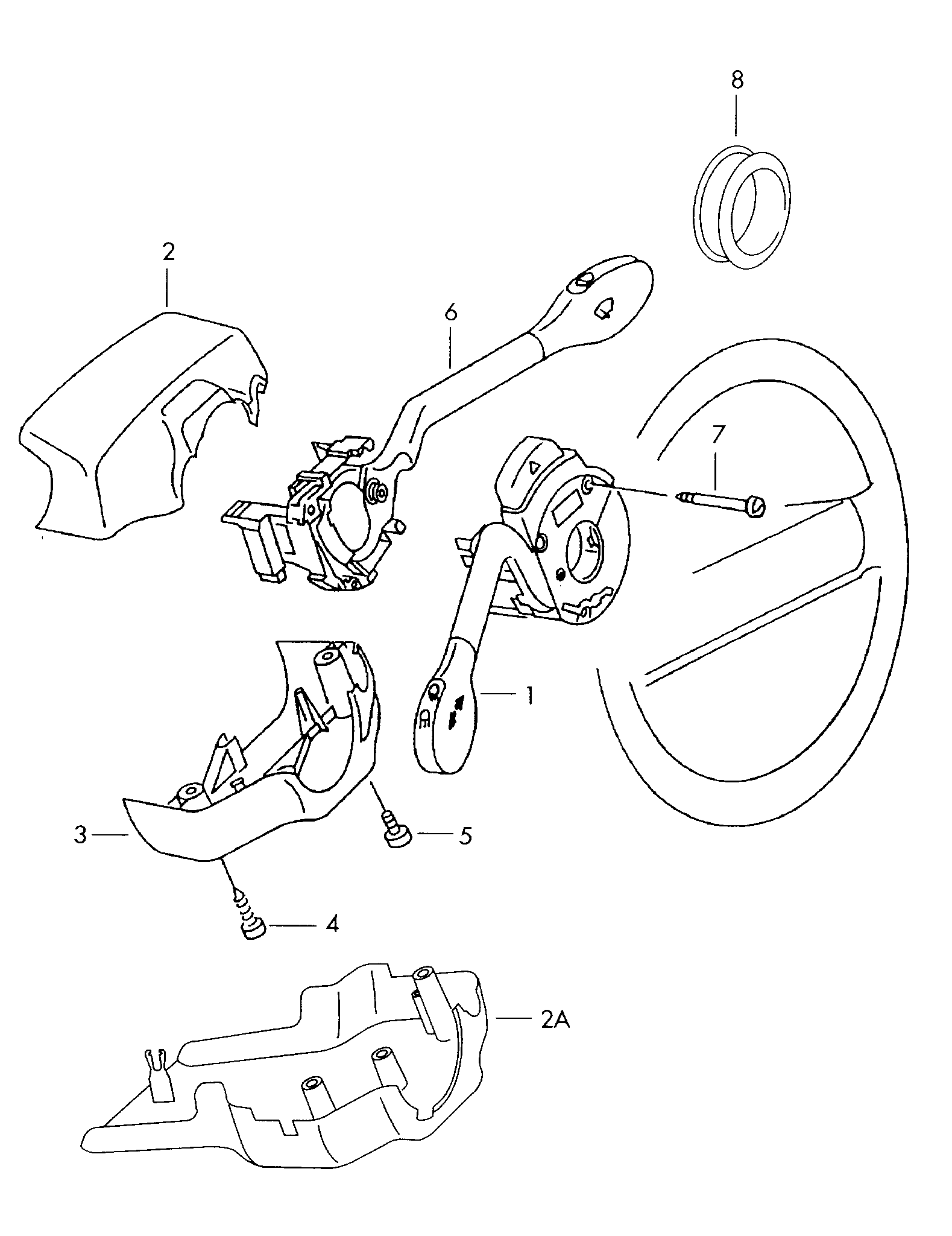

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Satin black	1H0 953 516 AE0 1C
	Satin black	1H0 953 516 AD0 1C
	Satin black	1H0 953 516 AC0 1C
	Satin black	1H0 953 513 D 0 1C
	Satin black	1H0 953 513 C 0 1C
	Satin black	1H0 953 513 E 0 1C
	Satin black	1H0 953 519 B 0 1C
	Satin black	1H0 953 515 K 0 1C
	Satin black	535 953 519 B 0 1C
	Satin black	1H0 953 515 L 0 1C
	Satin black	1H0 953 519 0 1C
	Satin black	1H0 953 516 AB0 1C
(1)	switch for turn signals,mainand dip beam, headlightflasher and parking light Satin black	1H0 953 513 C
(1)	switch for turn signals,mainand dip beam, headlightflasher and parking lightfor models withcruise control system	1H0 953 513 D
(1)	switch for turn signals,mainand dip beam, headlightflasher and parking lightfor models with two-wayradio	1H0 953 513 E
(2)	Trim upper part	1H0 953 515 K
(2)	Trim upper partfor mechanical height-adjustable steering column	1H0 953 515 L
(3)	Trim lower sectionfor mechanical height-adjustable steering column	1H0 953 516 AD
(3)	Trim lower sectionfor models with airbag	1H0 953 516 AC
(3)	Trim lower sectionfor mechanical height-adjustable steering columnfor models with airbag	1H0 953 516 AE
(3)	Trim lower section	1H0 953 516 AB
(6)	Switch for windscreen wiper,wiper-washer andmultifunction displayactuation with storage lever	535 953 519 B
(6)	switch for wipers/wash-wipeoperation ecomatic	1H0 953 519 B
4	oval head panel screw 3,9 X 16 3,9 X 16	N 903 494 01
5	fillister hd. bolt M 4 X 8 M 4 X 8	N 014 122 8
6	switch for wipers/wash-wipeoperation	1H0 953 519
7	fillister hd. bolt	321 953 573
