Switches dashboard — Mk3 Golf Lighting (1997)
Factory title: Volkswagen Golf (1997 - 1998) - Headlights

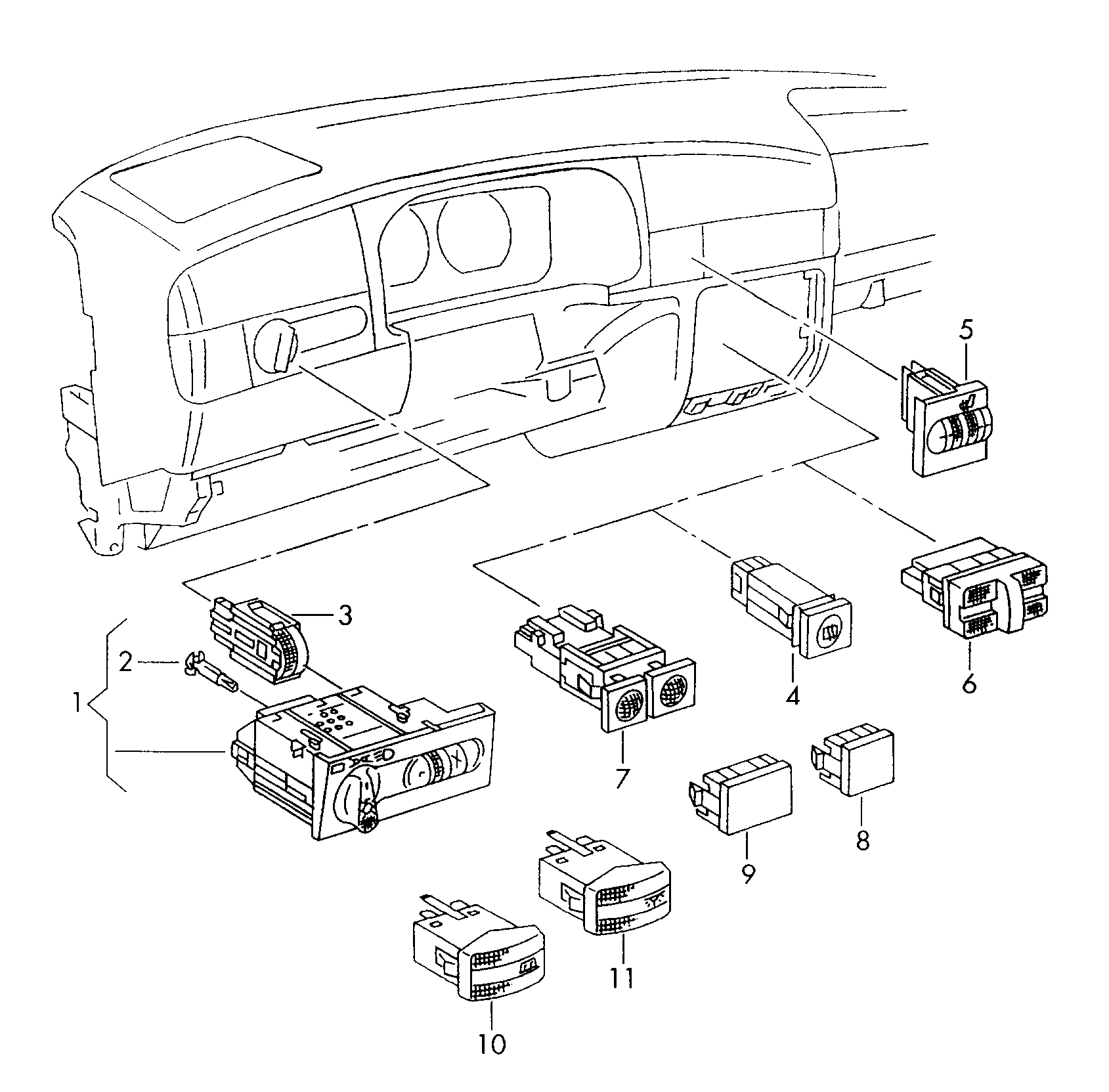

Switches dashboard for the Volkswagen Golf Mk3 (1997): factory exploded diagram 941085 from the Volkswagen ETKA parts catalogue, group 19 Lighting, listing 41 OEM part numbers including 1H6 941 531 AP0 1C, 1H1 858 981 0 1C and 1H1 858 981 B 0 1C. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.
Parts on this diagram
This Mk3 Golf plate lists 41 OEM part numbers across 41 numbered positions.
| № | Description | Part number |
|---|---|---|
| Satin black | 1H6 941 531 AP0 1C | |
| Satin black | 1H1 858 981 0 1C | |
| Satin black | 1H1 858 981 B 0 1C | |
| Satin black | 1H0 858 179 0 1C | |
| Satin black | 1H0 959 543 0 1C | |
| Satin black | 1H0 959 621 B 0 1C | |
| Satin black | 1H0 959 855 A 0 1C | |
| Satin black | 1H0 959 621 A 0 1C | |
| Satin black | 1H6 963 563 B 0 1C | |
| Satin black | 1H6 963 563 A 0 1C | |
| Satin black | 1H0 858 180 0 1C | |
| Satin black | 1H6 941 531 AG0 1C | |
| Satin black | 1H6 941 531 A 0 1C | |
| Satin black | 1H6 941 531 AH0 1C | |
| Satin black | 1H6 941 531 B 0 1C | |
| Satin black | 1H6 941 531 AJ0 1C | |
| Satin black | 1H6 941 531 AF0 1C | |
| (1) | multiple switch for sidelights, headlights, front andrear fog lightsfor models withday driving headlights "S..","FIN","N..","DK." | 1H6 941 531 AG |
| (1) | multiple switch for sidelights, headlights and rearfog light For vehicles with electricheadlight range control | 1H6 941 532 D |
| (1) | multiple switch for sidelights, headlights, front andrear fog lightsfor models withday driving headlights For vehicles with electricheadlight range control "S..","FIN","N..","DK." | 1H6 941 532 E |
| (1) | multiple switch for sidelights, headlights, front andrear fog lights For vehicles with city drivinglight For vehicles with electricheadlight range control "GB." | 1H6 941 532 F |
| (1) | multiple switch for sidelights, headlights, front andrear fog lights | 1H6 941 531 B |
| (1) | multiple switch for sidelights, headlights and rearfog light | 1H6 941 531 A |
| (1) | multiple switch for sidelights, headlights and rearfog lightfor models withday driving headlights "S..","FIN","N..","DK." | 1H6 941 531 AF |
| (1) | multiple switch for sidelights, headlights and rearfog light | 1H6 941 531 AH |
| (1) | multiple switch for sidelights, headlights, front andrear fog lights | 1H6 941 531 AJ |
| (1) | multiple switch for sidelights, headlights and rearfog lightfor models withday driving headlights "S.." | 1H6 941 531 AP |
| (3) | Switch for headlight rangecontrol | 1H6 941 333 B |
| (3) | Switch for headlight rangecontrol | 1H6 941 333 C |
| (4) | switch for heatedrear window | 1H0 959 621 B |
| (4) | switch for heatedrear window ECOMATIC | 1H0 959 621 A |
| (5) | Switch for seat heating(driver and passenger side) | 1H6 963 563 B |
| (7) | switch for air conditioner | 1H0 959 543 |
| (8) | Cover cap with symbolfor diagnostic plug TJG TJG | 1H1 858 981 B |
| (8) | Cover capfor diagnostic plug | 1H1 858 981 |
| 1 | multiple switch for sidelights, headlights, front andrear fog lights For vehicles with electricheadlight range control | 1H6 941 532 |
| 2 | Bulb carrier with bulb | 1H0 919 243 A |
| 5 | Switch for seat heating(driver and passenger side) | 1H6 963 563 A |
| 6 | Switch for electricwindow regulator | 1H0 959 855 A |
| 8 | Dummy cover | 1H0 858 179 |
| 9 | Dummy cover | 1H0 858 180 |
