Turn signal indicator — Mk3 Golf Lighting (1997)

Factory title: Volkswagen Golf (1997 - 1998) - Turn signal indicator

Generation: Mk3 1997 (RDW) Group: Lighting Parts: 41 Primary OEM: 1H0 998 101, 3A0 949 117 B, 3A0 949 101 A

Turn signal indicator for the Volkswagen Golf Mk3 (1997): factory exploded diagram 953000 from the Volkswagen ETKA parts catalogue, group 19 Lighting, listing 40 OEM part numbers across 41 catalogued positions including 1H0 998 101, 3A0 949 117 B and 3A0 949 101 A. Published by Type 19 Specialists; the complete Mk3 Golf catalogue is in print as the Mk3 Golf Master Parts Catalogue.

Parts on this diagram

This Mk3 Golf plate lists 40 OEM part numbers across 41 numbered positions.

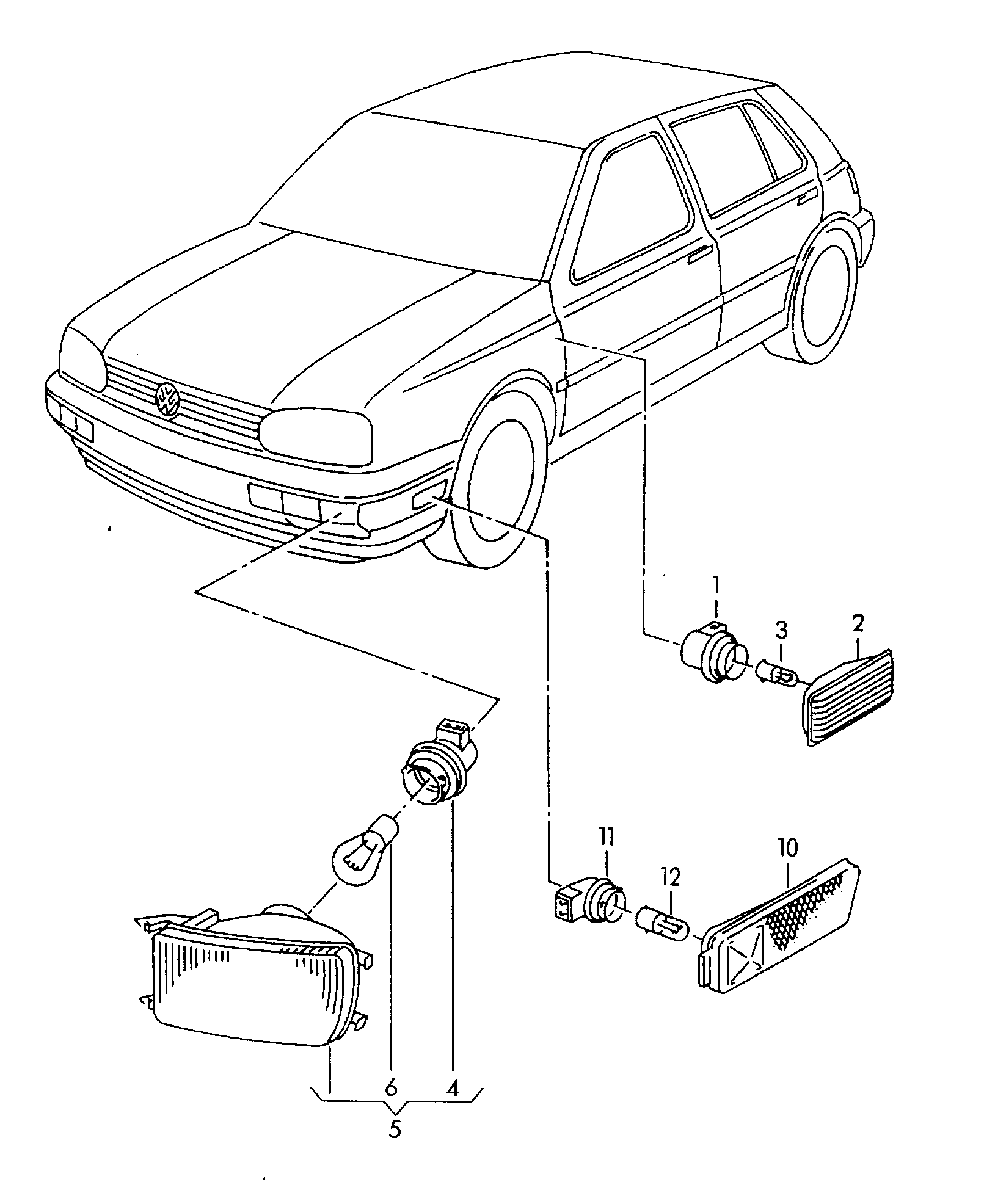

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
-	Install.kit for flashing light	1H0 998 101
-	Install.kit for flashing light also use: 1 H 0 953 123 F 1 H 0 953 123 F	1H0 998 101
(2)	turn signal, darkened	3A0 949 117 B
(2)	Turn signal indicator	3A0 949 101 A
(2)	turn signal, darkened	3A0 949 101 B
(2)	Turn signal indicator	3A0 949 117
(4)	Bulb holder Turn signal indicator	1H0 953 123 F
(4)	Bulb holder Turn signal indicator	1H0 953 123 G
(4)	Bulb holder Turn signal indicator	1H0 953 123 E
(4)	Bulb holder Turn signal indicator	6K0 953 123
(5)	Turn signal indicator	1H0 953 050 G
(5)	turn signal, darkened	1H0 953 156 E
(5)	Turn signal indicator	1H0 953 049
(5)	Turn signal indicator supplied alternatively: 1 H 0 953 049 D 1 H 0 953 049 D	1H0 953 049 D
(5)	Turn signal indicator supplied alternatively: 1 H 0 953 049 D 1 H 0 953 049 D	1H0 953 049 A
(5)	turn signal, darkened	1H0 953 049 E
(5)	Turn signal indicator	1H0 953 050
(5)	Turn signal indicator supplied alternatively: 1 H 0 953 050 D 1 H 0 953 050 D	1H0 953 050 D
(5)	Turn signal indicator supplied alternatively: 1 H 0 953 050 D 1 H 0 953 050 D	1H0 953 050 A
(5)	turn signal, darkened	1H0 953 050 E
(5)	Turn signal indicator	1H0 953 049 F
(5)	Turn signal indicator	1H0 953 049 G
(5)	turn signal, darkened	1H0 953 049 H
(5)	Turn signal indicator	1H0 953 050 F
(5)	turn signal, darkened	1H0 953 050 H
(5)	Turn signal indicator	1H0 953 156
(5)	Turn signal indicator	1H0 953 156 A
1	Bulb holder	1H0 949 111
10-12	for usa only	—
3	bulb W 5 W-12 V 5 W W 5 W-12 V 5 W	N 017 753 2
4	Bulb holder for turn signals:	6K0 953 123 B
4	Bulb holder for turn signals:	6K0 953 123 C
4	Bulb holder for turn signals:	701 953 123
4	Bulb holder Turn signal indicator	1H0 953 123
5	Turn signal indicator	1H0 953 155
5	turn signal, darkened	1H0 953 155 E
5	Turn signal indicator	1H0 953 155 A
6	bulb for turn signals: P 21 W-12 V 21 W P 21 W-12 V 21 W	N 017 732 2
6	bulb P 21 W-12 V 21 W P 21 W-12 V 21 W	N 017 732 2
6	bulb, yellow glass for turn signals: PY 21 W 12 V 21 W PY 21 W 12 V 21 W	N 102 564 01
6	bulb, yellow glassturn signal, darkened PY 21 W 12 V 21 W PY 21 W 12 V 21 W	N 102 564 01
