2001 cylinder block with pistons oil sump — Mk4 Golf Engine (1998)

Factory title: Volkswagen Golf/Golf R32 (1998 - 2001) - Cylinder block with pistons. oil sump

Generation: Mk4 1998 (RDW) Group: Engine Rebuild step 1 Parts: 32 Primary OEM: 071 103 265 X, 034 103 379, 034 103 113 B

2001 cylinder block with pistons oil sump for the Volkswagen Golf Mk4 (1998): factory exploded diagram 103060 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 30 OEM part numbers across 32 catalogued positions including 071 103 265 X, 034 103 379 and 034 103 113 B. Parts on this plate carry the engine code AGZ. Published by Type 19 Specialists; the complete Mk4 Golf catalogue is in print as the Mk4 Golf Master Parts Catalogue.

Parts on this diagram

This Mk4 Golf plate lists 30 OEM part numbers across 32 numbered positions.

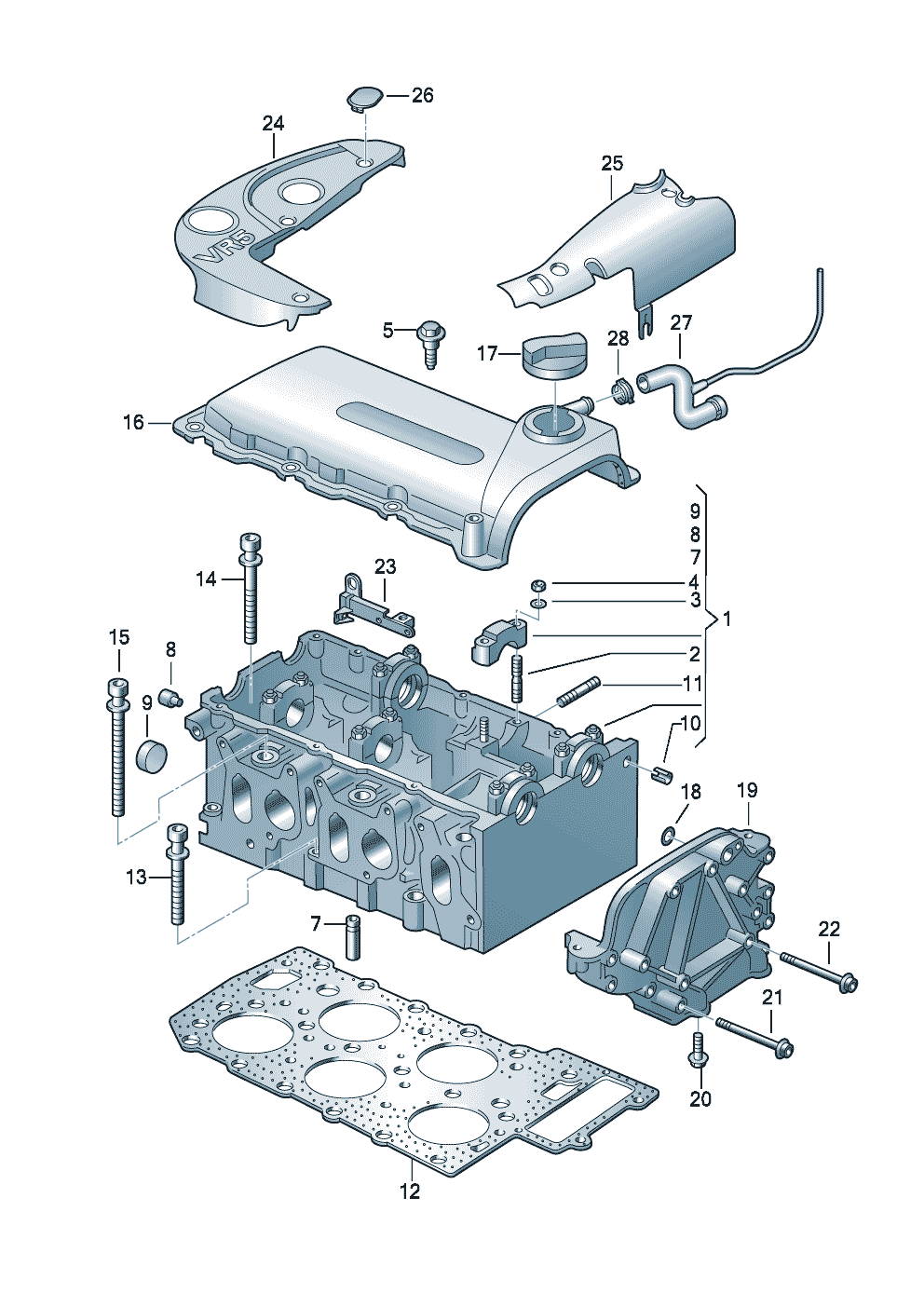

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Cylinder headcylinder head cover 2.3 ltr. 5-cylinder+AGZ 2.3 ltr. AGZ	—
(1)	Cylinder head with valvesand camshaft use if required: 113 101 122 A 113 101 122 A	071 103 265 X
(8)	Bungs 9,0/9,5 9,0/9,5	034 103 379
(9)	End capoversize 38 38	034 103 113 B
1	Cylinder head	071 103 351
10	spring pin 9 X 11,8 9 X 11,8	N 903 327 01
11	Threaded pin M 8 X 35 M 8 X 35	N 901 889 02
12	Cylinder head gasket	071 103 383
13	Socket head bolt with innermultipoint head M 11 X 1,5 X 85 M 11 X 1,5 X 85	021 103 384 K
14	Socket head bolt with innermultipoint head M 11 X 1,5 X 119 M 11 X 1,5 X 119	021 103 384 G
15	Socket head bolt with innermultipoint head M 11 X 1,5 X 144 M 11 X 1,5 X 144	021 103 384 L
16	cylinder head cover withgasket	071 103 469 C
17	End cap	06A 103 485 C
17	End cap	06B 103 485 C
18	O-ring 8 X 3 8 X 3	N 900 411 02
19	Cover	071 109 147 A
2	Threaded pin M 8 X 45,5 M 8 X 45,5	021 103 397
20	Socket head bolt with hexagonsocket head (combination) M 8 X 30 M 8 X 30	N 903 559 02
21	Socket head bolt with hexagonsocket head (combination) M 6 X 65 M 6 X 65	N 100 993 02
21	Socket head bolt with hexagonsocket head (combination) M 6 X 65 M 6 X 65	N 100 993 01
22	Socket head bolt with hexagonsocket head (combination) M 6 X 75 X 37 M 6 X 75 X 37	N 904 931 01
23	Suspension lug	071 103 365 C
24	cover for intake manifold see illustration: 103-077 103-077	—
27	Vent hose	071 103 474
28	Spring band clamp 27 X 15 27 X 15 Type 19 makes this →	N 016 403 1
3	Washer 8,4 X 15 X 1,6 8,4 X 15 X 1,6	N 011 558 11
4	Hexagon nut M 8 M 8	N 011 008 8
5	shouldered bolt	021 103 829 A
7	Valve guide 38 MM 38 MM	027 103 419
8	Bungs 8,9 8,9	035 103 379
9	End cap 36,6 36,6	059 103 113
9	End cap 36,6 36,6	036 103 113 A

Reproduction parts by Type 19 for this diagram

Volkswagen no longer supplies one part on this plate. Type 19 manufactures it to the factory number.

Mk2 Golf Engine Hose Clamps Factory number on this diagram: N 016 403 1

From the Type 19 workshop

Volkswagen Golf Mk4 work in the Type 19 workshop — the same cars these engine diagrams are drawn from.

Volkswagen OEM Parts Catalogues and Torque reference manuals! Get amongst it. Volkswagen OEM Parts Catalogues and Torque reference manuals from Type 19 Specialists — the printed editions the free catalogue pages are drawn from.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk4
Model years: 1998
Generation region: RDW
Generation code: 203
Engine codes on this plate: AGZ
Factory group: 01 Engine
Factory subgroup: 103060
