Which Mk4 Golf years and engines does this diagram cover?

This plate is from the Mk4 Golf 1998 generation (RDW). The parts on it carry the engine codes AHW, AKQ, APE, ATN, AUS, AXP and AZD.

Where is the complete Mk4 Golf factory parts catalogue?

The Mk4 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk4-mechanical/. It carries every plate in this catalogue, not just this one.

2001 repair kit for toothed belt with tensioning roller — Mk4 Golf Engine (1998)

Factory title: Volkswagen Golf/Golf R32 (1998 - 2001) - Repair kit for toothed belt with tensioning roller

Generation: Mk4 1998 (RDW) Group: Engine Rebuild step 1 Parts: 35 Primary OEM: 036 109 101 AC, 036 109 101 DE, 036 109 101 AA

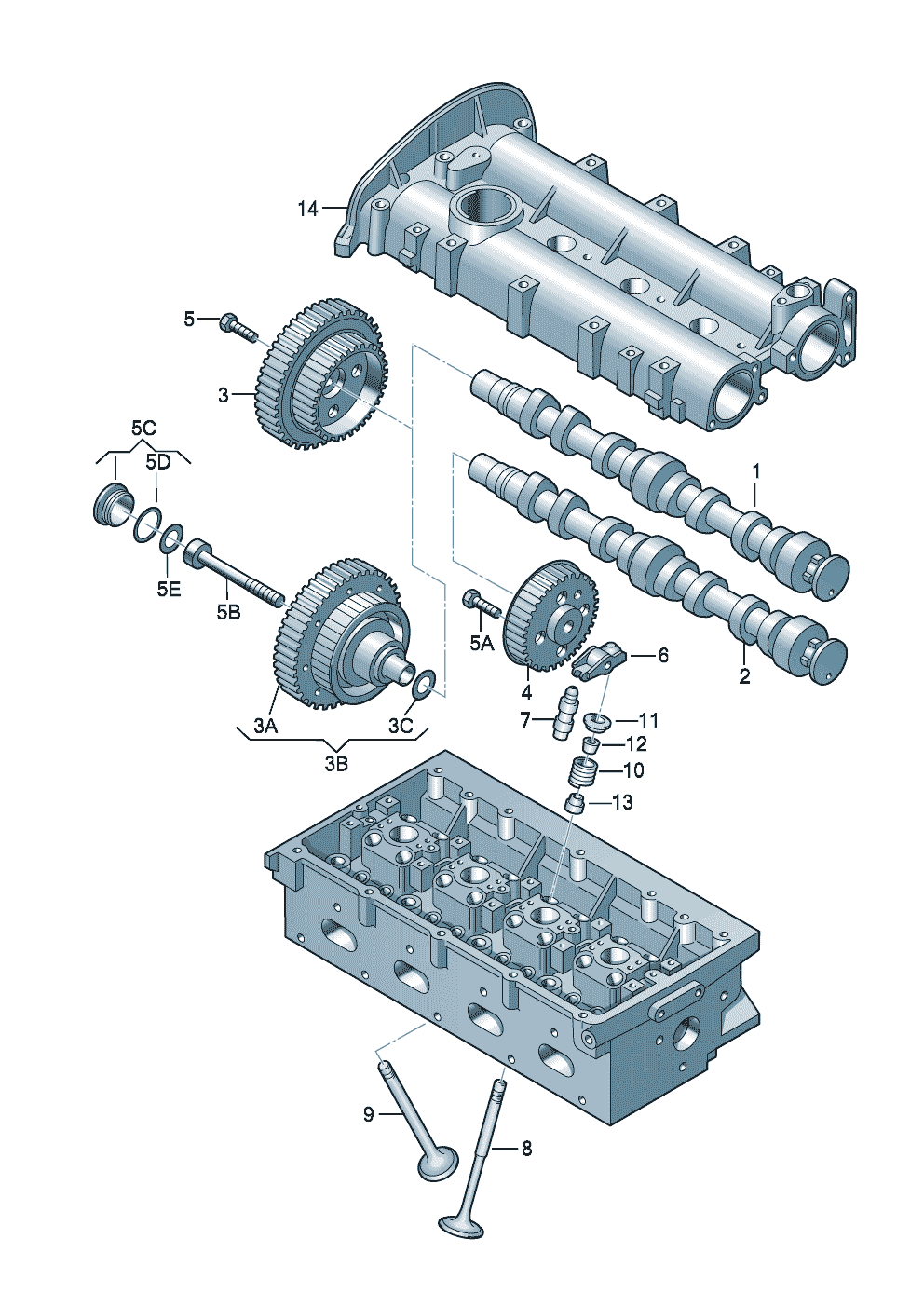

2001 repair kit for toothed belt with tensioning roller for the Volkswagen Golf Mk4 (1998): factory exploded diagram 109002 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 33 OEM part numbers across 35 catalogued positions including 036 109 101 AC, 036 109 101 DE and 036 109 101 AA. Parts on this plate carry the engine codes AHW, AKQ, APE, ATN, AUS, AXP and AZD. Published by Type 19 Specialists; the complete Mk4 Golf catalogue is in print as the Mk4 Golf Master Parts Catalogue.

Parts on this diagram

This Mk4 Golf plate lists 33 OEM part numbers across 35 numbered positions.

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	camshaft, valves 1.4/1.6 ltr. 4-cylinder+AHW,AKQ,APE,AXP,ATN,AUS,AZD 1.4/1.6 ltr. AHWAKQAPEAXPATNAUSAZD	—
(1)	Camshaft M >> AXP 069 999	036 109 101 AC
(1)	Camshaft ATN,AUS,AZD ATNAUSAZD	036 109 101 DE
(1)	Camshaft ATN,AUS,AZD ATNAUSAZD	036 109 101 AA
(1)	Camshaft F >> 1 J-Y-900 000 APE APE	036 109 101 AC
(1)	Camshaft F >> 1 J-Y-900 000 APE APE	036 109 101 DG
(1)	Camshaft AXP AXP	036 109 101 CG
(1)	Camshaft F 1 J-1-000 001>> APE APE	036 109 101 CG
(3)	toothed belt pulley Z=48/33 APE,AXP,ATN,AUS,AZD Z=48/33 APEAXPATNAUSAZD	036 109 111 Q
(3)	toothed belt pulley M AHW 164 201>>M AKQ 241 245>> Z=48/33 Z=48/33	036 109 111 F
(3)	toothed belt pulley M AHW 164 201>>M AKQ 241 245>> Z=48/33 Z=48/33	036 109 111 Q
(3)	toothed belt pulley Z=48/33 APE,AXP,ATN,AUS,AZD Z=48/33 APEAXPATNAUSAZD	036 109 111 F
(4)	toothed belt pulley M AHW 164 201>>M AKQ 241 245>> Z=33 Z=33	036 109 111 G
(4)	toothed belt pulley Z=33 APE,AXP,ATN,AUS,AZD Z=33 APEAXPATNAUSAZD	036 109 111 G
1	Camshaft AHW,AKQ AHWAKQ	036 109 101 DG
1	Camshaft AHW,AKQ AHWAKQ	036 109 101 AC
10	Valve spring	036 109 623 H
11	spring disc	036 109 641 B
12	cotter, split	036 109 651 A
13	Valve stem seal 6 MM 6 MM	036 109 675 A
13	Valve stem seal	036 109 675
14	cylinder head cover see illustration: 103-035 103-035	—
2	Camshaft AHW,AKQ,APE,AXP,ATN,AUS,AZD AHWAKQAPEAXPATNAUSAZD	036 109 101 DE
2	Camshaft AHW,AKQ,APE,AXP,ATN,AUS,AZD AHWAKQAPEAXPATNAUSAZD	036 109 101 AA
3	toothed belt pulley M >> AHW 164 200 M >> AKQ 241 244 Z=48/33 Z=48/33	036 109 111 C
4	toothed belt pulley M >> AHW 164 200 M >> AKQ 241 244 Z=33 Z=33	036 109 111 D
5	Hexagon bolt M 10 X 1,25 X 30 M 10 X 1,25 X 30	N 902 562 01
5A	Hexagon bolt M 10 X 1,25 X 30 M 10 X 1,25 X 30	N 902 562 01
6	roller rocker arm	036 109 411 D
6	roller rocker arm	036 109 411
7	equalizing element, hydraulic	036 109 423 A
7	equalizing element, hydraulic	030 109 423
8	Inlet valve 100,6 100,6	036 109 601 S
8	Inlet valve 100,6 100,6	036 109 601 AL
9	exhaust valve 100,9 100,9	036 109 611 K

From the Type 19 workshop

Volkswagen Golf Mk4 work in the Type 19 workshop — the same cars these engine diagrams are drawn from.

Volkswagen OEM Parts Catalogues and Torque reference manuals! Get amongst it. Volkswagen OEM Parts Catalogues and Torque reference manuals from Type 19 Specialists — the printed editions the free catalogue pages are drawn from.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk4
Model years: 1998
Generation region: RDW
Generation code: 203
Engine codes on this plate: AHW, AKQ, APE, ATN, AUS, AXP, AZD
Variant tags: petrol_8v_base
Factory group: 01 Engine
Factory subgroup: 109002
