2001 repair kit for toothed belt with tensioning roller — Mk4 Golf Engine (1998)

Factory title: Volkswagen Golf/Golf R32 (1998 - 2001) - Repair kit for toothed belt with tensioning roller

Generation: Mk4 1998 (RDW) Group: Engine Rebuild step 1 Parts: 20 Primary OEM: 022 109 601 F, 022 109 611 B, 022 109 623 G

2001 repair kit for toothed belt with tensioning roller for the Volkswagen Golf Mk4 (1998): factory exploded diagram 109037 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 18 OEM part numbers across 20 catalogued positions including 022 109 601 F, 022 109 611 B and 022 109 623 G. Parts on this plate carry the engine code AQN. Published by Type 19 Specialists; the complete Mk4 Golf catalogue is in print as the Mk4 Golf Master Parts Catalogue.

Parts on this diagram

This Mk4 Golf plate lists 18 OEM part numbers across 20 numbered positions.

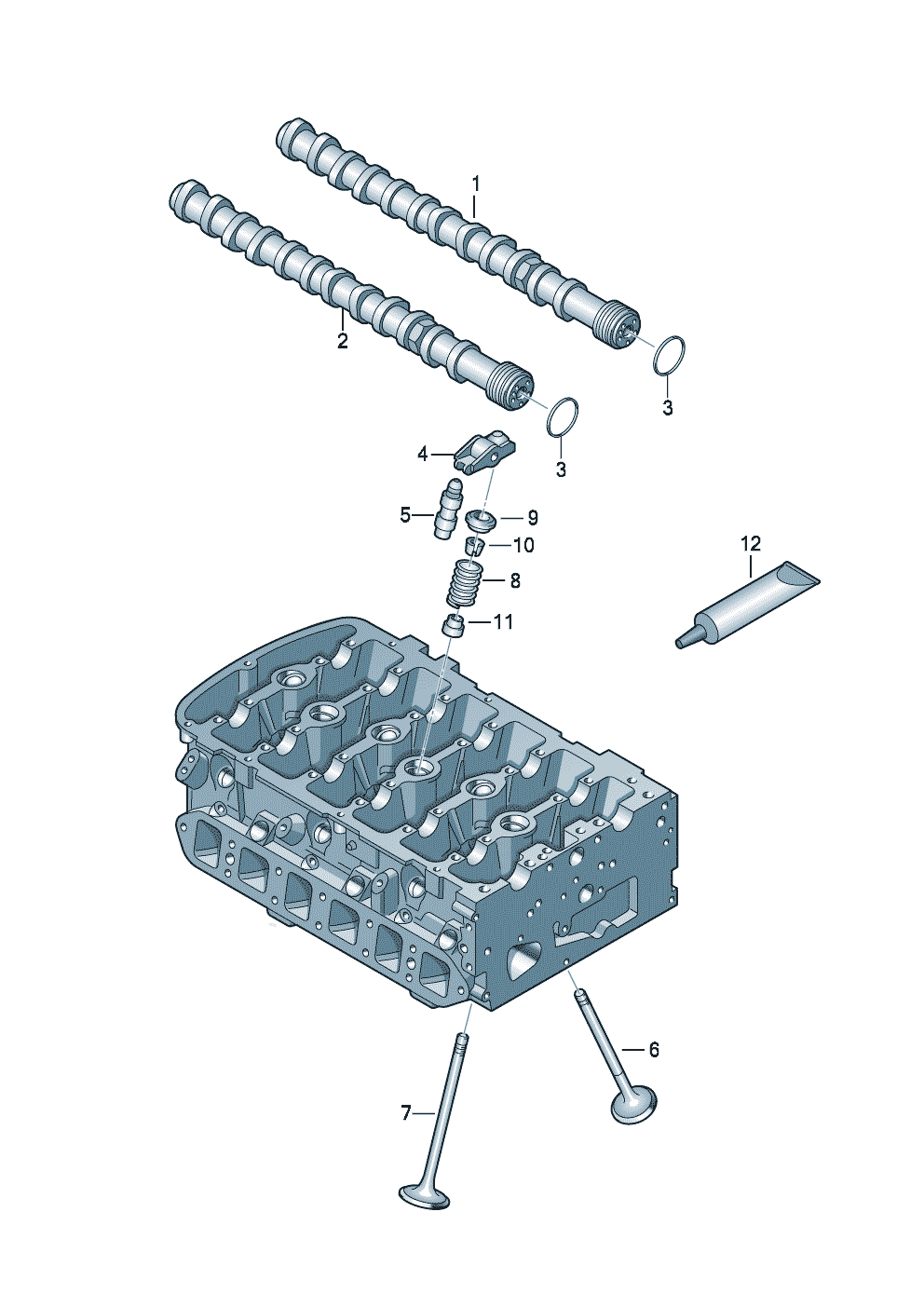

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	camshaft, valves 5-cylinder+20 V	—
	camshaft, valves 2.3 ltr. 5-cylinder+AQN 2.3 ltr. AQN	—
(6)	Inlet valve 136 136	022 109 601 F
(7)	exhaust valve 102 102	022 109 611 B
(8)	Valve spring M AQN 002 722>>	022 109 623 G
(8)	Valve spring M AQN 002 722>>	022 109 623 E
1	Camshaft	066 109 101 E
10	cotter, split	036 109 651 A
11	Valve stem seal 6 MM 6 MM	036 109 675
11	Valve stem seal 6 MM 6 MM	036 109 675 A
12	molypaste,lubricating paste	G 052 723 A2
2	Camshaft	066 109 102 C
3	seal ring 40 X 1,5 40 X 1,5	066 109 345 A
4	roller rocker arm	022 109 417 C
5	equalizing element, hydraulic	022 109 423 C
5	equalizing element, hydraulic	022 109 423
6	Inlet valve 102 102	022 109 601 E
7	exhaust valve 136 136	022 109 611 C
8	Valve spring M >> AQN 002 721	022 109 623 D
9	spring disc	022 109 641 B
