2001 repair kit for toothed belt with tensioning roller — Mk4 Golf Engine (1998)

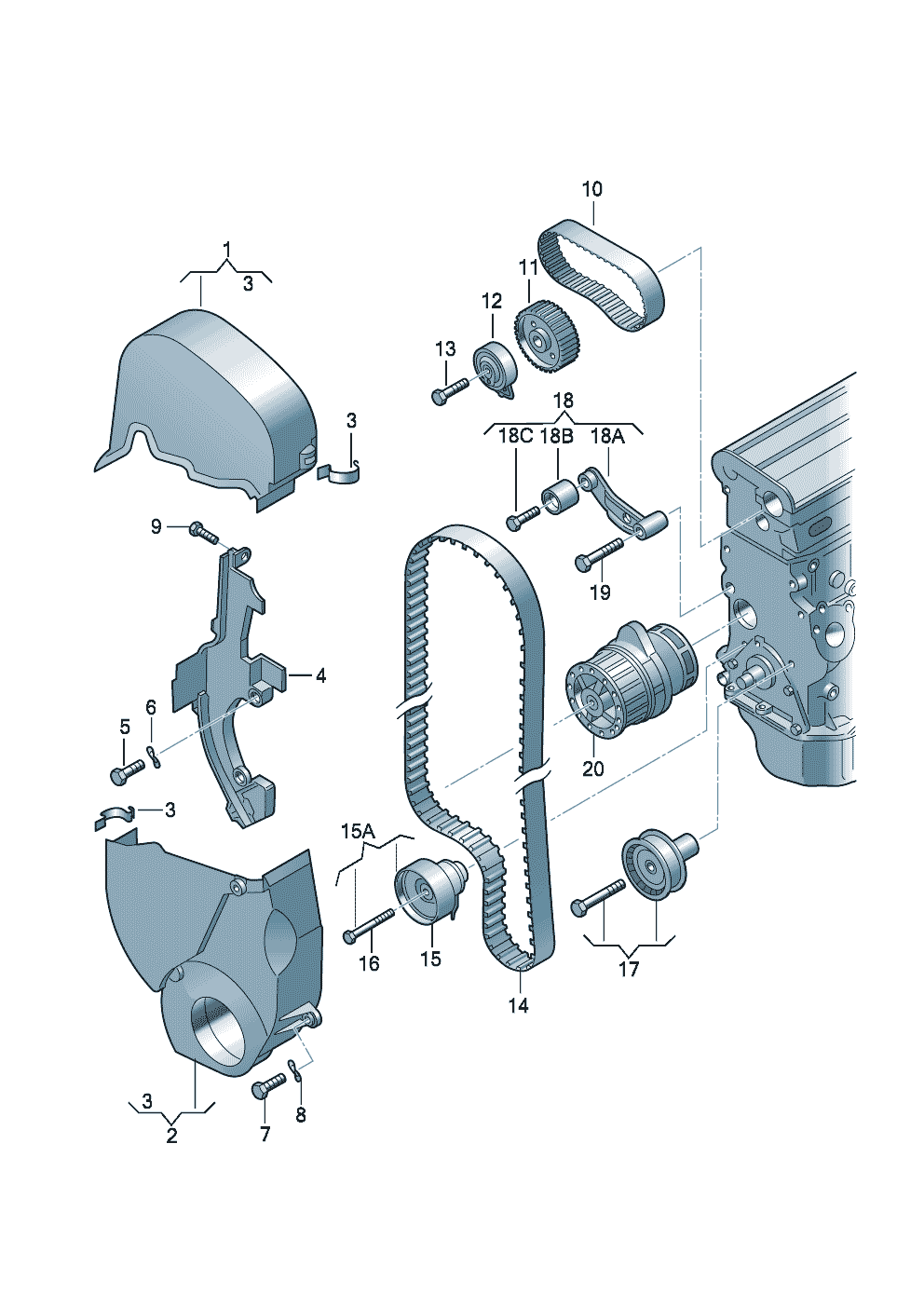

Factory title: Volkswagen Golf/Golf R32 (1998 - 2001) - Repair kit for toothed belt with tensioning roller
2001 repair kit for toothed belt with tensioning roller for the Volkswagen Golf Mk4 (1998): factory exploded diagram 109052 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 25 OEM part numbers across 28 catalogued positions including 036 109 243 K, 036 109 243 AE and N 010 218 10. Parts on this plate carry the engine codes AHW, AKQ, APE, ATN, AUS, AXP and AZD. Published by Type 19 Specialists; the complete Mk4 Golf catalogue is in print as the Mk4 Golf Master Parts Catalogue.
Parts on this diagram
This Mk4 Golf plate lists 25 OEM part numbers across 28 numbered positions.
| № | Description | Part number |
|---|---|---|
| toothed belt Toothed belt guard 1.4/1.6 ltr. 4-cylinder+AHW,AKQ,APE,AXP,ATN,AUS,AZD 1.4/1.6 ltr. AHWAKQAPEAXPATNAUSAZD | — | |
| (12) | Tensioning roller M AHW 164 201>>M AKQ 241 245>> | 036 109 243 K |
| (12) | Tensioning roller APE,AXP,ATN,AUS,AZD APEAXPATNAUSAZD | 036 109 243 K |
| (12) | Tensioning roller APE,AXP,ATN,AUS,AZD APEAXPATNAUSAZD | 036 109 243 AE |
| (12) | Tensioning roller M AHW 164 201>>M AKQ 241 245>> | 036 109 243 AE |
| (7) | Hexagon bolt M 6 X 25 ATN,AUS,AZD M 6 X 25 ATNAUSAZD | N 010 218 10 |
| 1 | Toothed belt guard | 036 109 121 G |
| 1 | Toothed belt guard | 036 109 121 Q |
| 10 | toothed belt Z=58 Z=58 | 036 109 119 P |
| 11 | toothed belt pulley see illustration: 109-002 109-002 | — |
| 12 | Tensioning roller M >> AHW 164 200 M >> AKQ 241 244 | 036 109 243 F |
| 13 | Hex collared bolt M 8 X 45 M 8 X 45 | N 102 683 02 |
| 14 | toothed belt Z=130 Z=130 | 036 109 119 Q |
| 15A | Tensioning roller | 036 109 243 AD |
| 15A | Tensioning roller | 036 109 243 R |
| 16 | Hexagon bolt M >> AHW 265 000*M >> AKQ 262 000*M >> APE 046 000* M 8 X 68 M 8 X 68 | N 907 981 01 |
| 17 | idler pulley | 036 109 244 D |
| 17 | idler pulley | 036 109 244 J |
| 18 | BRACKET FOR idler pulley | 036 109 181 A |
| 19 | bolt, hex. hd. with shoulder,self-locking M 10 X 55 X 32 M 10 X 55 X 32 | N 905 969 06 |
| 2 | Toothed belt guard | 036 109 127 G |
| 2 | Toothed belt guard | 036 109 127 AA |
| 20 | Coolant pump see illustration: 121-22/-23 121-22/-23 | — |
| 3 | Spring clip | 026 109 150 A |
| 4 | Cover | 036 109 170 M |
| 5 | Socket head bolt with hexagonsocket head (combination) M 8 X 35 M 8 X 35 | N 902 156 02 |
| 7 | Hexagon bolt M 6 X 30 AHW,AKQ,APE,AXP M 6 X 30 AHWAKQAPEAXP | N 010 220 12 |
| 9 | Hexagon bolt M 6 X 16 M 6 X 16 | N 010 287 3 |
From the Type 19 workshop
Volkswagen Golf Mk4 work in the Type 19 workshop — the same cars these engine diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk4
- Model years
- 1998
- Generation region
- RDW
- Generation code
- 203
- Engine codes on this plate
- AHW, AKQ, APE, ATN, AUS, AXP, AZD
- Variant tags
- petrol_8v_base
- Factory group
- 01 Engine
- Factory subgroup
- 109052
Related factory diagrams
Other published engine plates for the Mk4 Golf in this catalogue.
The complete Mk4 Golf parts catalogue in print
Questions about this diagram
- Which VW part numbers are on the 2001 repair kit for toothed belt with tensioning roller diagram for the Mk4 Golf?
- This diagram lists 25 OEM part numbers for the Mk4 Golf. The first three are 036 109 243 K, 036 109 243 AE and N 010 218 10.
- Which Mk4 Golf years and engines does this diagram cover?
- This plate is from the Mk4 Golf 1998 generation (RDW). The parts on it carry the engine codes AHW, AKQ, APE, ATN, AUS, AXP and AZD.
- Where is the complete Mk4 Golf factory parts catalogue?
- The Mk4 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk4-mechanical/. It carries every plate in this catalogue, not just this one.
