2001 repair kit for toothed belt with tensioning roller — Mk4 Golf Engine (1998)
Factory title: Volkswagen Golf/Golf R32 (1998 - 2001) - Repair kit for toothed belt with tensioning roller

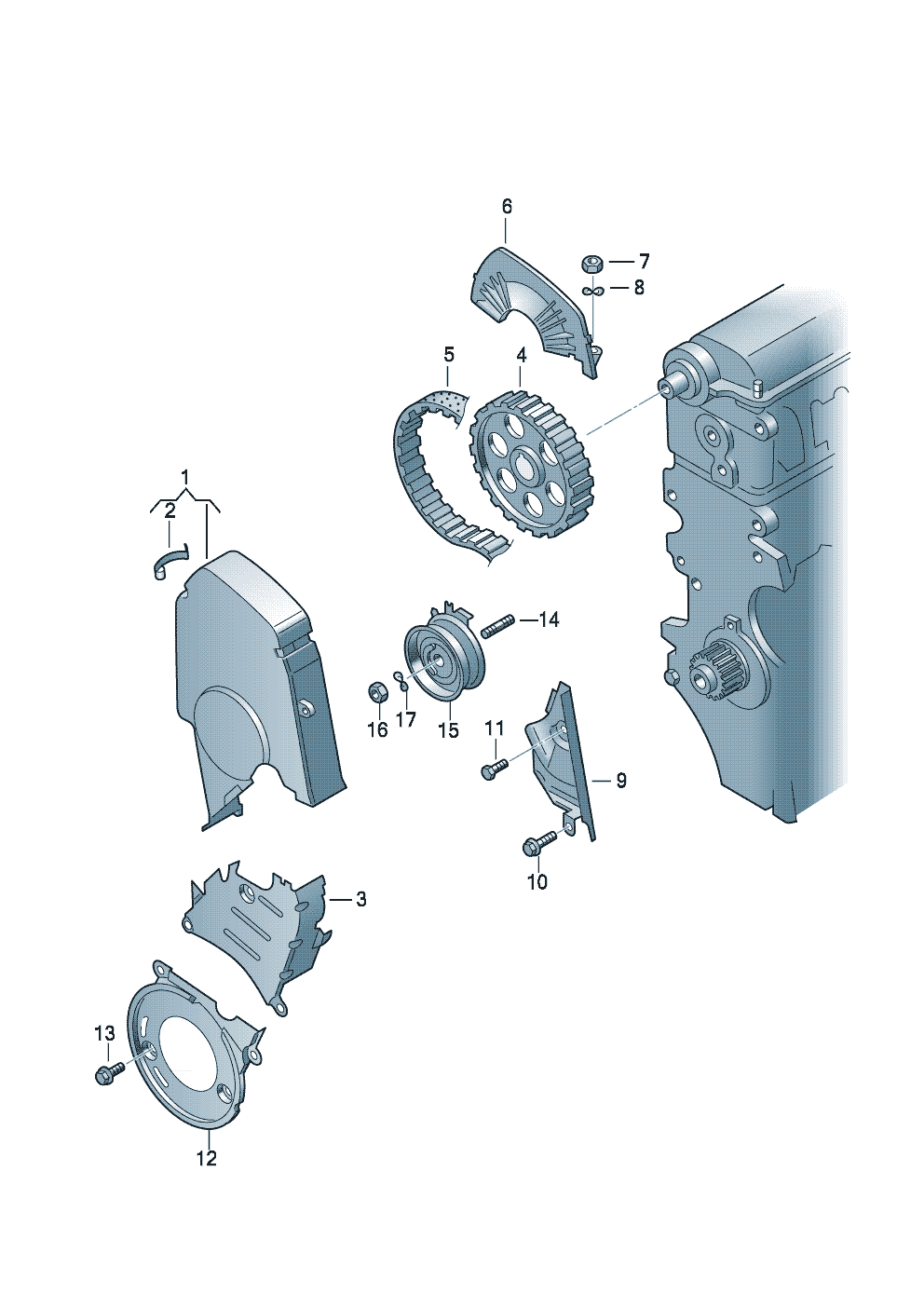

2001 repair kit for toothed belt with tensioning roller for the Volkswagen Golf Mk4 (1998): factory exploded diagram 109060 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 23 OEM part numbers across 25 catalogued positions including 06A 109 108 S, 06A 109 108 B and 06A 109 108 T. Parts on this plate carry the engine codes AEH, AKL, APF, APK, AQY and AZH. Published by Type 19 Specialists; the complete Mk4 Golf catalogue is in print as the Mk4 Golf Master Parts Catalogue.
Parts on this diagram
This Mk4 Golf plate lists 23 OEM part numbers across 25 numbered positions.
| № | Description | Part number |
|---|---|---|
| toothed belt Toothed belt guard 1.6/2.0 Ltr. 4-cylinder+AEH,AKL,APF,AQY,APK,AZH 1.6/2.0 Ltr. AEHAKLAPFAQYAPKAZH | — | |
| 1 | Toothed belt guard | 06A 109 108 S |
| 1 | Toothed belt guard | 06A 109 108 B |
| 1 | Toothed belt guard | 06A 109 108 T |
| 10 | hexagon socket head bolt withshoulder M 7 X 21,5 M 7 X 21,5 | N 909 450 01 |
| 11 | Hexagon bolt M 8 X 16 M 8 X 16 | N 010 293 5 |
| 11 | Hexagon bolt M 8 X 16 M 8 X 16 | N 010 293 16 |
| 12 | Toothed belt guard | 06A 109 175 B |
| 13 | Hex collared bolt M 6 X 12 M 6 X 12 | N 101 563 07 |
| 14 | Threaded pin M 10 XM 8 X 62 M 10 XM 8 X 62 | N 014 408 3 |
| 15 | Tensioning roller AEH,AKL,AQY,APF,APK,AZH AEHAKLAQYAPFAPKAZH | 06A 109 479 C |
| 15 | Tensioning roller AEH,AKL,AQY,APF,APK,AZH AEHAKLAQYAPFAPKAZH | 06A 109 479 B |
| 15 | Tensioning roller | 06A 109 479 F |
| 16 | Hexagon nut M 8 M 8 | N 011 008 30 |
| 16 | Hexagon nut M 8 M 8 | N 011 008 40 |
| 17 | Spring washer B 8 X 15 B 8 X 15 | N 012 241 10 |
| 2 | Spring clip | 06A 109 150 |
| 3 | Toothed belt guard | 06A 109 147 F |
| 4 | toothed belt pulley see illustration: 109-010 109-010 | — |
| 5 | toothed belt Z=138 Z=138 | 06A 109 119 C |
| 6 | Cover | 048 109 173 A |
| 6 | Cover | 048 109 173 D |
| 7 | Hexagon nut M 6 M 6 | N 011 006 24 |
| 8 | Washer 6,4 X 12,5 X 1,6 6,4 X 12,5 X 1,6 | N 011 524 23 |
| 9 | Cover | 06A 109 129 A |
From the Type 19 workshop
Volkswagen Golf Mk4 work in the Type 19 workshop — the same cars these engine diagrams are drawn from.
Fitment and applicability
What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.
- Vehicle
- Volkswagen Golf Mk4
- Model years
- 1998
- Generation region
- RDW
- Generation code
- 203
- Engine codes on this plate
- AEH, AKL, APF, APK, AQY, AZH
- Variant tags
- petrol_8v_gti_or_gl
- Factory group
- 01 Engine
- Factory subgroup
- 109060
