2001 repair kit for toothed belt with tensioning roller — Mk4 Golf Engine (1998)

Factory title: Volkswagen Golf/Golf R32 (1998 - 2001) - Repair kit for toothed belt with tensioning roller

Generation: Mk4 1998 (RDW) Group: Engine Rebuild step 1 Parts: 30 Primary OEM: 045 109 107 F, 038 109 119 L, 045 109 243 C

2001 repair kit for toothed belt with tensioning roller for the Volkswagen Golf Mk4 (1998): factory exploded diagram 109072 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 28 OEM part numbers across 30 catalogued positions including 045 109 107 F, 038 109 119 L and 045 109 243 C. Parts on this plate carry the engine codes AJM, ARL, ASZ, ATD and AUY. Published by Type 19 Specialists; the complete Mk4 Golf catalogue is in print as the Mk4 Golf Master Parts Catalogue.

Parts on this diagram

This Mk4 Golf plate lists 28 OEM part numbers across 30 numbered positions.

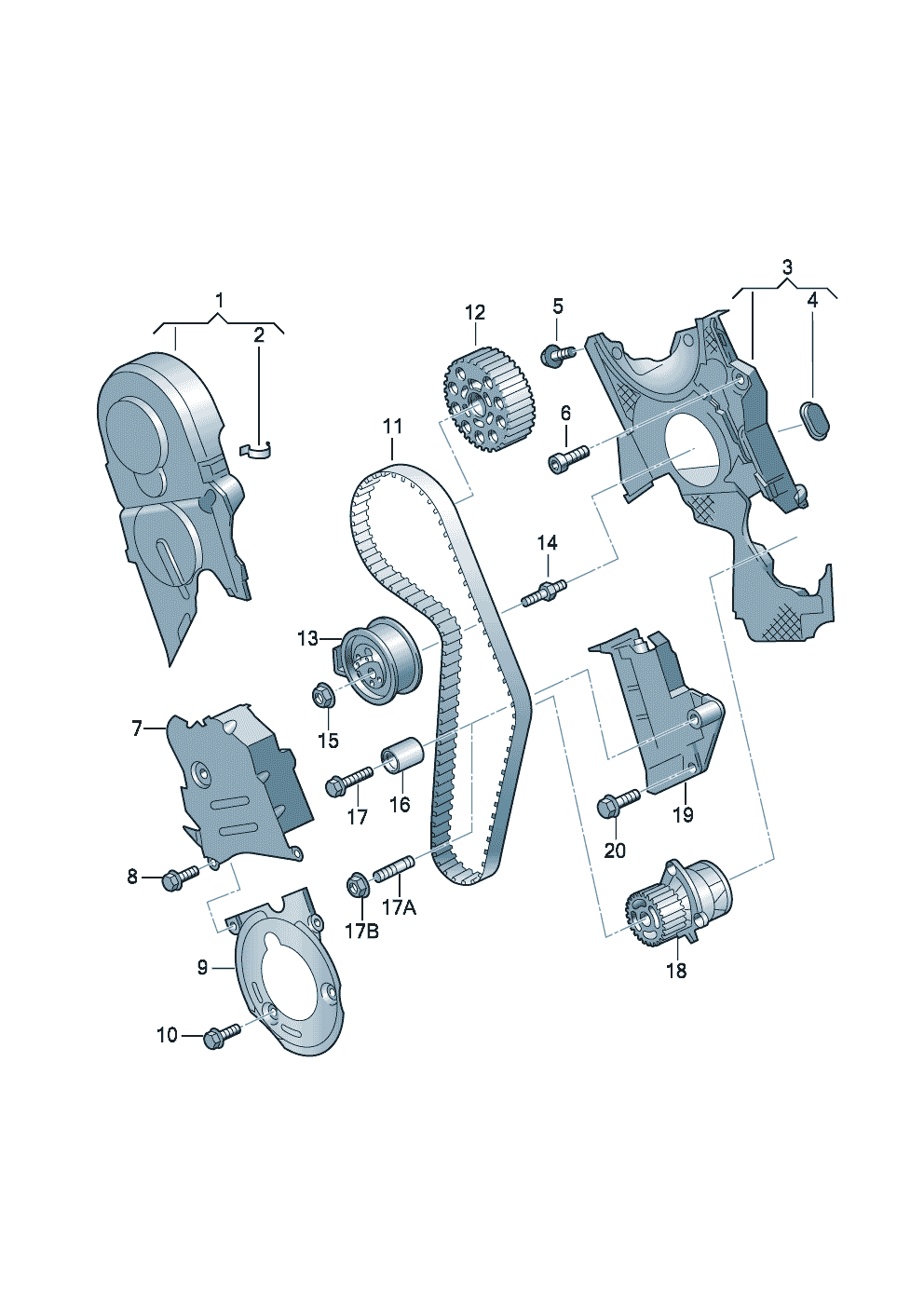

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	toothed belt Toothed belt guard 1.9 ltr. Diesel eng.+ATD,AJM,AUY,ASZ,ARL 1.9 ltr. ATDAJMAUYASZARL	—
(1)	Toothed belt guard	045 109 107 F
(11)	toothed belt F >> 1 J-1-080 000* Z=120 Z=120	038 109 119 L
(13)	Tensioning roller also use: 038 109 454 A ATD,AUY,ASZ,ARL 038 109 454 A ATDAUYASZARL	045 109 243 C
(13)	Tensioning roller M AJM 185 671>>* also use: only to be used for: 038 109 454 A 038 103 373 R 038 109 454 A 038 103 373 R	045 109 243 C
(19)	Belt tensioner damper M AJM 185 671>>* only to be used for: 038 103 373 R ATD,AUY,ASZ,ARL 038 103 373 R ATDAUYASZARL	045 109 479 B
(3)	Cover plate F >> 1 J-1-100 000*	045 109 145 A
(4)	Bungs	1E0 971 904
1	Toothed belt guard	045 109 107 E
10	hexagon head bolt (combi) M 6 X 16 M 6 X 16	N 100 829 07
11	toothed belt Z=120 Z=120	038 109 119 N
11	toothed belt Z=120 Z=120	038 109 119 P
12	toothed belt pulley see illustration: 109-032 109-032	—
13	Tensioning roller M >> AJM 185 670* also use: only to be used for: 038 109 454 A 038 103 373 C 038 109 454 A 038 103 373 C	045 109 243 B
14	Threaded pin M 10 XM 8 X 73 M 10 XM 8 X 73	N 909 055 02
15	Hexagon collar nut M 8 M 8	038 109 454 A
16	idler pulley	045 109 244 A
17	Hex collared bolt M 8 X 40 M 8 X 40	N 019 531 3
19	Belt tensioner damper M >> AJM 185 670* only to be used for: 038 103 373 C 038 103 373 C	045 109 479 C
2	Spring clip	026 109 150 A
20	hexagon socket head bolt withshoulder M 7 X 21,5 M 7 X 21,5	N 909 450 01
3	Cover plate	045 109 145 F
4	Bungs	038 971 904
5	hexagon head bolt (combi) M 6 X 16 M 6 X 16	N 100 829 07
6	Socket head bolt withhexagon socket head M 8 X 20 M 8 X 20	N 014 779 1
7	Toothed belt guard	045 109 147 A
7	Toothed belt guard	045 109 147
8	hexagon head bolt (combi) M 6 X 16 M 6 X 16	N 100 829 07
9	Toothed belt guard	06A 109 175 F
9	Toothed belt guard	038 109 175
