Which Mk4 Golf years and engines does this diagram cover?

This plate is from the Mk4 Golf 1998 generation (RDW). The parts on it carry the engine code AQN.

Where is the complete Mk4 Golf factory parts catalogue?

The Mk4 Golf Master Parts Catalogue is available in print and as a PDF from Type 19 Specialists at /shop/library/catalogue-mk4-mechanical/. It carries every plate in this catalogue, not just this one.

2001 repair kit for toothed belt with tensioning roller — Mk4 Golf Engine (1998)

Factory title: Volkswagen Golf/Golf R32 (1998 - 2001) - Repair kit for toothed belt with tensioning roller

Generation: Mk4 1998 (RDW) Group: Engine Rebuild step 1 Parts: 30 Primary OEM: 021 109 465 B, 066 109 511 D, 066 109 507 D

2001 repair kit for toothed belt with tensioning roller for the Volkswagen Golf Mk4 (1998): factory exploded diagram 109082 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 27 OEM part numbers across 30 catalogued positions including 021 109 465 B, 066 109 511 D and 066 109 507 D. Parts on this plate carry the engine code AQN. Published by Type 19 Specialists; the complete Mk4 Golf catalogue is in print as the Mk4 Golf Master Parts Catalogue.

Parts on this diagram

This Mk4 Golf plate lists 27 OEM part numbers across 30 numbered positions.

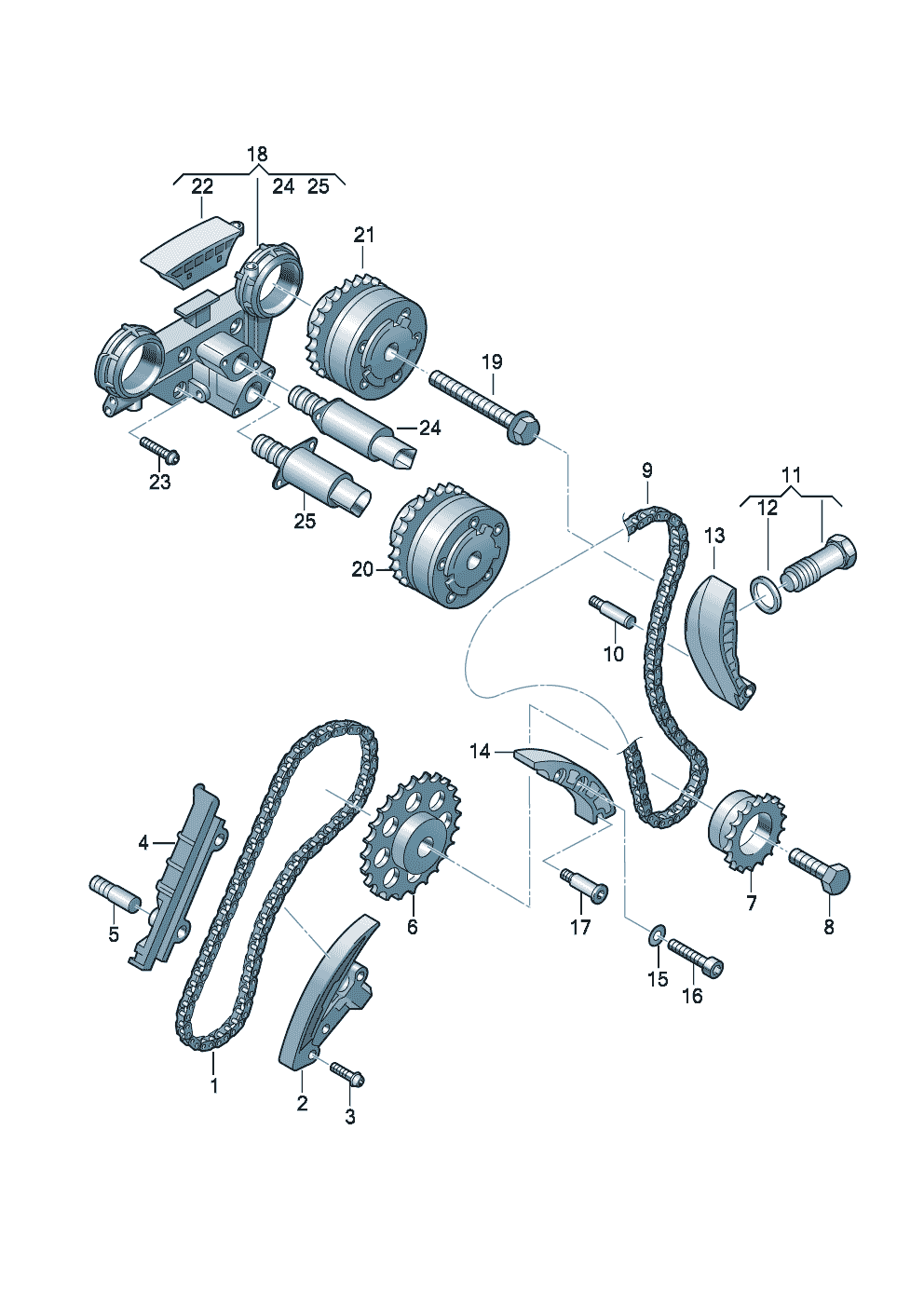

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	timing chainslide rail 2.3 ltr. 5-cylinder+AQN 2.3 ltr. AQN	—
1	timing chain	021 109 465 B
10	Pin	066 109 511 D
11	chain tensioner	066 109 507 D
11	chain tensioner	066 109 507
12	seal ring 22 X 27 22 X 27	N 013 827 1
13	chain tensioner	066 109 509 A
14	slide rail	066 109 513 A
14	slide rail	066 109 513
15	Washer 8,4 X 16 X 1,6 8,4 X 16 X 1,6	N 011 525 27
15	Washer 8,4 8,4	N 011 525 13
16	Socket head bolt withhexagon socket head M 8 X 45 M 8 X 45	N 014 715 4
17	Pin 10 X 29 X 40 10 X 29 X 40	071 109 515
18	timing case	066 109 210 M
18	timing case	066 109 210 D
19	Hex collared bolt M 12 X 1,5 X 85 M 12 X 1,5 X 85	N 104 883 02
2	chain tensioner	021 109 467
20	camshaft adjuster unit	066 109 087 C
21	camshaft adjuster unit	066 109 088 C
22	slide rail	066 109 514
23	Hex socket head bolt (combi) M 6 X 30 M 6 X 30	N 909 658 01
24	control valve see illustration: 919-050 919-050	—
25	control valve see illustration: 919-050 919-050	—
3	Socket head bolt withhexagon socket head M 6 X 24 M 6 X 24	N 905 350 01
4	slide rail	021 109 469
5	Pin	021 109 471
6	Chain sprocket Z=32 Z=32	021 109 569
7	Chain sprocket Z=18 Z=18	066 109 570
8	Hexagon bolt M 12 X 1,5 X 40 M 12 X 1,5 X 40	N 102 038 03
9	timing chain	066 109 503 B

From the Type 19 workshop

Volkswagen Golf Mk4 work in the Type 19 workshop — the same cars these engine diagrams are drawn from.

Volkswagen OEM Parts Catalogues and Torque reference manuals! Get amongst it. Volkswagen OEM Parts Catalogues and Torque reference manuals from Type 19 Specialists — the printed editions the free catalogue pages are drawn from.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk4
Model years: 1998
Generation region: RDW
Generation code: 203
Engine codes on this plate: AQN
Factory group: 01 Engine
Factory subgroup: 109082
