2001 repair kit for toothed belt with tensioning roller — Mk4 Golf Engine (1998)

Factory title: Volkswagen Golf/Golf R32 (1998 - 2001) - Repair kit for toothed belt with tensioning roller

Generation: Mk4 1998 (RDW) Group: Engine Rebuild step 1 Parts: 18 Primary OEM: 06B 109 145 A, 06A 109 479 A, 06B 109 123

2001 repair kit for toothed belt with tensioning roller for the Volkswagen Golf Mk4 (1998): factory exploded diagram 109062 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 16 OEM part numbers across 18 catalogued positions including 06B 109 145 A, 06A 109 479 A and 06B 109 123. Parts on this plate carry the engine code AVU. Published by Type 19 Specialists; the complete Mk4 Golf catalogue is in print as the Mk4 Golf Master Parts Catalogue.

Parts on this diagram

This Mk4 Golf plate lists 16 OEM part numbers across 18 numbered positions.

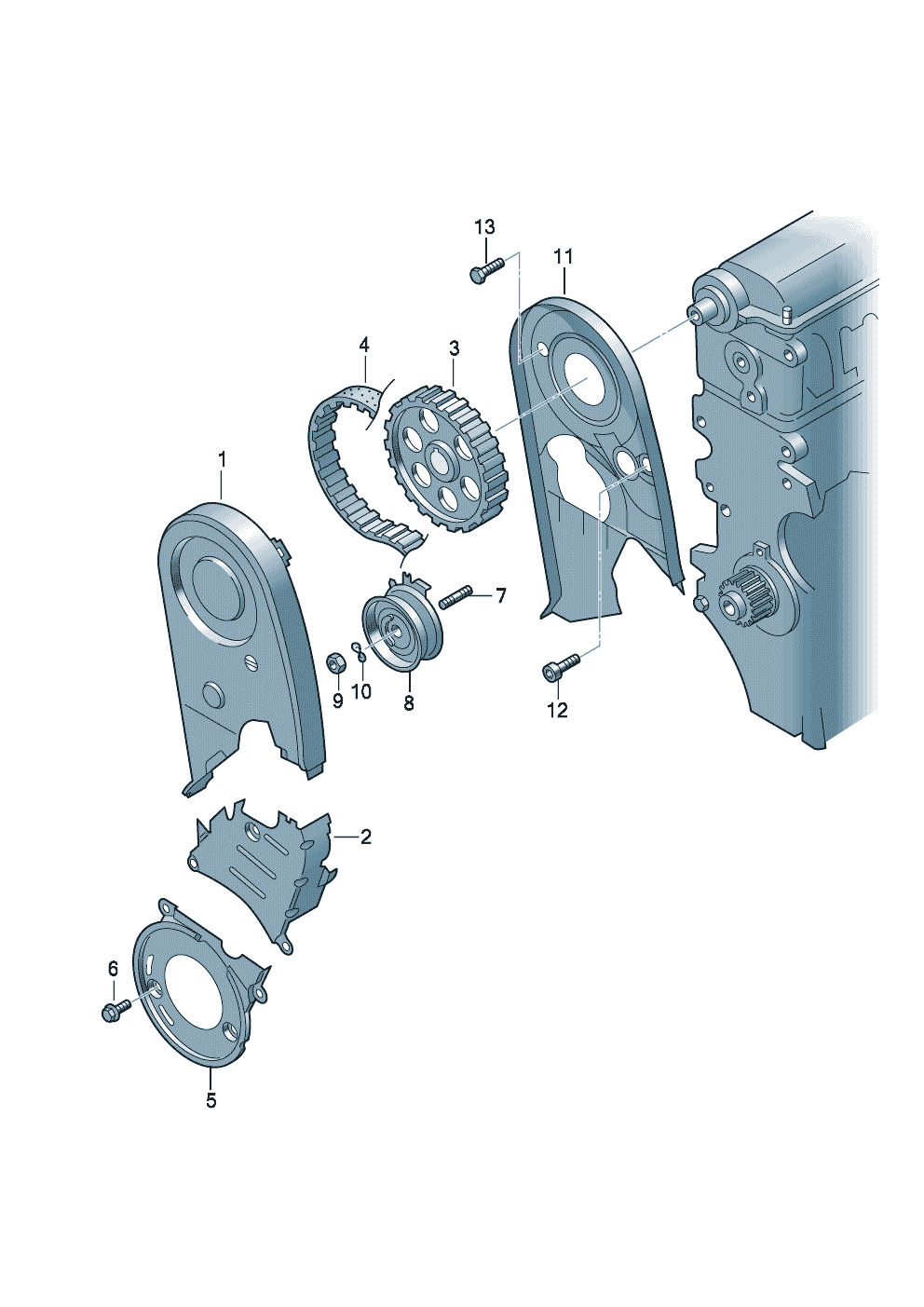

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.
№ Description Part number
toothed belt Toothed belt guard 1.6 ltr. 4-cylinder+AVU
1.6 ltr.
AVU
—
(11)
Toothed belt guard M >> AVU 048 000*
 06B 109 145 A
(8)
Tensioning roller M >> AVU 048 000*
 06A 109 479 A
1
Toothed belt guard
 06B 109 123
10
Washer 8,2 X 18 X 2
8,2 X 18 X 2
 N 901 076 04
11
Toothed belt guard
 06B 109 145 C
12
Socket head bolt withhexagon socket head M 8 X 20
M 8 X 20
 N 014 779 1
13
Hexagon bolt M 6 X 15
M 6 X 15
 N 010 215 27
2
Toothed belt guard
 06A 109 147 J
3
toothed belt pulley see illustration: 109-015
109-015
 —
4
toothed belt Z=138
Z=138
 06A 109 119 C
5
Toothed belt guard
 06A 109 175 B
6
bolt, hexagon headself-locking M 6 X 15
M 6 X 15
 N 100 515 04
7
Threaded pin M 10 XM 8 X 62
M 10 XM 8 X 62
 N 014 408 3
8
Tensioning roller also use: *>>M AVU 04800006 B 109 145 C
*>>M AVU 04800006 B 109 145 C
 06A 109 479 C
8
Tensioning roller M AVU 048 001>>*
 06A 109 479 B
9
Hexagon nut M 8.0
M 8.0
 N 011 008 30
9
Hexagon nut M 8
M 8
 N 011 008 40
