2001 vacuum pump — Mk4 Golf Engine (1998)

Factory title: Volkswagen Golf/Golf R32 (1998 - 2001) - Vacuum pump

Generation: Mk4 1998 (RDW) Group: Engine Rebuild step 1 Parts: 13 Primary OEM: 038 145 209 H, 038 145 209 K, 038 145 209 E

2001 vacuum pump for the Volkswagen Golf Mk4 (1998): factory exploded diagram 145003 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 12 OEM part numbers across 13 catalogued positions including 038 145 209 H, 038 145 209 K and 038 145 209 E. Parts on this plate carry the engine codes AJM, ARL, ASZ, ATD and AUY. Published by Type 19 Specialists; the complete Mk4 Golf catalogue is in print as the Mk4 Golf Master Parts Catalogue.

Parts on this diagram

This Mk4 Golf plate lists 12 OEM part numbers across 13 numbered positions.

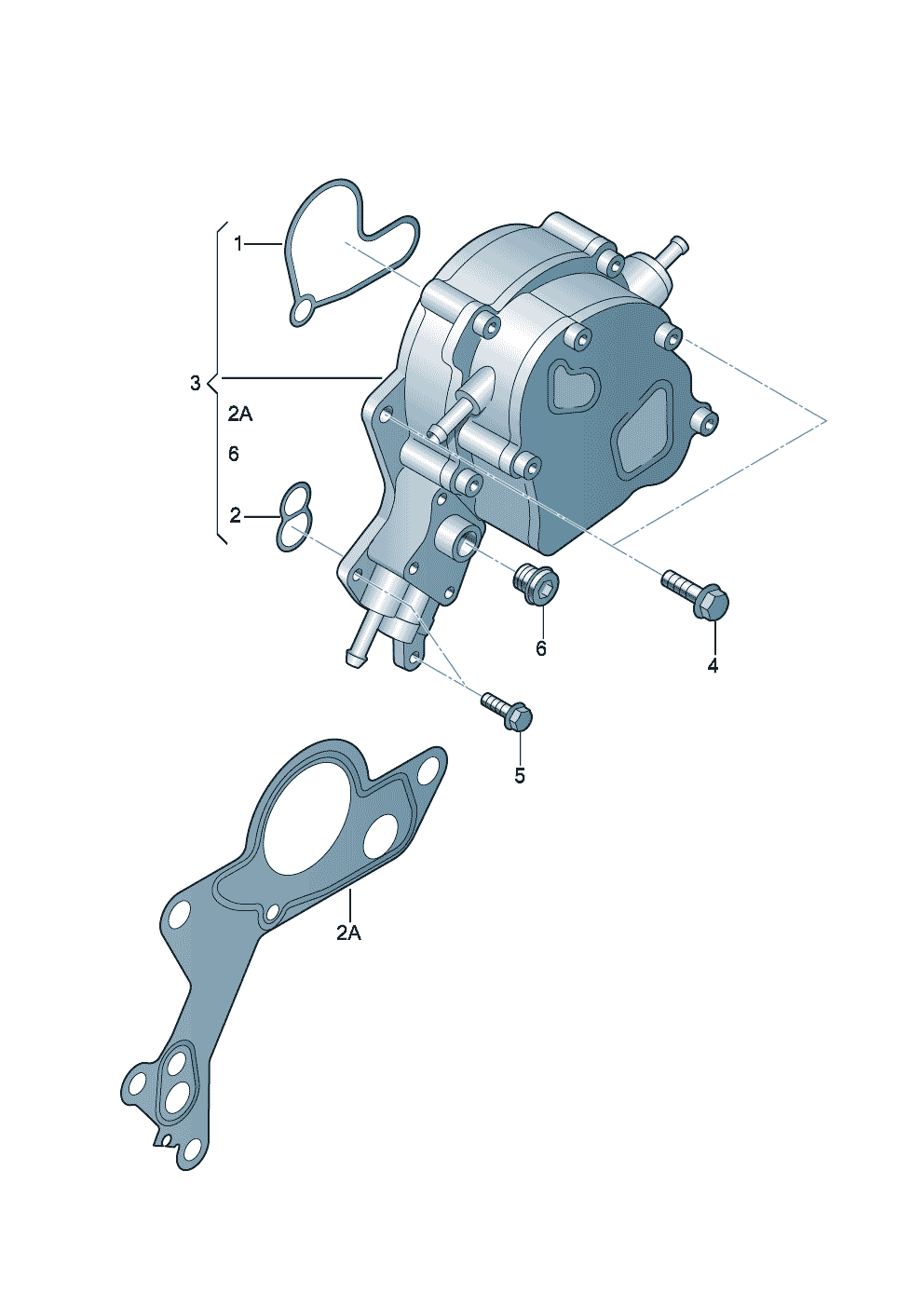

Exploded view from the factory parts catalogue. Click a row in the parts table to highlight its position on this diagram. Click any position on the diagram to scroll to its row.

№	Description	Part number
	Fuel and vacuumpump 1.9 ltr. Diesel eng.+AJM,AUY,ATD,ASZ,ARL 1.9 ltr. AJMAUYATDASZARL	—
(3)	Fuel and vacuumpump Fuel pump	038 145 209 H
(3)	Fuel and vacuumpump Fuel pump	038 145 209 K
(3)	Fuel and vacuumpump Fuel pump	038 145 209 E
1	Seal only to be used for: 038 145 209 A 038 145 209 A	038 109 293
2	Seal only to be used for: 038 145 209 A 038 145 209 A	038 109 293 A
2A	Seal only to be used for: 038 145 209 E 038 145 209 H 038 145 209 K 038 145 209 Q 038 145 209 E 038 145 209 H 038 145 209 K 038 145 209 Q	038 145 215
3	Fuel and vacuumpump	038 145 209 Q
3	Vacuum pump Fuel pump	038 145 209 A
4	Socket head bolt with hexagonsocket head (combination) M 8 X 25 M 8 X 25	N 090 378 2
4	Socket head bolt with innermultipoint head (Kombi) M 8 X 25 M 8 X 25	N 106 389 01
5	Socket head bolt with hexagonsocket head (combination) M 6 X 20 M 6 X 20	N 102 278 03
6	Seal bolt with sealingring M 12 X 1,5 X 12 M 12 X 1,5 X 12	N 909 654 01

From the Type 19 workshop

Volkswagen Golf Mk4 work in the Type 19 workshop — the same cars these engine diagrams are drawn from.

Volkswagen OEM Parts Catalogues and Torque reference manuals! Get amongst it. Volkswagen OEM Parts Catalogues and Torque reference manuals from Type 19 Specialists — the printed editions the free catalogue pages are drawn from.

Fitment and applicability

What this plate covers, as the factory catalogue records it — nothing here is inferred from the part names.

Vehicle: Volkswagen Golf Mk4
Model years: 1998
Generation region: RDW
Generation code: 203
Engine codes on this plate: AJM, ARL, ASZ, ATD, AUY
Factory group: 01 Engine
Factory subgroup: 145003
