Factory title: Volkswagen Golf/Golf R32 (1998 - 2001) - Vacuum system. intake system. Throttle valve control element

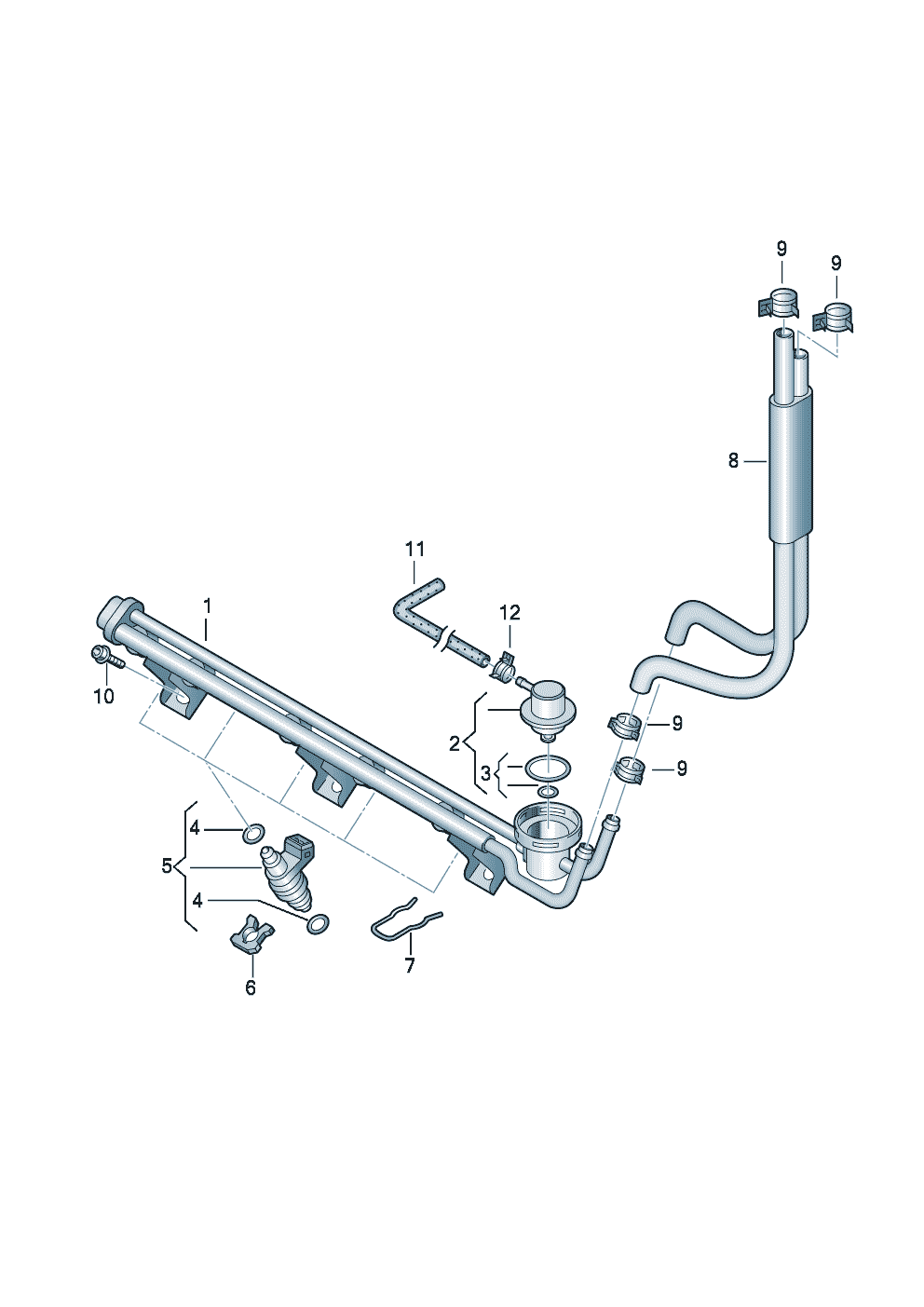

2001 vacuum system intake system throttle valve control element for the Volkswagen Golf Mk4 (1998): factory exploded diagram 133070 from the Volkswagen ETKA parts catalogue, group 01 Engine, listing 12 OEM part numbers across 14 catalogued positions including 071 133 317 A, 1J0 133 986 L and N 100 841 02. Parts on this plate carry the engine code AGZ. Published by Type 19 Specialists; the complete Mk4 Golf catalogue is in print as the Mk4 Golf Master Parts Catalogue.
Parts on this diagram
This Mk4 Golf plate lists 12 OEM part numbers across 14 numbered positions.
| № | Description | Part number |
|---|---|---|
| Fuel rail 2.3 ltr. 5-cylinder+AGZ 2.3 ltr. AGZ | — | |
| (1) | Fuel rail | 071 133 317 A |
| (8) | 1 set fuel pipes | 1J0 133 986 L |
| 10 | Socket head bolt with hexagonsocket head (combination) M 6 X 16-S 4-N M 6 X 16-S 4-N | N 100 841 02 |
| 11 | Vacuum hose see illustration, item: 133-065,21 133-065,21 | — |
| 12 | Spring band clamp 8 X 6 8 X 6 | N 102 793 01 |
| 2 | Fuel pressure regulator | 037 133 035 C |
| 3 | Gasket set for pressurecontroller | 037 198 031 |
| 4 | Gasket set for injector valve | 021 198 031 C |
| 5 | Injection valve | 021 906 031 D |
| 6 | Retaining clip | 035 906 037 |
| 7 | Retaining clip | 037 133 047 A |
| 9 | Spring band clamp A 14 X 12 A 14 X 12 | N 102 922 01 |
| 9 | Spring band clamp 14 X 12 14 X 12 | N 906 867 01 |
